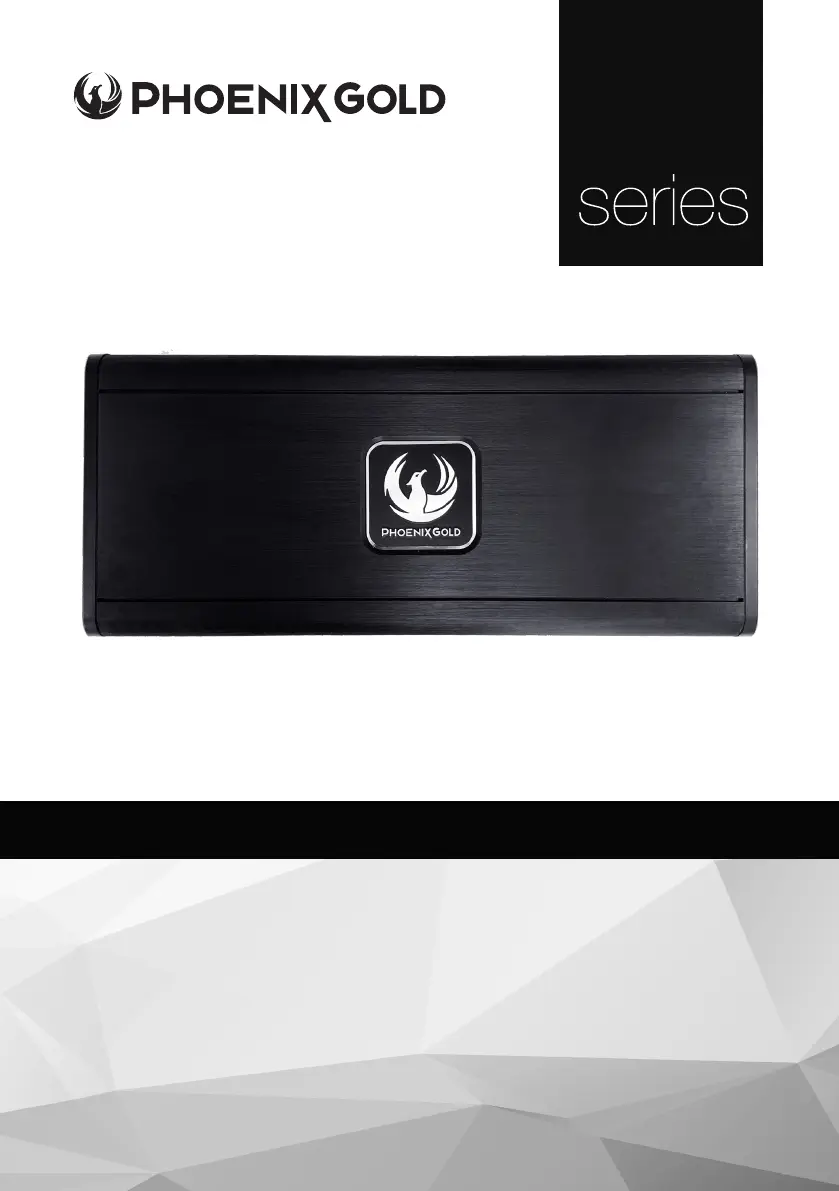

Sida 1/12
© 2021 Phoenix Gold • www.phoenixgold-eu.com
POWERFUL AND COMPACT, CLASS D AMPLIFIERS
Model: ZR6004 / ZR10001 / ZR20001
• - powers on the amp when audio signal is suppliedHigh Level Auto-Turn On
• - compatible with aftermarket/original source unitsOEM Connection Ready
• - control bass with included ZRBC Remote Bass Ready (ZR10001 & ZR20001)
• Fanless Design - regulates temperature internally for quiet operation
• - versatile connectivity to suit any vehicleHigh & Low Level Inputs
• - enables maximum current supplyHeavy Duty Connector Block
• - protection against thermal damage, 4-Way Protected Circuit
reversed power, speaker polarity and low voltage
SPECIFICATIONS
All specications subject to change without notice.
ZR
© 2021 Phoenix Gold | A Brand of AAMP Global
www.phoenixgold-eu.com
ZR6004 / ZR10001 / ZR20001 - ZR-Series Ampliers
ZR6004 ZR10001 ZR20001
Class Class D Class D Class D
Frequency
Response 20Hz-20KHz 20Hz-400Hz 20Hz-400Hz
Dims (LxWxH(mm)) 253 x 160 x 48 243 x160 x 48 383 x 160 x 48
RMS Power
Ratings
175W x 4 @ 2ohm
105W x 4 @ 4ohm
350W x 2 @ 4ohm
bridged
1015W x 1 @ 1ohm
670W x 1 @ 2ohm
385W x 1 @ 4ohm
2015W x 1 @ 1ohm
1310W x 1 @ 2ohm
740W x 1 @ 4ohm
Signal to
Noise Ratio >96dB >96dB >96dB
High & Low Pass
Crossover 12dB per Octave 24dB per Octave 24dB per Octave
Subsonic Filter N/A 12dB per Octave 12dB per Octave
Crossover
Range 40Hz-6KHz 50Hz-250Hz 50Hz-250Hz
Subsonic
Crossover Range N/A 10Hz-55Hz 10Hz-55Hz
Bass Boost
@ 45Hz N/A 0 to +18dB 0 to +18dB
Low Level
Input Range 0.2V to 10V 0.2V to 10V 0.2V to 10V
High Level
Input Range 1V to 30V 1V to 30V 1V to 30V
Minimum Load
Impedance
2ohm stereo &
4ohm bridged 1ohm 1ohm
Note:
Phoenix Gold Ampliers have a minimum load impedance
of 2ohm per channel 4ohm bridged
© 2021 Phoenix Gold • www.phoenixgold-eu.com
ZR6004 / ZR10001 / ZR20001 - ZR-Series Ampliers
Installation Warnings
1. Ensure the +12V lead is disconnected from the battery before you
connect any new equipment
2. Ensure that the amplier mounting location and holes will not interfere
with the petrol tank, brake lines or electrical wiring.
3. Ensure the amplier is securely fastened to the vehicle to prevent the
amplier moving and causing damage in the event of an accident
4. Ensure all wiring is protected from sharp objects and from pinching or
crushing which could result in damage to the audio system
5. Ensure the mounting location has sufcient air ow around the
amplier. If the amplier is mounted in an enclosed space a 3” fan
with ducting should be used to assist with cooling.
6. Do not mount any amplier on a subwoofer enclosure as extended
exposure to vibration may cause damage to the amplier.
7. Ensure the minimum recommended gauge wire/cable or larger for all
amplier connections
8. Appropriate mounting is very important for prolonged life
expectancy of any amplier. Select a location that provides
protection from moisture. Keep in mind that an amplier should never
be mounted upside down. Upside down mounting will compromise
heat dissipation through the heat sink and could engage the thermal
protection circuit.
