Rikon 50-151 Bruksanvisning
Läs nedan 📖 manual på svenska för Rikon 50-151 (20 sidor) i kategorin Sander. Denna guide var användbar för 6 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/20
www.rikontools.com
50-151M3

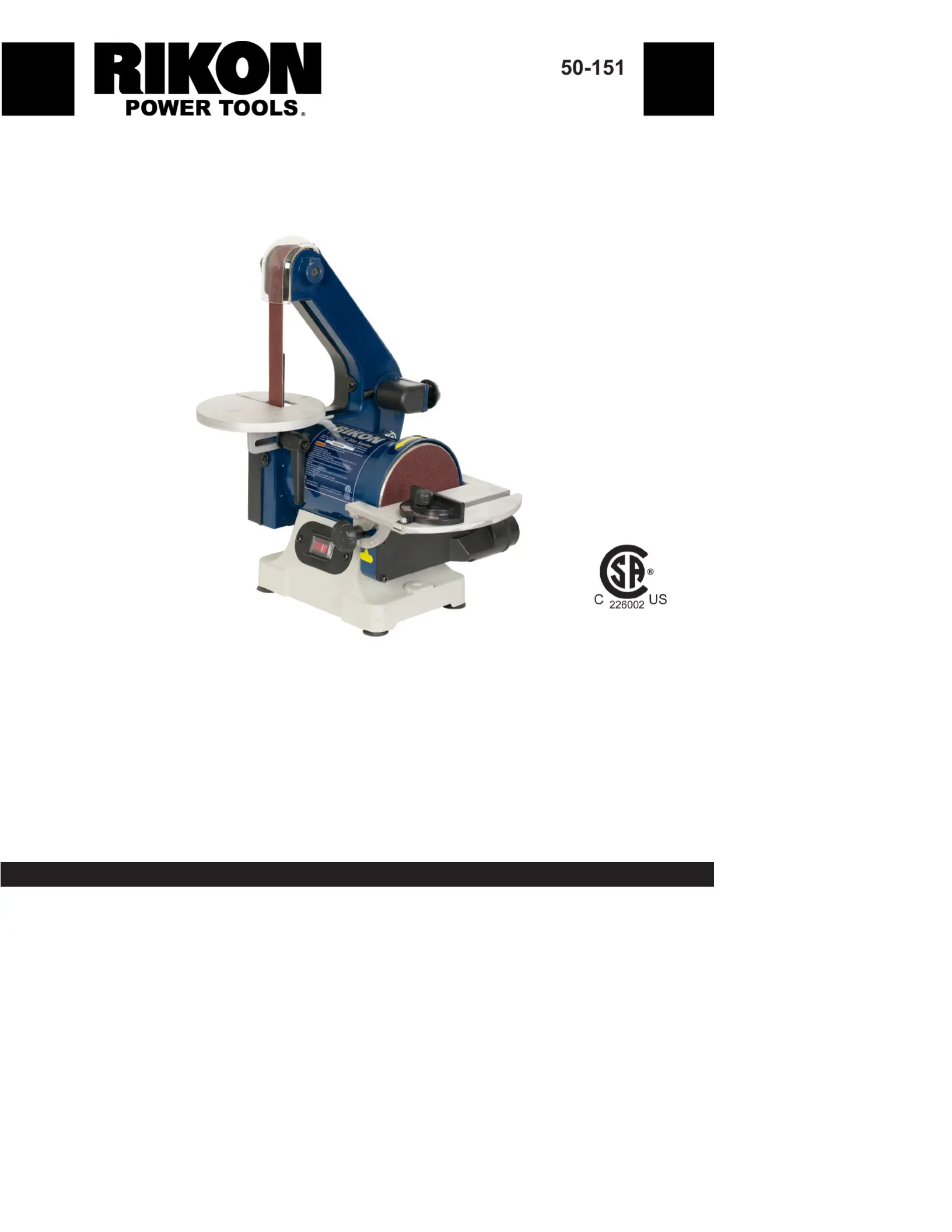

1” X 30” Belt / 5” Disc Sander
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
2
TABLE OF CONTENTS
SPECIFICATIONS
Specications ........................................................................................................................................2
Safety Instructions..............................................................................................................................3 - 6
Electrical Requirements ..............................................................................................................5, 6, 16
Sander Safety Rules .......................................................................................................................7
Contents of Package ............................................................................................................................................8
Getting to Know Your Sander .................................................................................................................................9
Assembly ...........................................................................................................................9 - 11
General Use............................................................................................................11 - 14
Maintenance ...................................................................................................................................14
Trouble Shooting........................................................................................................................................15 - 16
Wiring Diagram.................................................................................................................................16
Parts Explosion................................................................................................................................17
Parts List .....................................................................................................................................18
Warranty .............................................................................................................................................19
NOTE: The specications, photographs, drawings and information in this manual represent the current
model when the manual was prepared. Changes and improvements may be made at any time, with no
obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care
has been taken to ensure that the information in this manual is correct, to provide you with the guidelines
for the proper safety, assembly and operation of this machine.
This owner’s manual is not a teaching aid and is intended to show
assembly, adjustments, and general use.
Motor .........................................................1/3HP, 120V, 2.3A, 60Hz
Motor Speed .................................................................. 3,450 RPM
Belt Size .............................................................................. 1” x 30”
Belt Speed ................................................................... 3,270 SFPM
Belt Table Size ........................................................ 5-3/4” Diameter
Belt Table Tilt ........................................................................... 0-45°
Disc Size .............................................................................. 5” PSA
Disc Speed .................................................................... 3,450 RPM
Disc Table ...................................................................7-1/4” x 3-3/4”
Disc Table Tilt .......................................................................... 0-45°
Miter Gauge ....................................................................... Included
Miter Gauge Slot ........................................................... 1/4” x 7/16”
Machine Height .....................................................................14-5/8”
Machine Width .............................................................................15”
Machine Depth ......................................................................12-5/8”
Base Size ........................................................................ 8-1/4” x 6”
Net Weight ......................................................................... 15.5 lbs.
Shipping Weight ................................................................. 19.5 lbs.
Shipping Carton ..................................... 17-1/2” x 12-1/4” x 11-1/2”

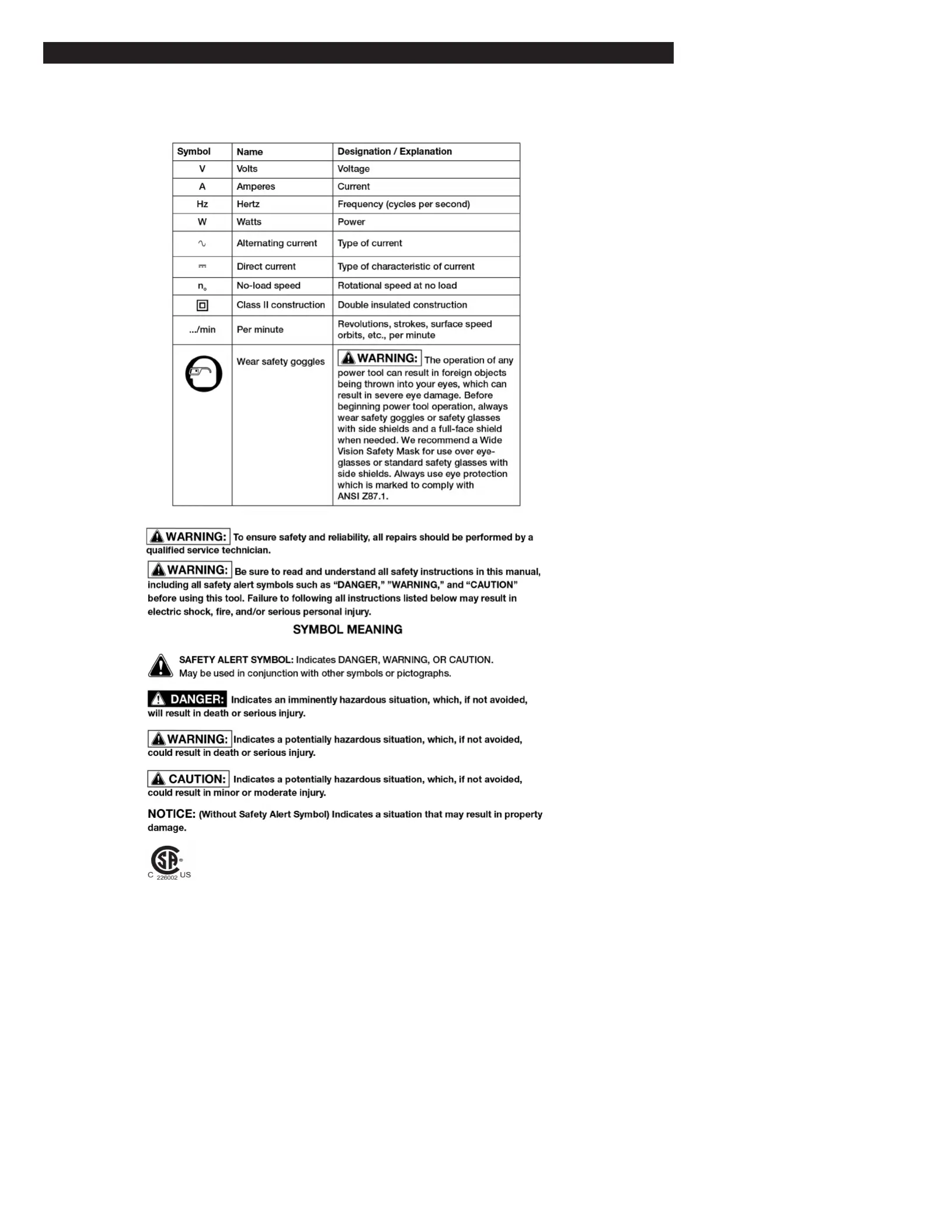

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the
explanations with them deserve your careful attention and understanding. The symbol warnings do not, by
themselves, eliminate the danger. The instructions and warnings they give are no substitutes for proper
accident prevention measures.
THIS SYMBOL DESIGNATES THAT THIS TOOL IS LISTED BY THE CSA GROUP
TESTING SERVICES, TO UNITED STATES AND CANADIAN STANDARDS
SAFETY SYMBOLS
3
