www.rikontools.com
50-161VSM1

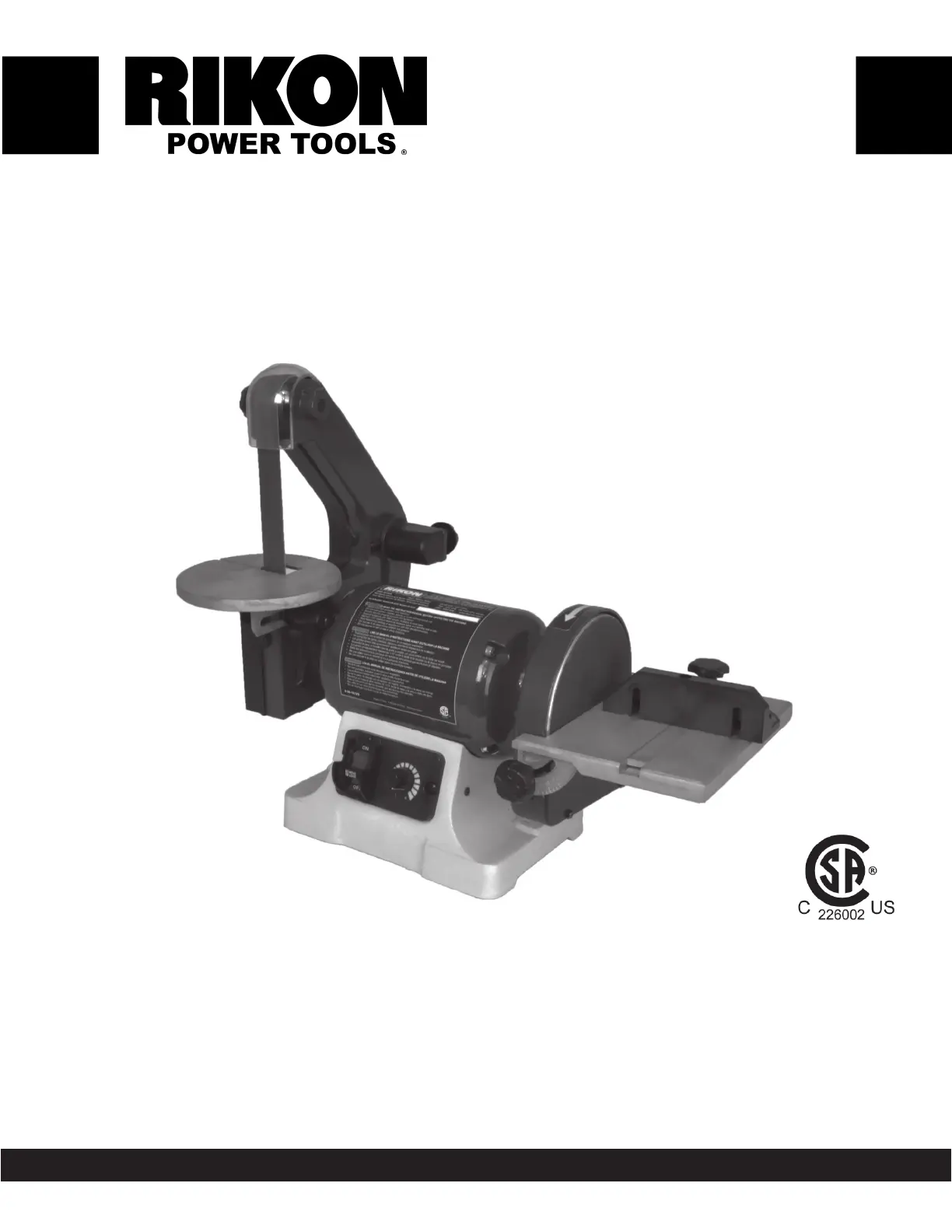

1” x 30” Belt / 6” Disc
Variable Speed Sander
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
50-161VS
2
TABLE OF CONTENTS
SPECIFICATIONS
Specications ........................................................................................................................................2
Safety Instructions..............................................................................................................................3 - 6
Electrical Requirements ..............................................................................................................5, 16
Sander Safety Rules .......................................................................................................................6
Contents of Package .......................................................................................................................................7
Getting to Know Your Sander ..........................................................................................................................8
Assembly ...........................................................................................................................8 - 10
Adjustments ..........................................................................................................................10 - 12
General Use........................................................................................................................................13
Troubleshooting........................................................................................................................................14 - 15
Maintenance ...................................................................................................................................15
Wiring Diagram.................................................................................................................................16
Warranty .............................................................................................................................................16
Parts Diagram ................................................................................................................................17
Parts List .............................................................................................................................18 - 19
Accessories .................................................................................................................................19
NOTE: The specications, photographs, drawings and information in this manual represent the current model
when the manual was prepared. Changes and improvements may be made at any time, with no obligation on the
part of RIKON Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure
that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and
operation of this machine.
This owner’s manual is not a teaching aid and is intended to show
assembly, adjustments, and general use.
Motor ............................................................3/4HP, 120V, 4A, 60Hz
Motor Speed (variable) ...................................... 2,000 - 3,400 RPM
Belt Size .............................................................................. 1” x 30”
Belt Speed (variable) ....................................... 1,909 - 3,248 SFPM
Belt Table Size ........................................................ 5-3/4” Diameter
Belt Table Tilt ........................................................................... 0-45°
Disc Size .............................................................................. 6” PSA
Disc Speed (variable) ........................................ 2,000 - 3,400 RPM
Disc Table ...................................................................... 8” x 5-5/16”
Disc Table Tilt .......................................................................... 0-45°
Miter Gauge ....................................................................... Included
Miter Gauge Slot ............................................................. 5/8” x 1/4”
Machine Height .....................................................................16-3/4”
Machine Width ......................................................................20-1/2”
Machine Depth ............................................................................12”
Base Size .................................................................. 9-1/4” x 6-3/4”
Dust Ports (2) .............. 1-3/4” OD/ 1-1/2” ID & 1-1/2” OD/ 1-1/4” ID
Net Weight ......................................................................... 30.2 lbs.
Shipping Weight ................................................................. 32.6 lbs.
Shipping Carton ..................................... 18-3/4” x 16-3/8” x 12-5/8”
SAFETY SYMBOLS
3
SAFETY SYMBOLS
IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following
instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock,
re, and/or serious personal injury.
There are certain applications for which this tool was designed. We strongly recommend that this tool not be modied
and/or used for any other application other than that for which it was designed. If you have any questions about its
application, do not use the tool until you have contacted us and we have advised you.
GENERAL SAFETY
KNOW YOUR POWER TOOL. Read the owner’s manual
carefully. Learn the tool’s applications, work capabilities,
and its specic potential hazards.
BEFORE USING YOUR MACHINE
To avoid serious injury and damage to the tool, read and
follow all of the Safety and Operating Instructions before
operating the machine.
1. Some dust created by using power tools contains chem-
icals known to the State of California to cause cancer, birth
defects, or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
• masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area and work
with approved safety equipment, such as those dust masks
that are specially designed to lter out microscopic
particles.
2. the entire Owner’s Manual. how to use READ LEARN
the tool for its intended applications.
3. If the tool is supplied with a 3 GROUND ALL TOOLS.
prong plug, it must be plugged into a 3-contact electrical
receptacle. The 3rd prong is used to ground the tool and
provide protection against accidental electric shock. DO
NOT remove the 3rd prong. See Grounding Instructions
on the following pages.
4. AVOID A DANGEROUS WORKING ENVIRONMENT.
DO NOT use electrical tools in a damp environment or
expose them to rain.
5. use electrical tools in the presence of DO NOT
ammable liquids or gases.
6. ALWAYS keep the work area clean, well lit, and
organized. work in an environment with oor DO NOT
surfaces that are slippery from debris, grease, and wax.
7. KEEP VISITORS AND CHILDREN AWAY. DO NOT
permit people to be in the immediate work area,
especially when the electrical tool is operating.
8. to perform an operation DO NOT FORCE THE TOOL
for which it was not designed. It will do a safer and
higher quality job by only performing operations for
which the tool was intended.
9. wear loose WEAR PROPER CLOTHING. DO NOT
clothing, gloves, neckties, or jewelry. These items can
get caught in the machine during operations and pull the
operator into the moving parts. The user must wear a
protective cover on their hair, if the hair is long, to
prevent it from contacting any moving parts.
10. CHILDPROOF THE WORKSHOP AREA by
removing switch keys, unplugging tools from the
electrical receptacles, and using padlocks.
11. ALWAYS UNPLUG THE TOOL FROM THE
ELECTRICAL RECEPTACLE when making adjust-
ments, changing parts or performing any maintenance.
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. This symbol may be used
in conjunction with other symbols or pictographs.
Indicates an imminently hazardous situation, which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious
injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in minor or
moderate injury.
NOTICE: Shown without Safety Alert Symbol indicates a situation that may result in property damage.
