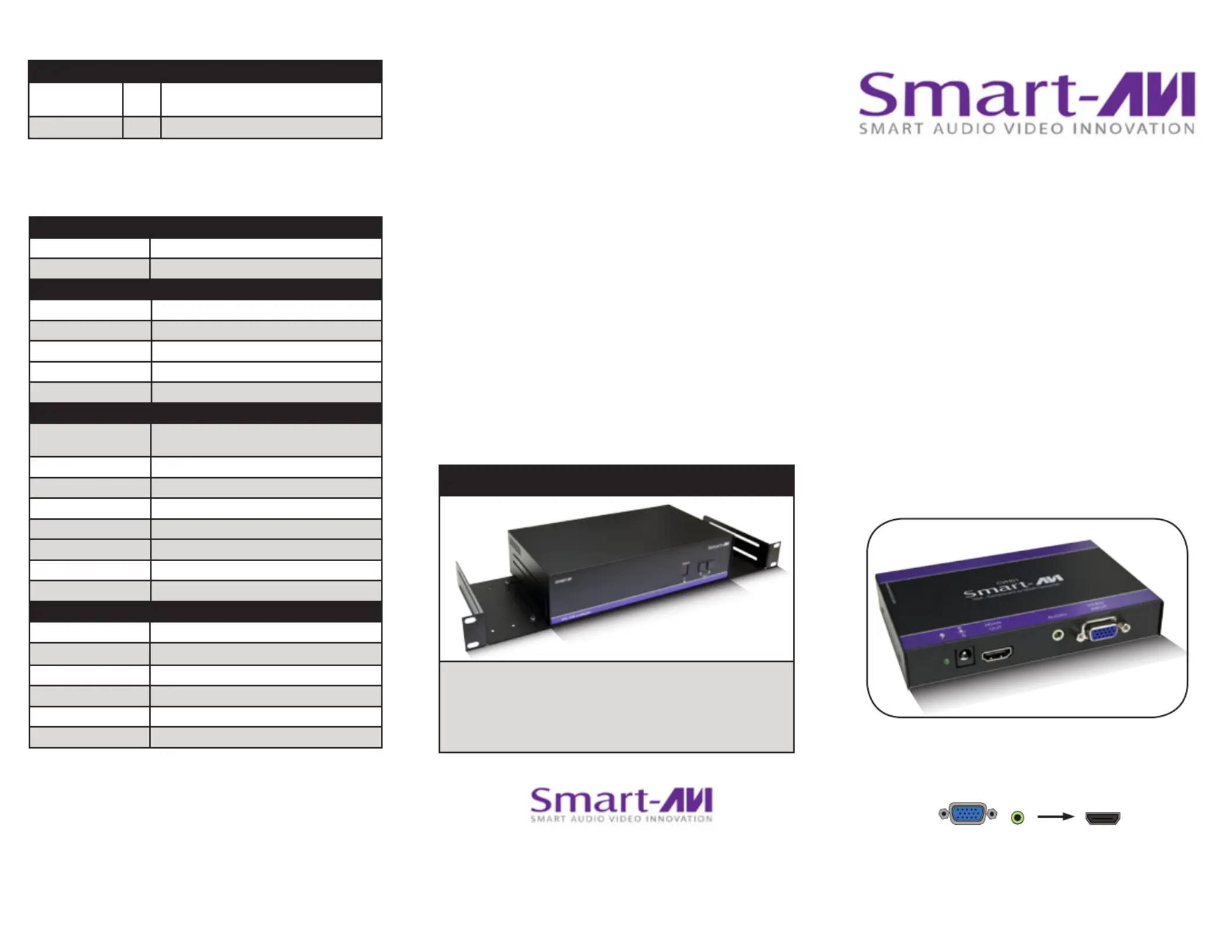

VGA and Audio to HDMI Converter
CVH-01
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO. QTY DESCRIPTION
V2V-AV2H 1 SVideo, Composite Video and Audio to HDMI
Converter
PS5VDC2A 1 5 Volt 2 Amp Power Supply
Technical Specications
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m at i o n co nt a i n e d i n t h i s d o c um e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions
Weight 0.71 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
HDMI VIDEO
Format HDMI 1.3b [Deep Color, xvYcc color space
supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Output Interface (1) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
AUDIO
Signal Type Stereo Unbalanced
Input Interface 3.5 mm Jack Socket (Female)
VGA VIDEO
Format VGA RGB Analog (75Ω, 0.7Vp-p)
Resolution Up to 1600x1200 @ 85Hz2048x1536 @ 60Hz
Input Interface HD-15 Female
H Frequency Range 30-95KHz
V Frequency Range 50-180Hz
V2V-CVH-01
HDMI DISPLAY AND SPEAKERSVGA VIDEO AND
AUDIO SOURCE
Introduction
The CVH-01 converts Analog VGA Video and Stereo
Audio to HDMI
Applications
• Home Theater
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studios
Features
• Connects old systems to newer HDMI displays
• Converts analog video signals to digital HDMI
signals
• Can be used as VGA to DVI converter
• Highly precise 10-bit A/D conversion of each color
channel
• Ensures to send high-denition signal without
signal loss
• Supports Plug-and-play function, no software
installation required
• Supports signal high-denition display for mul-
tiple sources, such as DVD players
• Satellite receivers, digital projectors, A/V receivers,
and set up boxes
• Cost-eective solution (no need to buy HDTV
sources)
Product - Installation Diagram
Installation
1. Connect a VGA video and audio input device.
2. Connect an HDMI display to the HDMI output on
the CVH-01.
3. Connect the power cord to the CVH-01.
4. Power on the input device and the display.
