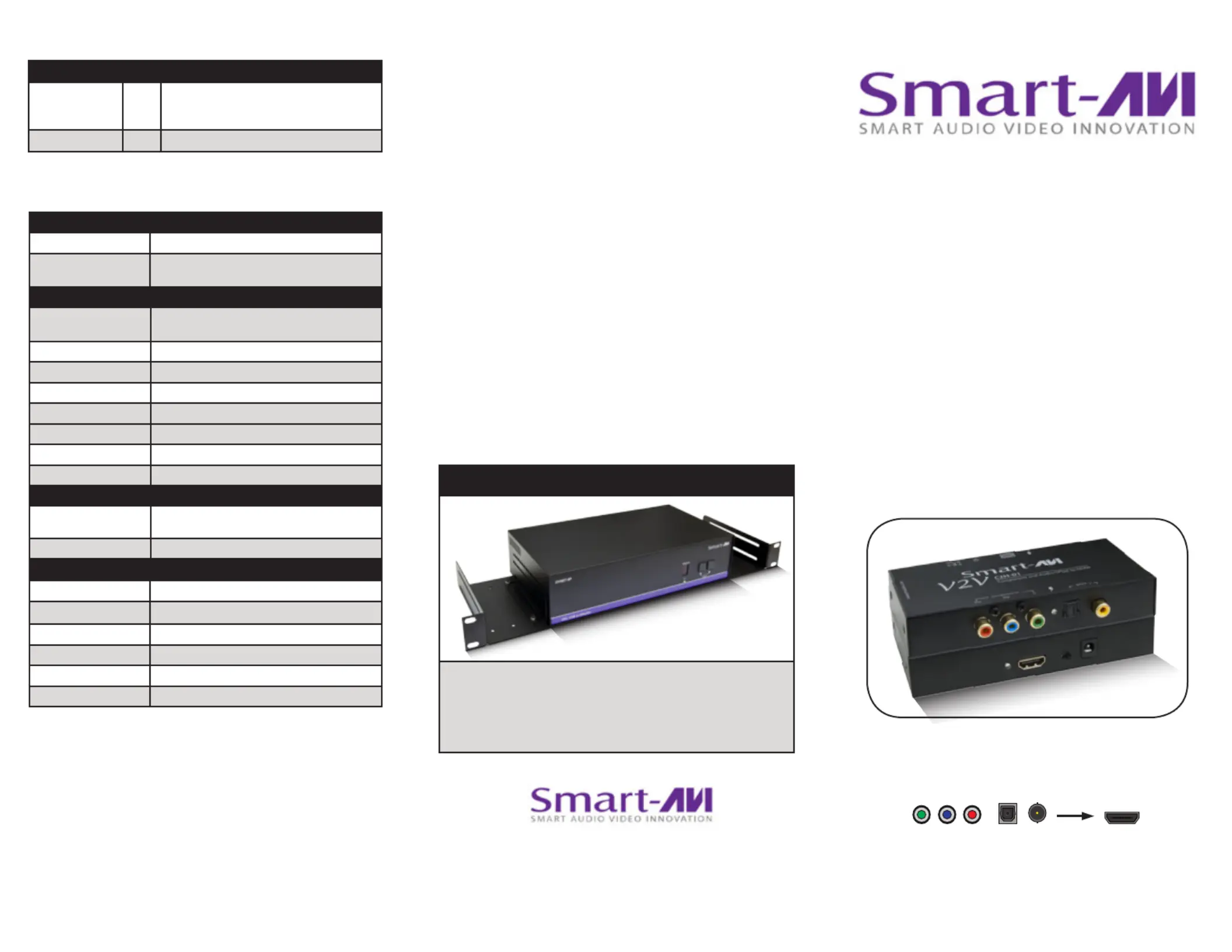

Component to HDMI Converter
V2V- 2H-01C
www.smartavi.com
Installation
Manual
What’s in the Box?
PART NO. QTY DESCRIPTION
V2V-C2H-01 1 Component Video and SPDIF Audio to HDMI
Converter. Includes: [V2V-C2H-01, (PS5VD-
C2A)]
PS5VDC2A 1 5 Volt 2 Amp Power Supply
Technical Specications
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions 5.5 in W x 1 in H x 2.625 in D
Weight 0.75 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
© Copyright 2012 SmartAVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o nt a i n e d i n t h i s d oc u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
HDMI VIDEO
Format HDMI 1.3b [Deep Color, xvYcc color space
supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Output Interface (1) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
V2V FAMILY
SPDIF AUDIO
Signal Type DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-
AC3/DSD
Input Interface (1) SPDIF Optical (1) SPDIF COAX
COMPONENT VIDEO
Format (RCA) Y (75Ω, 1.0Vp-p), PbPr (75Ω, 0.7Vp-p)
Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
(24/25/30Hz)
V2V-C2H-01
HDMI DISPLAY AND SPEAKERSCOMPONENT VIDEO /
SPDIF AUDIO SOURCE
Introduction
The V2V-C2H-01 Converts Component Video with
SPDIF Audio to HDMI.
Applications
• Home Theater
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studios
Features
• One Component YPbPr Signal Input
• SPDIF Audio Signal Input
• One HDMI Signal Output
• HDMI Signal 720p/60HZ Output
• Adaptive PAL / NTSC standard
• LED Indicators
• Easy to install within minutes
Product - Installation Diagram
Installation
1. Connect a component video input device.
2. Connect an SPDIF audio input device.
3. Connect an HDMI display to the HDMI output on
the V2V-C2H-01.
4. Connect the power cord to the V2V-C2H-01.
5. Power on the input device and the display.
V2V-C2H-01 Front V2V-C2H-01 Rear
