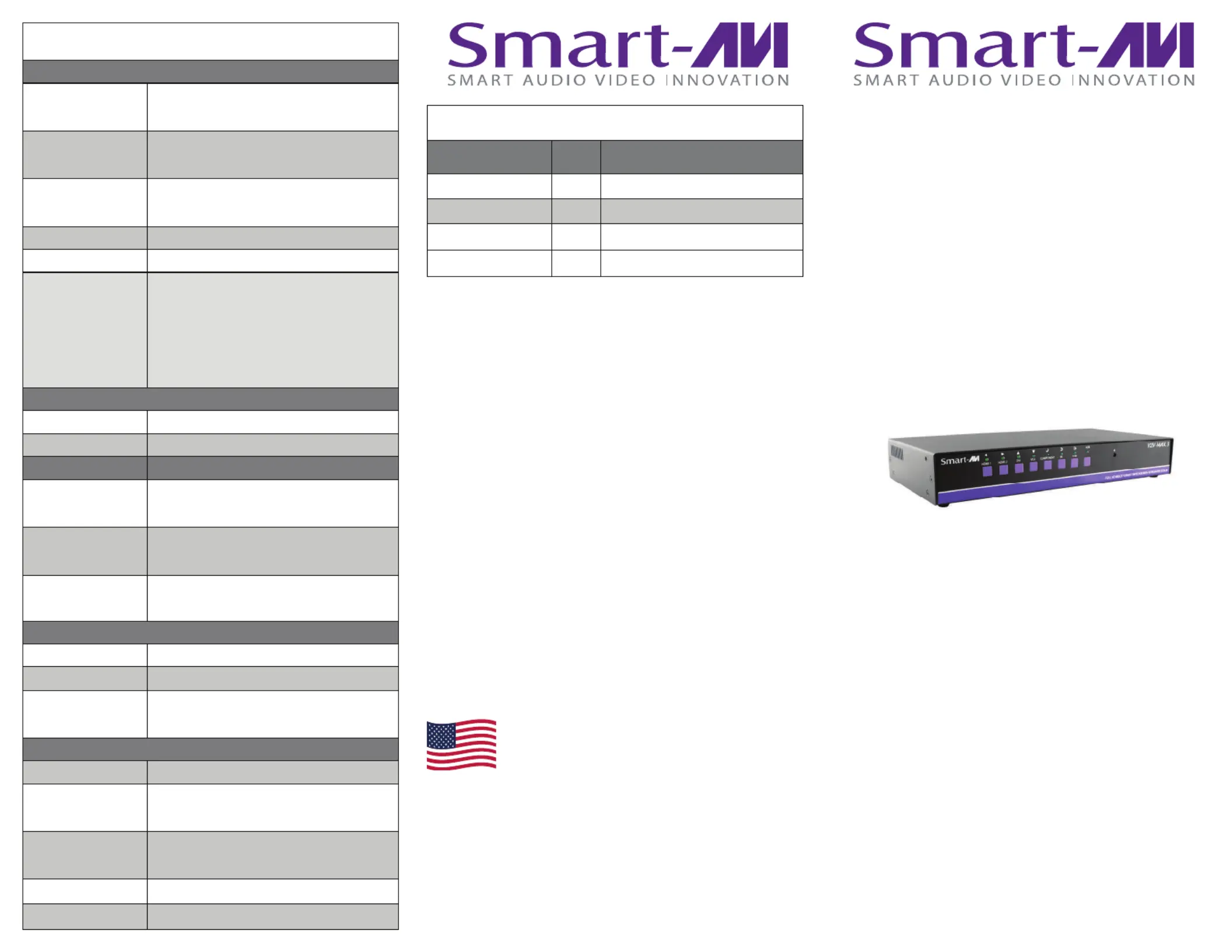

V2V-MAX 3
V2V-MAX 3
V2V-MAX 3
V2V-MAX 3 V2V-MAX 3
Designed and Manufactured in the USA
Full 1080P HD Automatic Switcher
with Integrated Scaler
User Manual
DVI, VGA, Composite, USB,
Y/Pb/Pr, HDMI, Stereo Audio
Converter, Scaler and Automatic
Switcher
WHAT'S IN THE BOX?
PART NO.
PART NO.
PART NO.
PART NO. PART NO. QTY
QTY
QTY
QTY QTY DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION DESCRIPTION
V2V-MAX 3 1 1080p Switch w Scaler
PS5VDC4A 1 Power Supply/Adapter
1 Quick Start Guide
V2V-MXR 1 Remote Control (Optional)
TECHNICAL SPECIFICATIONS
INPUTS
INPUTS
INPUTS
INPUTS INPUTS
HDMI (2) Type A 19-Pin Female, Up to
1920x1080@60Hz
DVI-D (1) DVI-D Female, Up to
1920x1080@60Hz
VGA (1) DB15 Female, Up to
1920x1080@60Hz
COMPOSITE (1) RCA CVBS, PAL, NTSC, SECAM
Y/Pb/Pr (1) Up to 1080i
USB (1)
USB Type A; MPEG, H.264, RM/RMVB
movie decode, JPEG, BMP, PNG, Pic-
ture decode and MPEG1/2, MP3 au-
dio decode.
Max Resolution 1280 X 720
OUTPUT
OUTPUT
OUTPUT
OUTPUT OUTPUT
HDMI HDMI Type A 19-Pin Female
CONTROL
CONTROL
CONTROL
CONTROL CONTROL
Front Panel (8) Buttons
RS-232 DB9 Female, 9600, 8, N, 1, No Flow
Control
OTHER
OTHER
OTHER
OTHER OTHER
Power 5VDC 4A
Operating Temp.
Range -5 to 35 C (-41 to +95 F)
Operating Humid-
ity Range 50 to 90 % RH (No Condensation)
Dimensions 12” W x 2” H x 6.25” D
Weight 1 lb. 10 oz.
HDMI Output Up to 1080P@60Hz
IR remote IR remote control (Optional)
Stereo Audio Out-
put 3.5 mm output Jack
Stereo Audio Input
3.5 mm input to the left of the DVI
Port. Selected by the DVI button.
AUDIO
AUDIO
AUDIO
AUDIO AUDIO
Stereo Audio Input 3.5 mm input Jack to the right of the
VGA Port. Selected by the VGA button.
CONNECTING THE V2V-MAX3
1. Power off all devices.
2. Connect all sources to the input ports.
3. Optionally connect RS-232 for control functions.
4. Connect power to the V2V-MAX 3.
5. Power on all other devices.
RS-232 COMMANDS
INSTALLATION DIAGRAM
BUTTON
BUTTON
BUTTON
BUTTON BUTTON DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION DESCRIPTION USB Mode
USB Mode
USB Mode
USB Mode USB Mode
HDMI 1 Select HDMI 1 Input Left
HDMI 2 Select HDMI 2 Input Right
DVI Select DVI Input Up
VGA Select VGA Input Down
COMPONENT Select Composite Input Enter
AV Select Y/Pb/Pr Input Back
USB Select USB Mode Exit USB
Mode
► /║ Play / Pause
FRONT PANEL CONTROLS
BUTTON
BUTTON
BUTTON
BUTTON BUTTON DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION DESCRIPTION
USB Select USB Input
VGA Select VGA Input
DVI Select DVI Input
HDMI Select between the two HDMI Inputs
AV Select AV Input
Menu Picture Adjustment Menu
Up Arrow ▲Volume Up
Down Arrow ▼Volume Down
Left Arrow ◄USB Mode Left
Right Arrow ►USB Mode Right
Center Button USB Mode Enter
Back USB Mode Back
Mute Mute
Play USB Mode Play
Stop USB Mode Stop
Enter USB Mode Enter
IR REMOTE CONTROL
COM Port Setting: 9600,N,8,1,No flow co
COM Port Setting: 9600,N,8,1,No flow co
COM Port Setting: 9600,N,8,1,No flow co
COM Port Setting: 9600,N,8,1,No flow coCOM Port Setting: 9600,N,8,1,No flow control
ntrol
ntrol
ntrol ntrol
Commands are case sensitive
Commands are case sensitive
Commands are case sensitive
Commands are case sensitive Commands are case sensitive
<CR> represents Carriage Return or enter key
<CR> represents Carriage Return or enter key
<CR> represents Carriage Return or enter key
<CR> represents Carriage Return or enter key <CR> represents Carriage Return or enter key
BUTTON
BUTTON
BUTTON
BUTTON BUTTON DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION DESCRIPTION
//?<CR> Help (List of Commands)
//H1<CR> Select HDMI 1 Input
//H2<CR> Select HDMI 2 Input
//DV<CR> Select DVI Input
//VG<CR> Select VGA Input
//AV<CR> Select AV Input
//YB<CR> Select Component Input
//US<CR> Select USB Input
//E0<CR> Echo off
//E1<CR> Echo on
//MU<CR> Picture Adjustment Menu
//B<CR> Boot
//RT<CR> Navigate Right
//LF<CR> Navigate Left
//EN<CR> Enter
//UP<CR> Navigate Up
//DN<CR> Navigate Down
//BK<CR> Back
//PL<CR> Play/Pause
//ST<CR> Stop
//VU<CR> Volume Up
//VD<CR> Volume Down
//QF<CR> Query Firmware version
//QM<CR> Query current Mode
//AO<CR> Enable Auto-Detect
//AF<CR> Disable Auto-Detect
