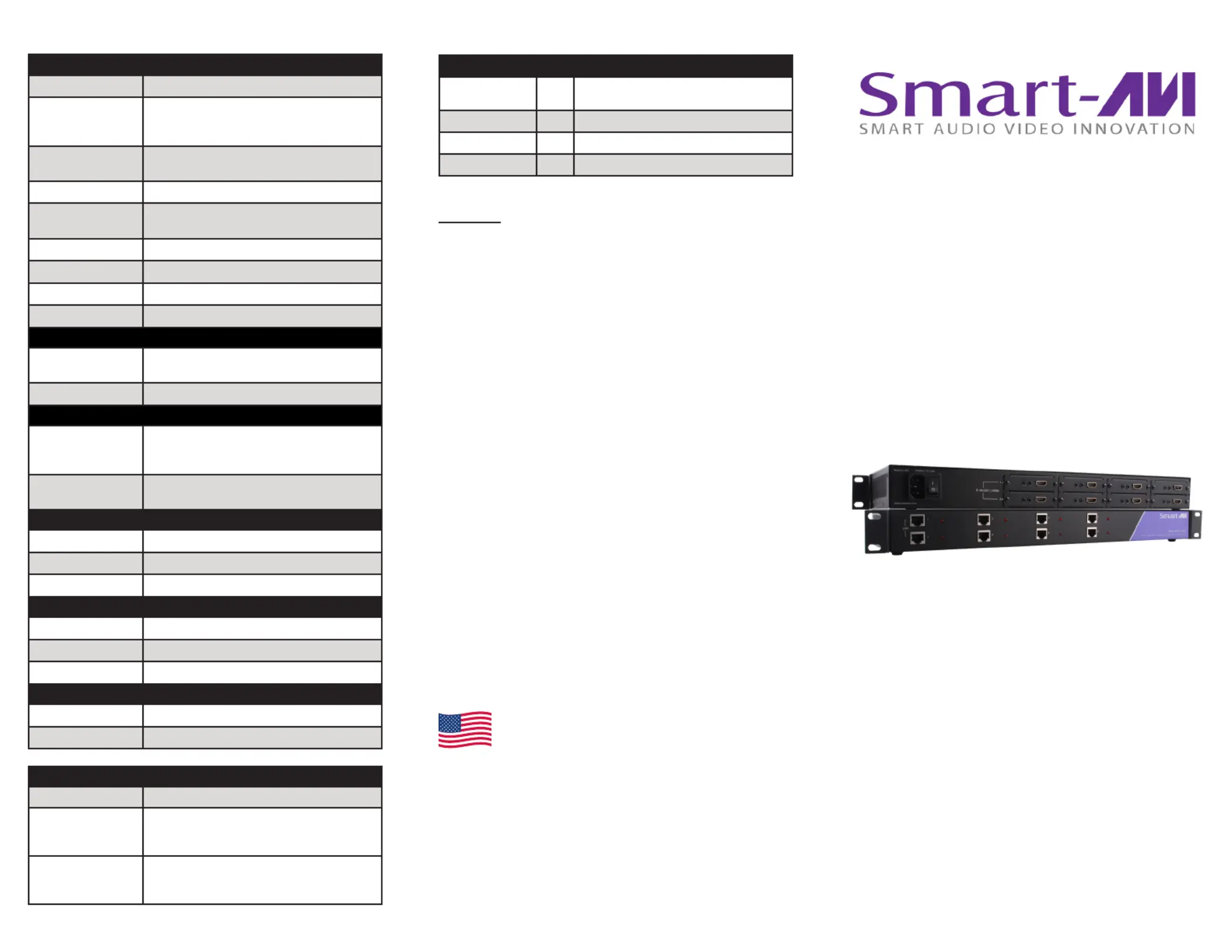

RK8-HDX-POE
Consolidate up to eight HDMI extenders
in one powered rack unit
to transmit HD signals using Cat5e/6
8-Port HDMI, IR and Power Extender
Rack Over Cat5e/6
WWW.SMARTAVI.COM
VIDEO
Format HDMI 1.3 (HDCP Compliant)
Resolutions 800x600, 1024x768, 1280x1024, 1366x768,
1920x1200, 480i, 720p, 1080i, 1080p,
4K x 2K @30Hz @24bit
Transmission
Distance
70 meters
Color Depth Deep Color 36/30/24 Bit at 1080p and 3D
Audio Format Up to PCM 8 channel, Dolby Digital TrueHD,
and DTS-HD Master Audio
IR Range 38kHz, 56kHz
Video Bandwith 10.2Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts (TTL)
I/O CONNECTOR (Transmitter)
Input 8 x (HDMI-A) 19PIN Socket;
8 x 3.5mm Jack for IR Receiver
Output 8 x RJ45 Jack
I/O CONNECTOR (Receiver)
Input 1 x RJ45 Jack;
1 x 3.5mm Jack for IR Receiver;
5 x 2.5mm
Output 1 x 3.5mm Jack for IR Emitter;
1 x HDMI-A 19PIN Socket
MECHANICAL - Transmitter
Dimensions 17”H x 6”W x 1.7”D
Weight 3.26 lbs
Power 110/220V
ENVIRONMENTAL
Operating Temp. +0 to +40° C (+32° to 104° F)
Humidity 10% to 85% (Non-condensing)
Storage Temp. -20° to +60°C (-4° to +140° F)
SAFETY
Certicate FCC, CE, RoHS
Power Adapter UL, CE, FCC, RoHS
ORDER INFO
Part No. Description
RK8-HDX-POE-S 8-Port HDBaseT HDMI and IR Rack Mountable
Extender Transmitters over a Single Cat5e/6
Cable. Includes: [RK8- HDX-POE and CCPWR06]
HDX-POE-RX-S HDMI and IR Receiver over a Single CAT5e/6
Cable. Includes: [HDX-POE-RX
and PS12VD2A-WLLMNT]
Technical Specications
Quick Start Guide
Designed and Manufactured in the USA
Tel: 800.AVI.2131 • 818.503.6200
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
PART NO. QTY DESCRIPTION
RK8-HDX-POE-S 1 8-Port HDBaseT HDMI and IR Rack
Mountable Extender Transmitters.
HDX-POE-RX-S 1 HDMI and IR Receiver.
Power Supply 2 PS12V2A-WLLMNT
1 Quick Start Guide
What’s in the Box?
Notice
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability andtness for particular purpose.
SmartAVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20191024
Introduction
The RK8-HDX-POE is the perfect solution for
extending HDMI signals to a remote location up to
250 feet away. It is the ideal way to consolidate up to
eight workstation computers into one location. It is
fully compatible with MAC, PC and LINUX HDMI
standards. Up to eight displays can be extended
easily from a rack without the mess or expense of
multiple extenders. Rather than buy multiple
extenders for rack components, and having to nd
power strips or numerous power outlets for the
adapters, the SmartAVI rack series of extenders
allows for up to eight inputs and eight outputs with
only one power supply.
RK8-HDX-POE Front
RK8-HDX-POE Back
Features
• Extends HDMI, IR, and Power Output over Cat5e/6
• Extends IR Control Signals for Remote Control
• Full HD support: 1080p @60Hz @48 bit/pixels,
1080p @ 120Hz @24 bit/pixels, 3D 1080p 60Hz and
4K x 2K@ 30Hz @24bit
• Data Signals up to 3.4Gbps
• HDMI 1.4 and HDCP Compliance
• Power receiver from transmitter
• Transmits Dolby TrueHD, DTS-HD MA Audio Signals
• Transmits 1080p Resolution Video up to 250 ft.
• Rack mountable
• Up to 8 units on single rack
Connecting the RK8-HDX-POE
1. Power o the HDMI source and display.
2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the HDX-POE transmitter.
3. Connect an IR emitter (optional) to the IR OUT port on the transmitter.
4. Connect the HDX-POE transmitter to the HDX-POE receiver using a CAT5e/6 cable (up to 150ft).
5. Connect an IR receiver (optional) to the IR IN port on the receiver.
6. Connect an HDMI cable from the HDMI OUT port on the HDX-POE receiver to the HDMI display
7. Connect the power on the HDX-POE transmitter plugging in their power adapters (12VDC2A)
or provide 12VDC input from the rear DC input port.
NOTE: If the RX side has connected DC adapter, TX can get the DC power over the CAT5e/CAT6 cable,
so leave DC input port empty. Only 1 power supply is required for both units. (In certain cases, if the receiver
has too much drop o power, we recommend to connect a 12V DC power supply to each receiver
8. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass the
data into the TX automatically.
INTALLATION NOTE: Do not stack receiver units. Stacking inhibits heat distribution.
