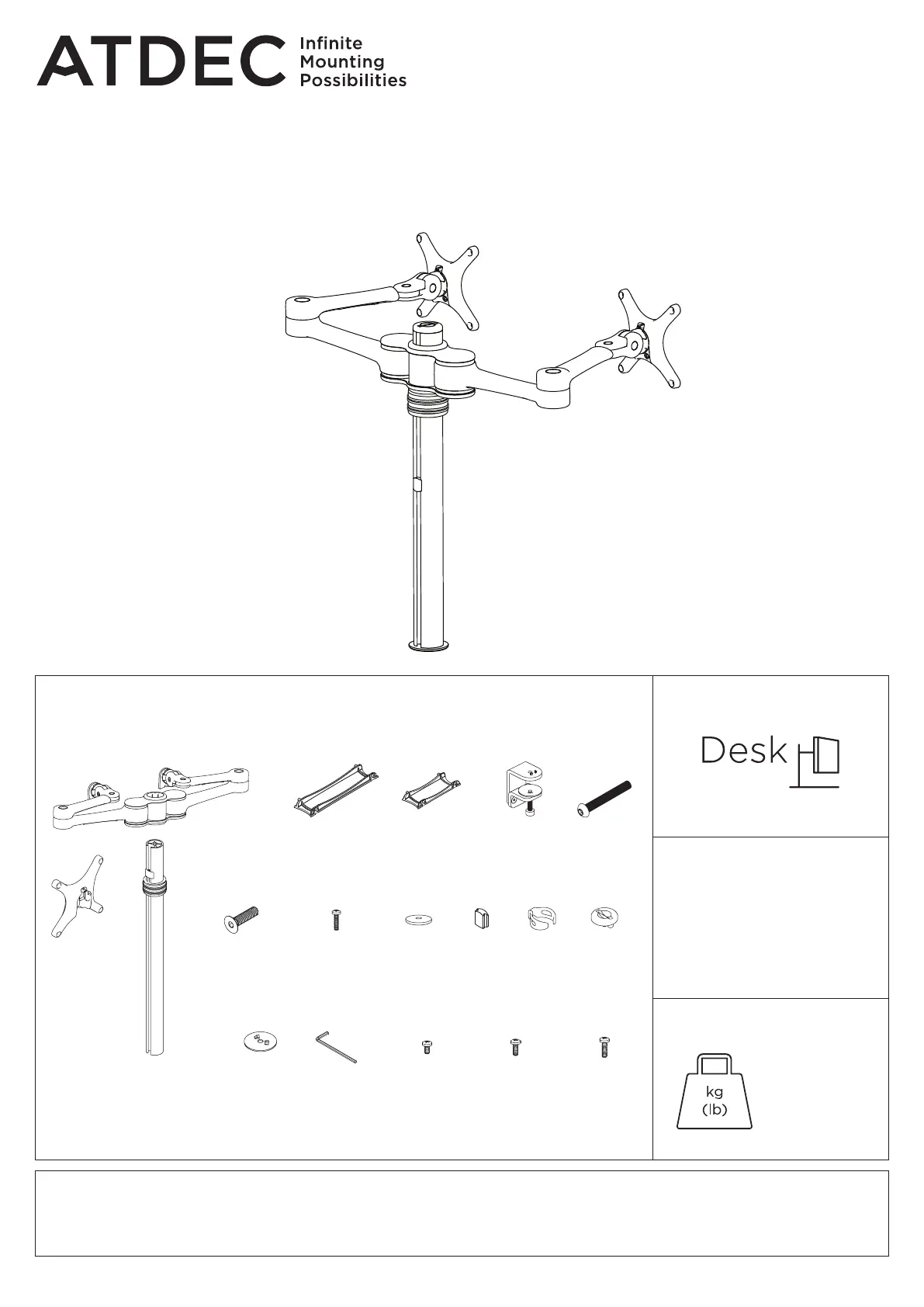

COMPONENT CHECKLIST
A
VESA
head
(x2)
D
Primary arm
cable cover
(x2)
E
Secondary arm
cable cover
(x2)
C
Pole Assembly
(x1)
F
Desk clamp
assembly
(x1)
H
M8 x 30mm
Screw
(x1)
J
Steel
washer
(x1)
G
M8 x 60mm
Screw
(x1)
M
Pole
top cap
(x1)
N
Bolt through
base
(x1)
I
Security Screw
M4 x 16mm
(x2)
K
Cable
stop
(x2)
L
Cable
clip
(x2)
B
Dual arm
assembly
(x1)
P
5mm
Allen key
(x1)
Q
Mounting
screws
M4 x 10mm
(x8)
R
Mounting
screws
M4 x 12mm
(x8)
S
Mounting
screws
M4 x 16mm
(x8)
Installation Guide
AF-AT-D
Dual Arm
Desktop Monitor Mount
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with the range of AF Poles and arms.
! The manufacturer accepts no responsibility for incorrect installation.
REQUIRED TOOLS
WEIGHT RANGE
• Power Drill
• Drill Bit
• Phillips Head Screwdriver
0 - 8kg
(0 - 17.6lbs)
per screen
AF-AT-D Page 2 of 4
1. Desk overview
The desk clamp bracket
can be repositioned to
suit different mounting
surface thicknesses
1.1 1.2 Default Inverted
2. How to reconfigure desk clamp
2.1 Remove screws
(M8 x 16mm Countersunk screw)
2.2 Remove clamp plate Invert bracket Replace clamp plate Reattach bracket2.3 2.4 2.5
Pressure Plate
M10 Desk Clamp Screw
5mm Allen Key
M8 x 30mm
Countersunk
screw Tighten
firmly
3.2 Place in desired location Screw pressure plates in and .3.3 tighten firmly3.1 Attach clamp to post
Drill 9mm hole in
desired post position
on work surface
3. Post mount configuration
4. Bolt through
9mm
(3/8”)
25mm
offset
MIN THICKNESS - 0mm (0”)
MAX THICKNESS - 39mm (1.5”)
MIN THICKNESS - 35mm (1.4”)
MAX THICKNESS - 76mm (3”)
5. Installing bolt through
5.1 Attach plate to post
Align rear hole with
hole on desk
5mm
Allen Key
M8x60mm
Screw
Bolt
Through
Plate
AF-AT-D Page 3 of 4
6. Install VESA monitor head
Optional Spacers (may be
required for recessed and
uneven surfaces)
VESA monitor
head
Screen
M4x10/12/16mm
Phillips Head Mounting
Screws
6.1 Install VESA monitor head as shown. 100mm
100mm
Double Arm
Assembly
7. Install arm assembly
Handgrip Tab
5mm
Allen Key
Pole
Top Cap
7.1 Unlock handgrip and raise so
that handgrip tab protrudes
7.3 Slide the double arm assembly and
Handgrip down the pole before locking
the handgrip at the desired height
7.4 Insert Pole
Top Cap into
Pole. This is also
where the Allen
Key is stored.
7.2 Slip the double arm assembly
over the handgrip tab and then
onto the pole
8. Mounting Monitor
VESA monitor head
Arm Assembly
8.2 OPTIONAL SECURITY SCREW
Ensure the Monitor is supported, then loosen the
Monitor head screw with the 5mm Allen Key and
tilt screen up before installing the M4 x 16mm
Security Screw into the Security Screw hole
8.1 Insert VESA monitor head into
the receptacle in the Arm Assembly
5mm Allen Key
Phillips Head
Screwdriver
Loosen
Tighten
Security Screw
Hole
M4 x 16mm
Security Screw
Monitor head
screw
Note: Support Screen
when adjusting tilt.
Note: Back to back configurations
may result in clamp failure
