Component Checklist
Installation Instructions
A. Use this configuration with a
standard 50mm pole
(No inserts required)
B. Use this configuration with a
Visidec 42mm extrusion
pole
C.
Use this configuration with a
standard 42mm pole

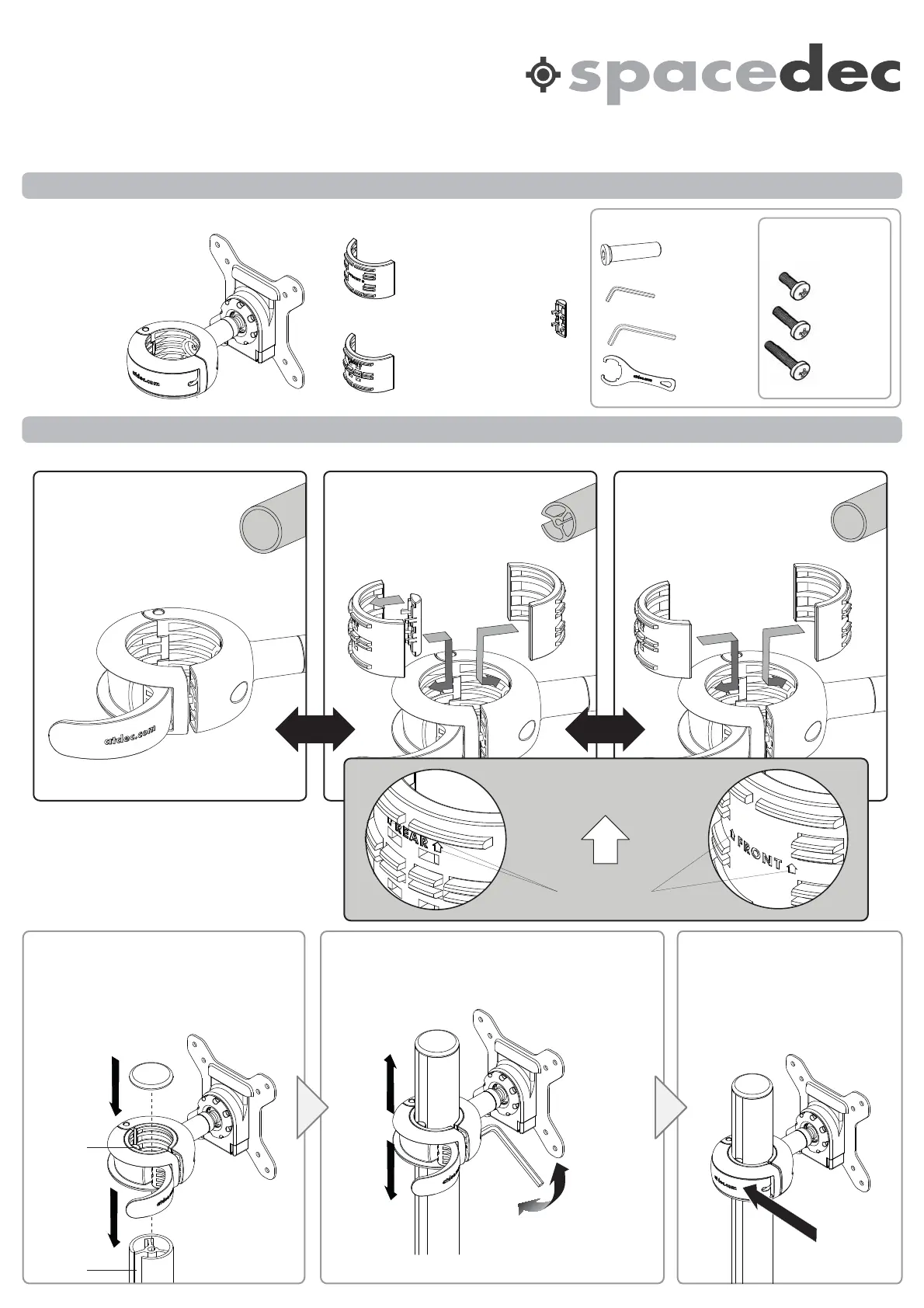

Step 1. Install Quickshift Donut
42mm Front
Donut Insert (x1)
Visidec Groove
Lock (x1)
42mm Rear
Donut Insert (x1)
5mm Allen
Key (x1)
Hardware Mounting
Screws
M4x10mm
Screw (x4)
M4x12mm
Screw (x4)
M4x16mm
Screw (x4)
Select your correct product configuration: A, B, or C.
Rear Donut
Insert
Rear Donut
Insert
Front Donut
Insert Front Donut
Insert
Groove
Insert
Check you have received all parts against this Component Checklist prior to installation.
Tightening
Tool (x1)
2mm Allen
Key (x1)
Slide the Quickshift Donut onto the pole
(with the lever open), removing the End
Cap if necessary.
Rear groove insert must align with slot in
the Pole.
(Visidec 42mm pole shown)
TIGHTEN
LOOSEN
Once in place, close the lever
to lock the Quickshift Donut
in the desired position.
Slide the Quickshift Donut into the desired position.
If necessary, adjust the tension between the
Quickshift Donut and the Pole using the 5mm Allen
Key supplied.
Slot
OR OR
Groove
Insert
Security
Screw (x1)
CLOSE
WARNING: Be careful not to overtighten
! The Spacedec Display Quickshift Donut is to be used on 42mm and 50mm diameter poles only.
! The Manufacturer accepts no responsibility for incorrect installation.
Display | Quickshift Donut
Quickshift
Donut (x1)
Note: Ensure inserts are fitted
in correct orientation.
Arrows point
to top surface
SD-DO
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 18.05.09 ©
Step 2. Remove VESA plate from Quickshift Donut
Step 5. Adjusting the VESA Ball Mount
Position your Display to the desired viewing angle, using the 40°
angular movement allowed by the VESA Ball Mount.
Depending on the weight of the display, it may be necessary to make
adjustments to the VESA Ball the display Mount. If does not hold its
position, or is too resistant, adjust the Tension Plate located at the
rear of the VESA Ball Mount (see diagram right).
To make any adjustments, use the Tightening Tool supplied.
Check the display, and then adjust again if necessary.
Installation Complete
Step 4. Attach your Display to the Quickshift Donut
Press and hold the Release Buttons (one on either side).
Release
Button
Whilst holding the Release Buttons, remove the VESA Plate.
LIFT
TIGHTEN
Hook the top of the VESA plate onto
the Quickshift Mount.
Insert the Security Screw, and tighten
using the 2mm Allen Key.
CLICK
Gently push the bottom of the Display
into the Mount until it ‘CLICKS’.
Back of Display
VESA Plate
Release
Buttons
Tightening
Tool
Tension
Plate
Loosen (-Kg)
Tighten (+Kg)
Step 3. Attach the VESA plate to your Display
There are two mounting hole configurations:
UÊÇxÊÝÊÇx
UÊ£ääÊÝÊ£ää
Choose appropriate Mounting Screws
from the Hardware supplied to suit
your Display. Top of
Display
Mounting Screws (x4)
VESA Plate
Back of Display
Çx
(3”) 100mm
(4”)
Çx
(3”)
100mm
(4”)
VESA plate
