Sida 1/4
70

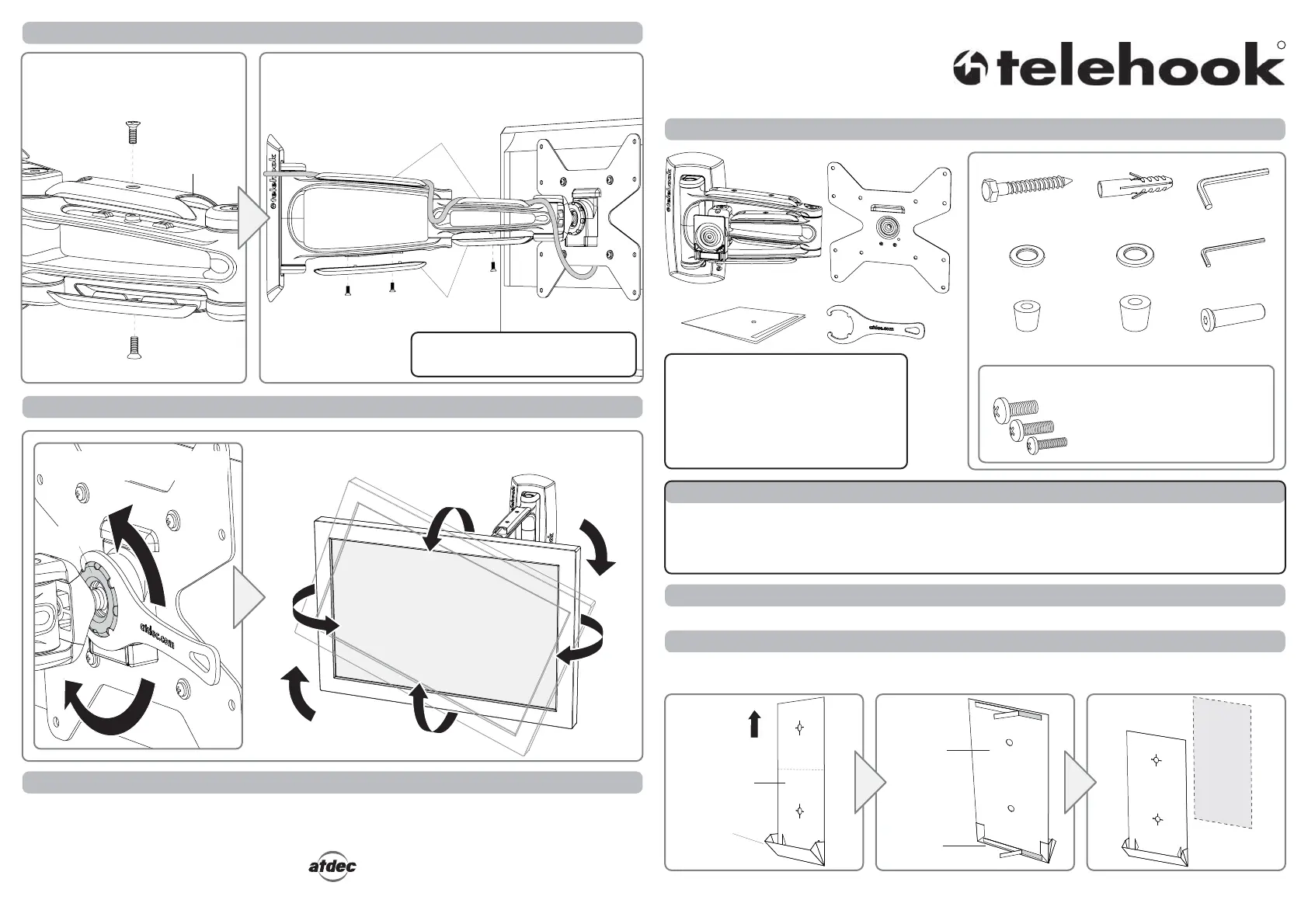

Flat Screen Wall Mount | Full Motion
Installation Instructions
Component Checklist
Hardware
IMPORTANT INFORMATION
! IMPORTANT - Install Telehook Wall Mount as per Installation Instructions.
! Telehook Wall Mount supports Displays weighing up to 20kg (44lbs), with VESA hole configurations:
100x100mm (4”x4”), 200x100mm (8”x4”), 200x200mm (8”x8”)
! The Manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
TH-1040-VFM
Step 2. Locate Drilling Postion
WALL
Double-sided
tape (x2)
Drilling Guide
BACK
Un-fold the Drilling Guide and
open the Dust Collector.
Peel away the backing from the
double-sided adhesive tape.
Position the Drilling Guide vertically
onto the wall using a Spirit Level.
Choose the location of your Telehook Wall Mount, ensuring that the wall is structurally sound (for a timber stud
wall, locate the stud using a stud detection device). Use the Drilling Guide to mark out the hole centres.
Dust Collector
Drilling Guide
FRONT
Articulated Arm VESA plate
Concrete
Anchor (x2)
4mm
Allen Key
M4 Washer (x4) M5 Washer (x4)
M4x16mm / M4x25mm (x4 each)
M5x16mm / M5x25mm (x4 each)
M6x16mm / M6x30mm (x4 each)
Coach
Bolt M8 (x2)
Mounting Screws
M4/5
Spacer Bush (x4)
M6/8
Spacer Bush (x4)
Drilling
Guide
TOOLS REQUIRED:
ÊUÊ*ÜiÀÊÀ
ÊUÊ*«ÃÊi>`Ê-VÀiÜ`ÀÛiÀ
ÊUÊ-«ÀÌÊiÛi
ÊUÊÇÊ9/32”) Drill Bit
ÊUÊ££ÊÇ/16”) Masonry Drill Bit
ÊUÊ£ÎÊ1/2”) Socket Wrench or Shifter
Step 6. Cable Management
Remove the Cable Covers as required
using a Phillips Head Screw Driver.
Step 6. Final Adjustment
As TFT Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the VESA mounting does not comply with the international standards.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 03.04.09 ©
Installation Complete
Connect cables to your Display, and route along the arms.
Re-attach the Cable Covers to hold the Cables in place.
TIP: Leave enough slack in the cables
to allow full movement at the joints.
Your Telehook Wall Mount Articulated Arm installation is complete and ready for use.
Cable Covers
Cable Covers
Use the Tool supplied to loosen the
Tension Plate (do not remove).
Rotate the Display as desired, locking the Display into position by
tightening the Tension Plate.
Top
2mm
Allen Key
Cable
Cover
Tightening
Tool
Loosen
Tighten
Tension
Plate
+/- 20°
angular tilt
360° infinite
horizontal rotation
Security Screw
Step 3. Attaching the Articulated Arm to the Wall
Timber Stud Wall
- Using the Drilling Guide, drill two 7mm (9/32”)
diameter holes, 50mm (2”) deep.
- Secure the Mouting Plate to the wall using the Coach
Bolts supplied.
Masonry Wall
- Using the Drilling Guide, drill two 11mm (7/16”)
diameter holes, 50mm (2”) deep.
- Secure the Mouting Plate to the wall using the Coach
Bolts and Concrete Anchors supplied.
Remove the Telehook Arm
from the packaging and open fully.
Un-clip the Wall Plate Cover
and slide down the arm.
Wall Plate Cover
Coach Bolt (x2)
Coach Bolt M8 (x2)
Masonry WallTimber Stud
Concrete Anchor (x2)
Slide the Wall Plate Cover back along
the arm, and push flat against the wall.
Step 4. Attaching the VESA Plate to your Display
Wall Plate Cover
Top of
Display
Back of Display
Choose appropriate Mouting Screws and Washers
from the Hardware supplied to suit your Display.
Mounting Screws (x4)
Washers (x4)
Spacer
Bush
Mounting
Hole
Washer
Step 5. Attaching your Display to the Articulated Arm (Two people required for this operation)
Hook the top of the VESA Plate
onto the VESA Ball Mount.
VESA plate
Mounting
Screw
Recessed Mounting Holes or
Display with a Curved Rear Panel
If the Mounting Holes are recessed
into the back of the Display, or the
Display has a curved rear panel, use
the appropriate Spacer Bushes
supplied to pack the Mounting Holes.
NOTE: Ensure the VESA plate is
securely fixed to the display.
VESA Plate
Push the bottom of the Display
gently into the VESA Ball Mount
until you hear a ‘CLICK’.
CLICK
VESA
Ball Mount
Insert the Security Screw supplied,
and tighten using the 2.5mm
Allen Key.
Tighten
Back of Display
VESA Plate
OR
Security
Screw
2mm
Allen Key
