Sida 1/4
70

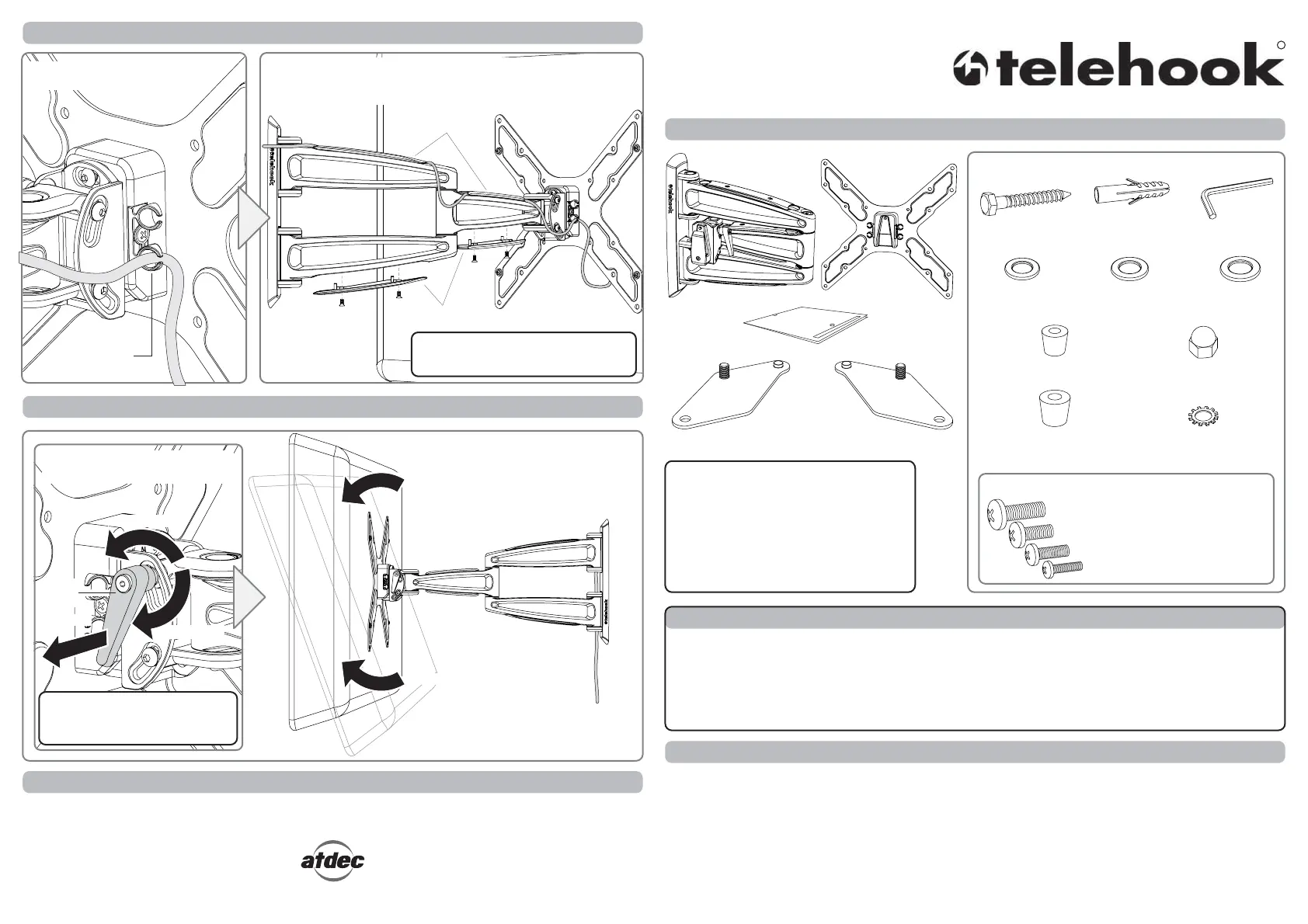

Flat Screen Wall Mount | Full Motion
Installation Instructions
Component Checklist
Hardware
IMPORTANT INFORMATION
! IMPORTANT - Install Telehook Wall Mount as per Installation Instructions.
! Telehook Wall Mount supports Displays weighing up to 35kg (77lbs), with VESA hole configurations:
ÊÊÊÊUÊ100x100mm (4”x4”) 300x200mm (12”x8”)UÊ
UÊ UÊ200x100mm (8”x4”) 300x300mm (12“x12”)
UÊ UÊ200x200mm (8”x8”) 400x400mm (16”x16”) - using the extensions plates supplied.
! The Manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
TH-2050-VFM
Articulated Arm VESA plate
Concrete
Anchor (x3)
4mm
Allen Key
M4 Washer (x4) Coach Washer
M8 (x3)
M5 Washer (x4)
M8x16mm / M8x45mm (x4 each)
M4x16mm / M4x25mm (x4 each)
M5x16mm / M5x25mm (x4 each)
M6x16mm / M6x30mm (x4 each)
Coach
Bolt M8 (x3)
Mounting Screws
M4/5 Spacer Bush (x4)
M6/8 Spacer Bush (x4)
Drilling
Guide
TOOLS REQUIRED:
ÊUÊ*ÜiÀÊÀ
ÊUÊ*«ÃÊi>`Ê-VÀiÜ`ÀÛiÀ
ÊUÊ-«ÀÌÊiÛi
ÊUÊxÊ3/16”) Drill Bit
ÊUÊ£äÊ3/8”) Masonry Drill Bit
ÊUÊ£ÎÊ1/2”) Socket Wrench or Shifter
ÊUÊ£{Ê9/16”) Socket Wrench or Shifter
Step 7. Cable Management
Connect cables to your Display and
route through Cable Clips.
Step 8. Tilt Adjustment
As TFT Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the VESA mounting does not comply with the international standards.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. 11.11.09 ©*ÕLÃi`\
Installation Complete
,iÛiÊ>LiÊÛiÀÃÊÕÃ}Ê>Ê*«ÃÊi>`Ê-VÀiÜ`ÀÛiÀ]Ê>`ÊÀÕÌi
the cables along the length of the arms. Reattach the Cable Covers
to hold the Cables in place.
Cable Clips TIP: Leave enough slack in the cables
to allow full movement at the joints.
Your Telehook Wall Mount Articulated Arm installation is complete and ready for use.
Cable Covers
Cable Covers
,ii>ÃiÊÌiÊ>«ÊiÛiÀÊ>`ÊÌÌÊÌi
Display up or down as desired.
Clamp
iÛiÀ
/}ÌiÊÌiÊ>«ÊiÛiÀÊÌÊV
the Display in desired position.
TILT DOWN
TILT UP
LOOSEN
TIGHTEN
PULL
M8 Dome Nut (x4)
Star Washer (x4)
ÝÌiÃÊ*>ÌiÊÊÝÓ® ÝÌiÃÊ*>ÌiÊÊÝÓ®
TIP: If the Clamp Lever is obstructed
pull it outwards to disengage the
rachet mechanism.
Step 3. Attaching the Articulated Arm to the Wall
Timber Stud Wall
- Using the Drilling Guide, drill three 5mm (3/16”)
diameter holes, 50mm (2”) deep.
- Secure the Mouting Plate to the wall using the Coach
Bolts and Coach Washers supplied.
Masonry Wall
- Using the Drilling Guide, drill three 10mm (3/8”)
diameter holes, 50mm (2”) deep.
- Secure the Mouting Plate to the wall using the Coach
Bolts, Coach Washers and Anchors supplied.
Coach Bolt
M8 (x3)
Coach Bolt
M8 (x3)
Masonry
Wall
Timber
Stud
Concrete
Anchor (x3)
IMPORTANT:
Use the 4mm Allen Key to loosen
the Security Screw until flush with
the Quick-release Hook
(do not remove).
Step 6. Attaching your Display to the Articulated Arm
Tighten the Security
Screw fully to lock.
Slide the VESA plate onto the
Quick-release Hook.
VESA plate
LOOSEN
TIGHTEN
Rotate the Display into a Horizontal
position as required.
Back of Display
Coach Washer
M8 (x3)
Coach Washer
M8 (x3)
bb
( required)
+/- 5°
OR
Security
Screw
(FLUSH)
Quick-release
Hook
Step 2. Locate Drilling Position
WALL
Double-sided
tape (x2)
Drilling Guide
BACK
Un-fold the Drilling
Guide and open the
Dust Collector.
Peel away the
backing from the
double-sided
adhesive tape.
Position the Drilling Guide vertically
onto the wall using a spirit level.
Choose the location of your Telehook Wall Mount, ensuring that the wall is structurally sound (for a timber stud wall,
locate the stud using a stud detection device). Use the Drilling Guide to mark out the hole centres.
Dust Collector
Drilling Guide
FRONT
Top
Step 4. Fasten Extension Plates to the VESA Plate (optional)
VESA Plate
Only use the Extension Plates if the Display you wish to
mount has a 400x400mm VESA hole mounting configuration.
If not, skip to Step 5. A
AB
B
400mm (16”x16”)
400mm
(16”x16”)
TIGHTEN
FIRMLY
Dome Nut
Extension Plate
VESA Plate
UÊÊV>ÌiÊi>VÊÝÌiÃÊ*>ÌiÊÌ
the VESA Plate (see right).
UÊÊ*ÃÌÊÌiÊ-Ì>ÀÊ7>ÃiÀÃÊÛiÀ
each bolt.
UÊÊ-iVÕÀiÊÌiÊÝÌiÃÊ*>ÌiÃÊÊ
position by tightening the Dome
Nuts firmly using a 14mm (
9/16”)
Socket Wrench or Shifter.
Star Washer
Step 5. Attaching the VESA Plate to your Display
Top of
Display
Back of Display
Choose appropriate Mouting Screws and Washers
from the Hardware supplied to suit your Display.
Mounting Screws (x4) Washers (x4)
VESA plate
Recessed Mounting Holes or
Display with a Curved Rear Panel
Mounting
Screw
Spacer
Bush
Mounting
Hole
Washer
If the Mounting Holes are recessed
into the back of the Display, or the
Display has a curved rear panel, use
the appropriate Spacer Bushes
supplied to pack the Mounting Holes.
NOTE: Ensure the VESA plate is
securely fixed to the display.
Mounting
Hole
