Sida 1/4

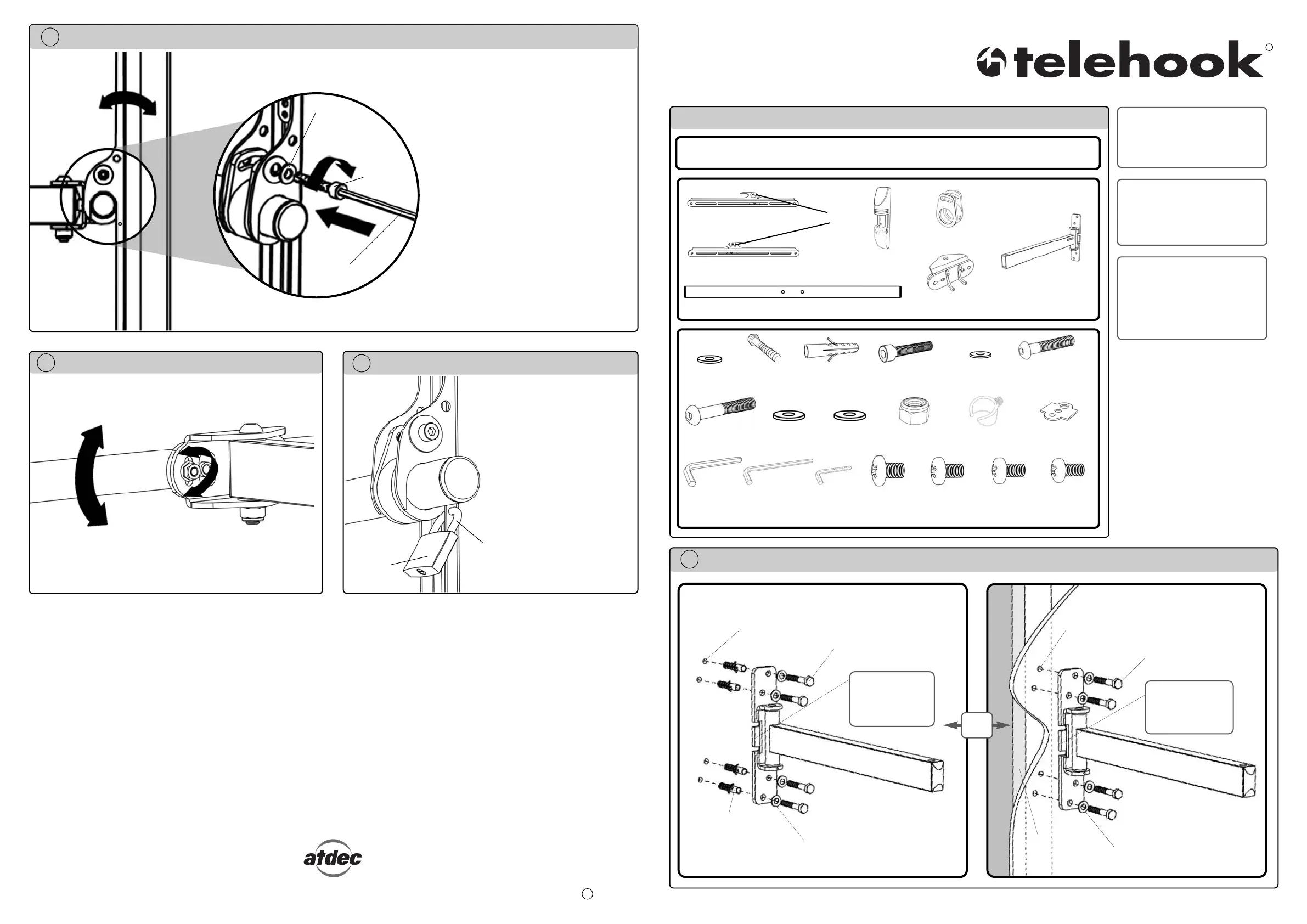

G Fix the Tilt angle of the Display

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 29.08.08 c

Step 1

Fit two M8x45mm Locking screws

into brackets behind Display. Adjust

the Tilt angle of the Display. Tighten

two locking screws with the Long

6mm Allen Key provided.

WARNING: Do not attempt to

adjust tilt angle without firstly

loosening locking screws.

Doing so may damage

product.

M8 Small

Washer

M8x45mm

Screw

Long 6mm

Allen Key

Tighten

A Attach Telehook Swing Arm Unit to the Wall

NOTE:

The manufacturer does

not accept responsibility

for incorrect installation.

Telehook Flat Screen

Wall Mount Swing Arm

supports a maximum

weight of 65kgs (143lbs)

TOOLS REQUIRED:

zPower Drill

z12mm (1/2”) Drill Bit

z7mm (9/32”) Drill Bit

zAdjustable wrench

12mm (1/2”) hole

Wall Plug

Tip: Use a Spirit

Level to ensure

this surface is

vertical.

M10 Coach Screw

M10 Steel Washer

Masonry Wall

Timber Stud Wall

Timber Stud

M10 Coach Screw

Tip: Use a Spirit

Level to ensure

this surface is

vertical.

M10 Steel Washer

7mm (9/32”) hole

H Horizontal Adjustment Feature

TIGHTEN

LOOSEN

If necessary, once the display is mounted, adjust the horizontal

angle as shown.

ADJUST

ANGLE

-5° to 25°

Tilt

Padlock

(not supplied)

5mm (3/16”)

diameter shackle

For added security, you may

choose to attach a padlock

to one or both brackets to

prevent theft of the display.

It is recommended that the

padlock should have a

shackle diameter of 5mm

(3/16

”).

I Security Option

Component Checklist

Wall Mount Horizontal Bar

Wall Mount Bracket (Left)

Wall Mount Bracket (Right)

Slider (x2)

5mm

Allen Key

M10 Steel

Washer (x4)

M8 x45mm

Locking Screws (x2)

Multi

Washer (x6)

M5 x16mm

Mounting

Screws (x6)

M6 x16mm

Mounting

Screws (x6)

M8 x16mm

Mounting

Screws (x6)

M10 Coach

Screw (x4)

M4 x16mm

Mounting

Screws (x6)

Bit Box

IMPORTANT:

Ensure you have received all parts against the component checklist prior to installing.

Clinch Nuts

M12 Steel

Washer

M12 Plastic

Washer (x2)

M12 x80mm

Screw

M12

Locking Nut

Cable Manager

Clip (x4)

8mm

Allen Key

Long 6mm

Allen Key

Wall Mount

Cover Telehook Swing Arm

Pivot Head

Installation Instructions

Flat Screen Wall Mount | Swing Arm

M8 x45mm

Button Screws (x2)

M8 Small

Washer (x2)

Wall Plug (x4)

D Positioning Sliders

Step 1

Accurately position sliders at distance X as recorded in Section A. Ensure the Sliders are equally spaced along the centre Horizontal

Bar.

Slider (x2)

Grub

Screws (x2)

Step 2

Secure slider in

position and tighten

firmly with supplied

Allen Key. Ensure that

it locates into the slot

on the horizontal bar.

The grub screw should

tighten flush to

surface.

C Attaching the Brackets to the Display

M8 Screw Hole

M6 Screw Hole

M5 & M4

Screw Hole

Step 2:

Use the supplied Multi Washer as

shown above. Ensure that the tightest

fitting hole in the washer is used for

the specific sized screw. Note

distance X, for use in the

following steps.

== =

TOP

Clinch Nuts

Multi Washer

Step 1

Attach left and right wall mount brackets to the rear of your display. Select M4, M5, M6 or M8 mounting screws to suit your display.

Ensure a minimum of two mounting screws are used per wall mount bracket. Clinch nuts must be positioned as shown (internally).

B Attach Pivot Head to Swing Arm

Step 1

Slide the Wall Mount Cover along the

Swing Arm until it snap fits onto the

wall plate.

Wall Mount Cover

Step 2

Assemble the Pivot Head

onto the Swing Arm as

shown.

M12 Screw

M12

Locking Nut

M12 Steel

Washer

M12 Plastic

Washer

Wall Plate

End of

Swing Arm

E Attach the Horizontal Bar to Pivot Head

Step 1

Attach the Horizontal Bar and tighten

screws as shown.

M8x45mm

Button Screws

Pivot Head

Horizontal Bar

Step 1

Note: This operation

requires two persons.

Now that the horizontal bar is

attached to the Swing Arm

with the Sliders in place, lift

the Display with brackets

attached and hook the

Brackets over the Sliders.

Note: The brackets should

rest on the horizontal bar

with the slider between the

bracket.

F Mounting the Display

Cable

Manager Clips

Step 2

Attach the four Cable Manager Clips to

the Swing Arm by inserting the clips into

the holes. Ensure that the clips are held

firmly in place.

Swing Arm

Tighten

Distance X

Horizontal Bar

8mm Allen

Key

5mm Allen

Key

Note: make sure

the threaded nut

faces inwards
