Sida 1/2

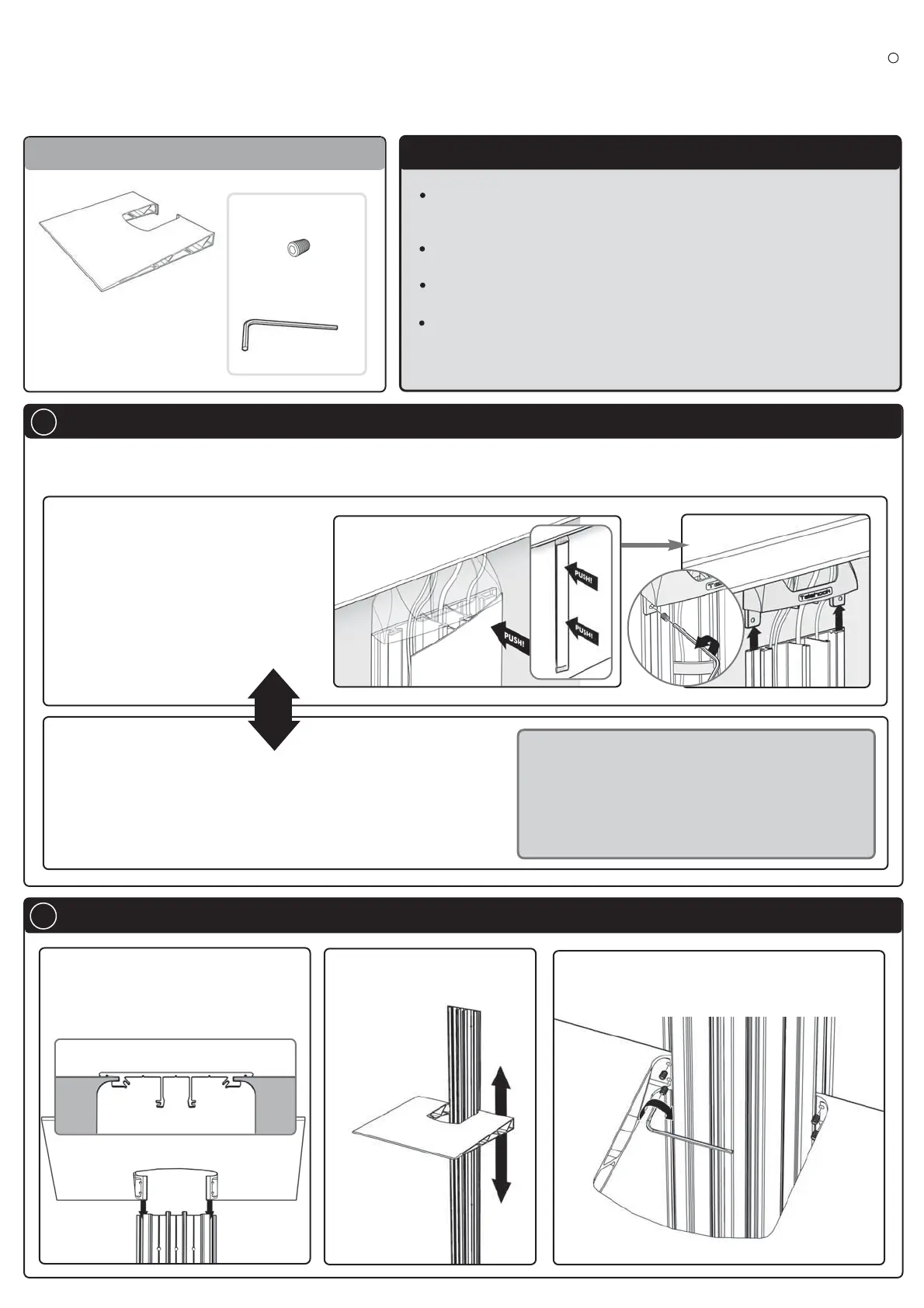

Shelf (x2)

Component Checklist

Installation Instructions

TELEHOOK

Cable Manager Shelf System

Bits Bag

A Installation Options

M4 x 5mm Grub

Screw (x8)

2mm Allen Key

Check you have received

all parts against the

Component Checklist

If you already have the

Telehook Cable Manager

installed.

Begin by removing the Front Fascia and

the End Caps as shown. Once

complete, continue to step B below.

Option 1

If you are installing both

the Telehook Cable Manager and Telehook Cable

Manager Shelf System at the same time.

Begin by mounting the Wall Plate as shown in step A on the

Telehook Cable Manager Installation Instructions. Once complete,

continue to step B below.

Option 2

If your display is already wall mounted, depending on its position, it may be best to remove the display,

as it may interfere with the installation of the Telehook Cable Manager and Cable Manager Shelf System.

B Installing Telehook Cable Manager Shelves

Push one edge of the

Front Fascia until it

pops open

B.1.

Slide the Cable Manager Shelf

onto the Cable Manager Wall

Mount

Adjust the Cable Manager

Shelf to the

desired height

B.2.

Secure in place using the M4 Grub Screws and

the 2mm Allen Key supplied

B.3.

Remove End

Caps

Note:

If the mounted height of the display is

less than the length of the Telehook

Cable Manager, you may need to reduce

the length by cutting it to size.

(Consult a professional at this stage)

TOP VIEW

The Telehook Cable Manager Shelf System MUST be used in

conjunction with the Telehook Cable Manager.

Each Telehook Cable Manager is limited to a maximum of 4 Shelves.

Each Shelf supports a maximum weight of 20kgs (44lbs).

If you wish to paint your Cable Manager Shelves, please consult your

paint specialist for advice.

IMPORTANT NOTES

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 24.09.07©

C Install your Equipment

Install or reinstall your display

Place your Audio/Video equipment on the Telehook Cable Manager Shelves

Connect all required cables to Audio/Video equipment

D Installing Cables

Display on

wall mount

bracket

Wall Plate

Install the display’s cables into the left,

right and centre cable bays as shown

E Insert Cable Clips

Cable

Tab

F Attach End Caps

TOP VIEW

Attach an End Cap onto

both ends of the Wall

Plate and secure in place

using the M4 Grub

Screws as shown.

NOTE:

If possible, separate the display’s

power cable from the data cables

(i.e. hi-fi & speaker cables) by

installing them into separate cable

bays. This will reduce the chance of

electromagnetic interference. The

diagram to the right shows an

example installation setup.

Left cable bay

Centre cable bay

(best for display power cable)

Right cable bay

Data cables

(can also be installed

into the same bay)

TOP VIEW

Using two hands,

flex the End Cap

around the

display’s cables

and manoeuvre

them into their

corresponding End

Cap Cable Bay

End Cap Cable Bay

E.2.

Twist the Cable

Tabs into the small

slots in the Wall

Plate

Display Power

cable

2mm

Allen

Key

Grub

Screw

WARNING: DO

NOT OVER TIGHTEN

G Insert Front Fascia

G.2.

Partially insert the front

fascia as shown above

TOP VIEW

G.3.

Push the edge of the

Front Fascia until it

snaps into place

G.4.

Repeat G.3.

down the

length of the

Front Fascia

until it is firmly

secured onto

the Wall Plate

Installation Complete

Shelf

G.1.

Slide the Front

Fascia through the

cut outs in the

Shelves

Insert the Cable Tabs into

the Wall Plate to Secure

Cables in place.

If required, cables can exit

from the side of the Cable

Manager. In this case, use

the left or right cable bays

only.

Cables exiting from the side

E.1.

Using your

thumb and

index finger,

flex the Cable

Tab into a

concave shape
