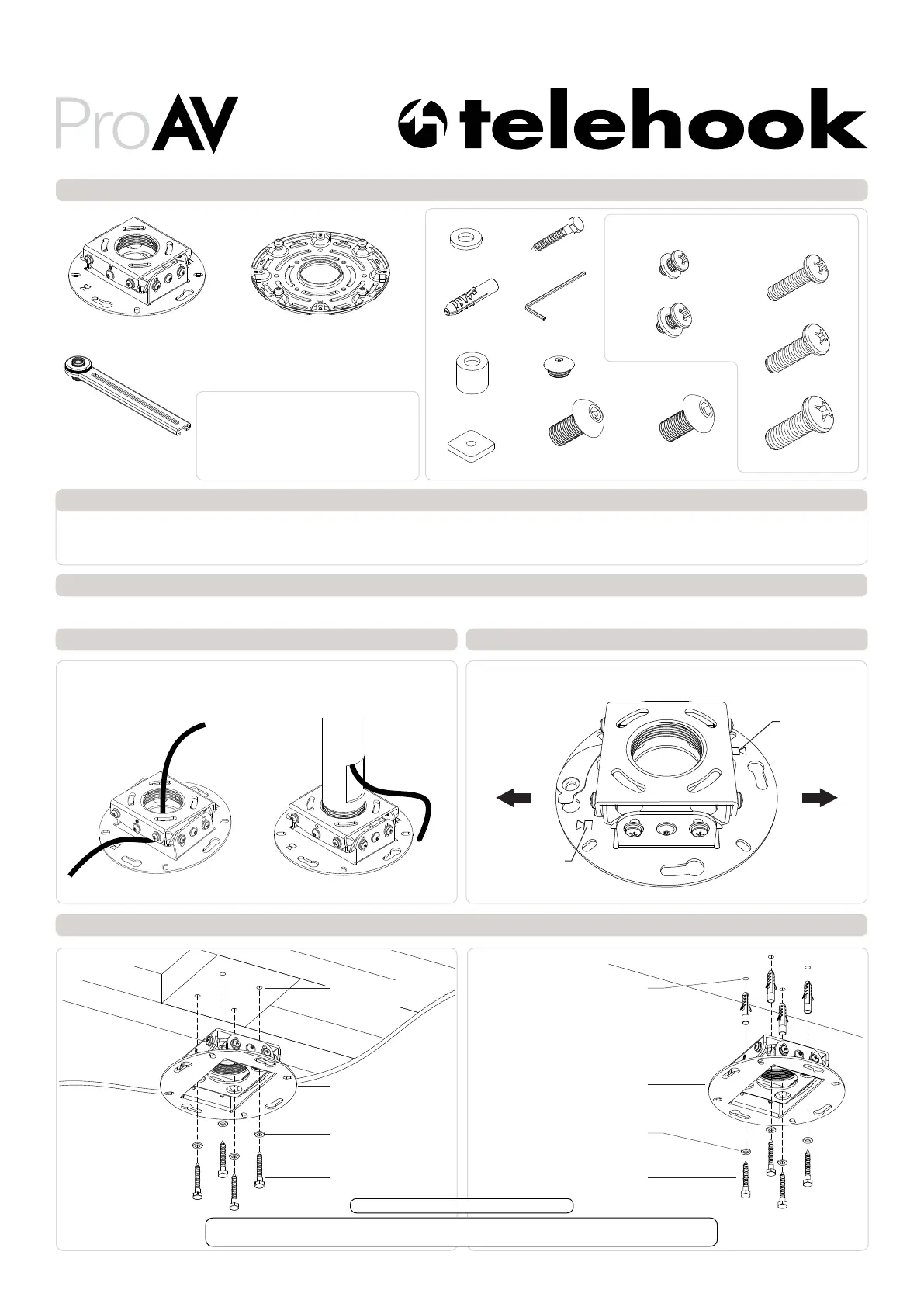

Sida 1/5
M2.5x15mm w/ Washer
M3x15/20mm w/ Washer
TH-PF
Component Checklist
Pro AV Projector Ceiling Mount
Square Nut (x4)
Leg (x4)
Coach Bolt (x4)
Nylon
Anchor (x4)
HARDWARE Projector Mounting Screws (x4 each)
M4x15/20/25mm
M5x15/20/25mm
M6x15/20/25mm
Tools Required:
• Power Drill
• 4mm(0.15”) Drill Bit
• 9mm(0.35”) Masonry Drill Bit
• Phillips Head Screwdriver
• 13mm (0.5”) Socket Wrench/ Shifter
! IMPORTANT - Install Telehook Projector Ceiling Mount as per installation instruction.
! This product supports a maximum load of 25kg (55lbs.).
! The manufacturer accepts no responsibility for incorrect installation.
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received against the component checklist and hardware above.
M6 Washer (x4)
Mount
Step 2. Cable Management
Step 4. Ceiling Mount
Base Plate
10mm Spacer
(x4 each)
M5x10mm Socket
Head Screw (x4)
M5x10mm
Security Screw
3mm Security
Allen Key
Security Cap (x4)
The TH-PF can be mounted flush to a ceiling (Step 4) or to a pole (Step 5).
Before mounting your TH-PF, give consideration to your cable route. The
TH-PF has provision for cable management as shown below.
Step 3. Choosing Orientation
Ensure the Mount is attached with the Projector Marks pointing in the same
direction that the projector will be facing.
Projector Mark
Projector Mark
IMPORTANT! Any structural elements must be capable of supporting the combined weight of
all the equipment and devices being mounted. If in doubt, consult a structural engineer.
Timber Stud Masonry
Coach Bolt
M6 Washer
Mount
TIP: Use Mount as a drilling template.
Coach Bolt
M6 Washer
Mount
Ø9mm x 40mm deep
Drilled Hole
Ø4mm x 35mm deep
Drilled Hole
Installation Instructions
Step 5. Pole Mount
Note: The TH-PF is compatible with 1.5NPT thread.
A range of Pole Accessories are available from Atdec.
1. Install Pole Accessory.
2. Thread mount fully into the end of the Pole.
3. Set the orientation by unwinding the mount. Do
not unwind the mount more than one full turn.
4. Lock the mount in place by tightening the two
security set screws in place using the supplied
security allen key.
Pole Accessory
(Purchased separately
or as part of a kit
from Atdec)
2 MOUNT
4 TIGHTEN
4 TIGHTEN
Step 7. Attach the Legs to the Projector
Leg
Spacer
(optional)
Projector
Projector Mounting
Screw
Note: Washers must be used in conjunction with M2.5 and M3 projector mounting screws.
FOUR FIXING POINTS THREE FIXING POINTS
OR
Step 6. Mounting Projector
Depending on the size of your projector, the
TH-PF has several mounting options available.
Smaller Projectors can be mounted directly to
the Base Plate.
For all other projectors, use the supplied legs.
Projector Mounting
Screw
Base Plate
Projector
Spacer (optional)
Projector Mounting
Screw
Leg
Spacer (optional)
Projector
Washer (optional)
Washer (optional)
Step 8. Height Adjustment
Step 9. Insert Security Caps Step 10. Insert Square Nuts
Security Cap
Insert Security Cap and tighten using the supplied 3mm Security Allen Key.
INSERT
Square Nut
Insert one Square Nut to each leg.
Note: if a difference in height of over 7mm is present use the
spacers provided
+ HEIGHT
- HEIGHT
Rotate the dial of the Leg counter-clockwise to increase height and
clockwise to decrease height.
If the surface of the projector is uneven the height of the legs can
be adjusted to allow the legs to level with each other by turning
the dial on the leg.
7mm Max.
Studs
1. The four studs on the Base Plate should point along the axis
of the projector.
2. Position the Base Plate centrally towards the heaviest part of
the projector so that the weight of the projector is centred and
balanced after mounting.
Step 11. Base Plate Orientation Step 12. Attach Base Plate
Use the supplied 3mm Security Allen Key to tighten the four screws.
Base Plate
M5x10mm Socket
Head Screw
Square Nut
(inside the Leg)
