A General Features
Technical Specifications
Maximum Load:
8kg (17.5lbs) per display.
Display Compatibility:
Visidec Focus Articulated Arm Double is compatible with most
Flat Panel Displays between 12” and 24” (30cm and 61cm)
that feature either 75mm x 75mm or 100mm x 100mm
VESA mounting hole patterns.
Mounting Options:
Visidec Focus Articulated Arm Double includes Bolt Through
and Desk Clamp mounting options. NOTE: Desk Clamp
mounting option is only suitable for displays in side
by side configuration.
Bolt Through
Suits desktop thicknesses of 12mm - 40mm (0.5”-1.5”)
Desk Clamp
Suits desktop thicknesses of 12mm - 38mm (0.5”-1.5”)
6
1
2
4
3
5

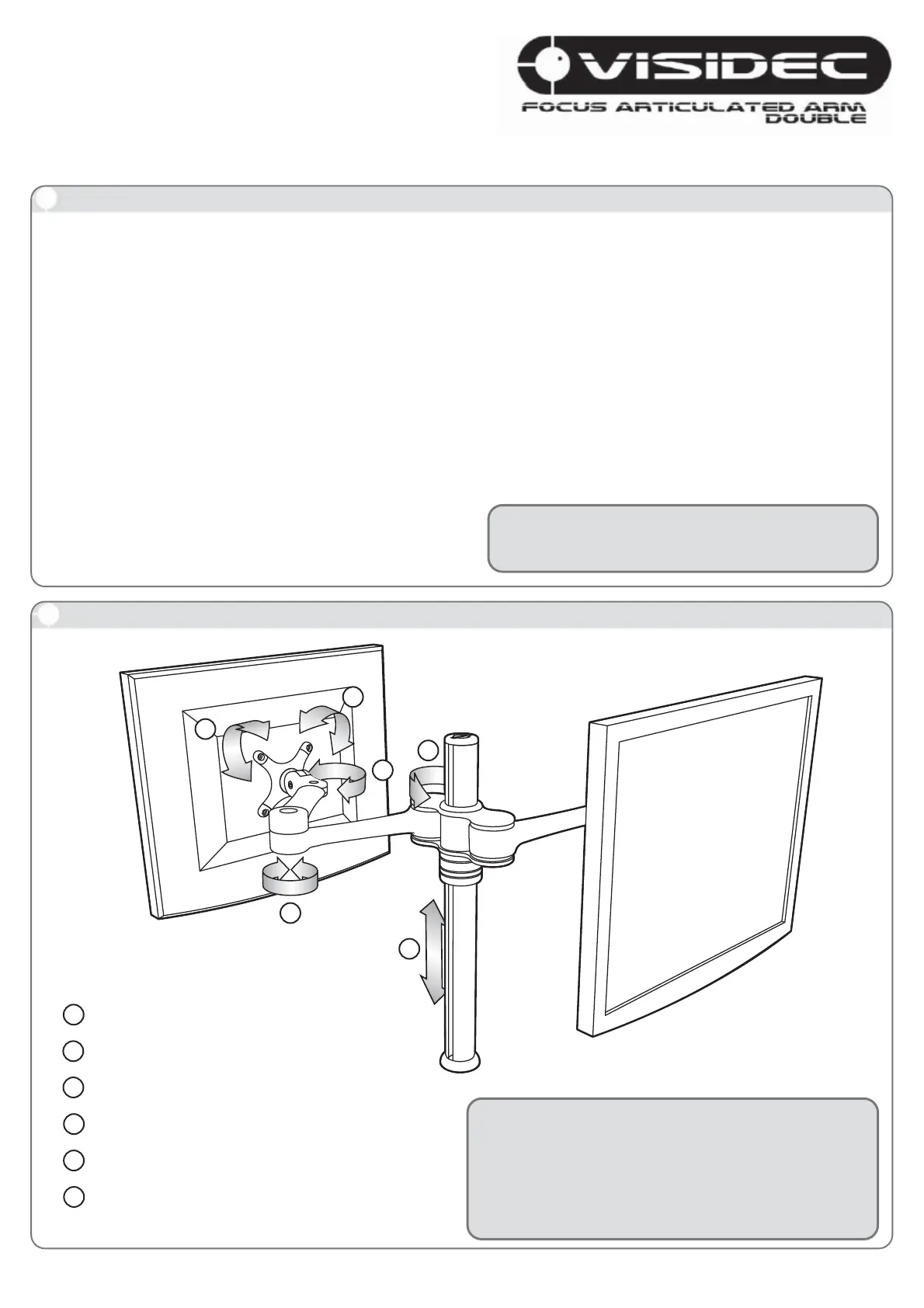

B Range of Movement
Included Hardware:
All fasteners and mounting hardware are included.
Tools Required:
Power drill, 9mm (³/
8”) drill bit, Phillips Head screwdriver.
Cable Management:
Cable management system includes cable slot and cable
management clips.
Colour:
Warranty: 10 years limited
Polished Silver.
IMPORTANT:
Please read the Installation Instructions before
mounting Visidec Focus Articulated Arm Double
1+/-70° tilt adjustment
2 +/-95° portrait/landscape adjustment
3180° pan adjustment
4360° articulation of arms
5240° rotation at shoulder
6315mm (12.5”) height adjustment range
NOTE:
The back to back display configuration shown can
only be used in conjunction with the Bolt Through
mounting option.
The range of movement shown here applies to both
arms of Visidec Focus Articulated Arm Double.
NOTE: The back to back display configuration shown
(below left) can only be used inconjunction with the
Bolt Through mounting option.
The range of movement shown here applies to both
arms of Visidec Focus Articulated Arm Double.
934mm
(360.75”)
90mm
(39
/16
”)
D The FlexiStar™ mechanism
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 20.05.11©
195mm
(7.68”)
54mm
(2.5”)
39mm
(1.5”)
150mm
(5.91”)
467mm
(18.39”)
68mm
(2.68”)
440mm (17.32”)
(450mm (17.75”)
when using Desk Clamp)
C Overall Dimensions
100mm
75mm
75mm
VESA Mounting Plate
in 75mm x 75mm
position
VESA Mounting Plate
in 100mm x 100mm position
100mm
E Min/Max Display Distance
Max.
NOTE:
The Visidec Focus Articulated Arm Double
can be configured so that the displays are
positioned side by side.
The maximum distance from the pole to the
back of the display will be determined by
the size of the displays.
Max.
F Desk Mounting Options
Desk Clamp
Desk Clamp suits desktop thicknesses of 12mm - 38mm (0.5”-1.5”)
39mm
(1.5”)
38mm (1.5”)
65mm
(2.56”)
75mm
(3”)
52mm
(2.05”)
Bolt Through
Bolt Through suits desktop thicknesses of
12mm - 40mm (0.5” -1.5”)
52mm
(2.05”)
12mm (0.5”)
DESK
90mm
(3.54”)
Min.
Max. width
780mm (30.71”)
When positioning displays side-by-side (above)
the maximum display width is 780mm (30.71”)
Maximum distance
to centre of display
440mm (17.32”)
