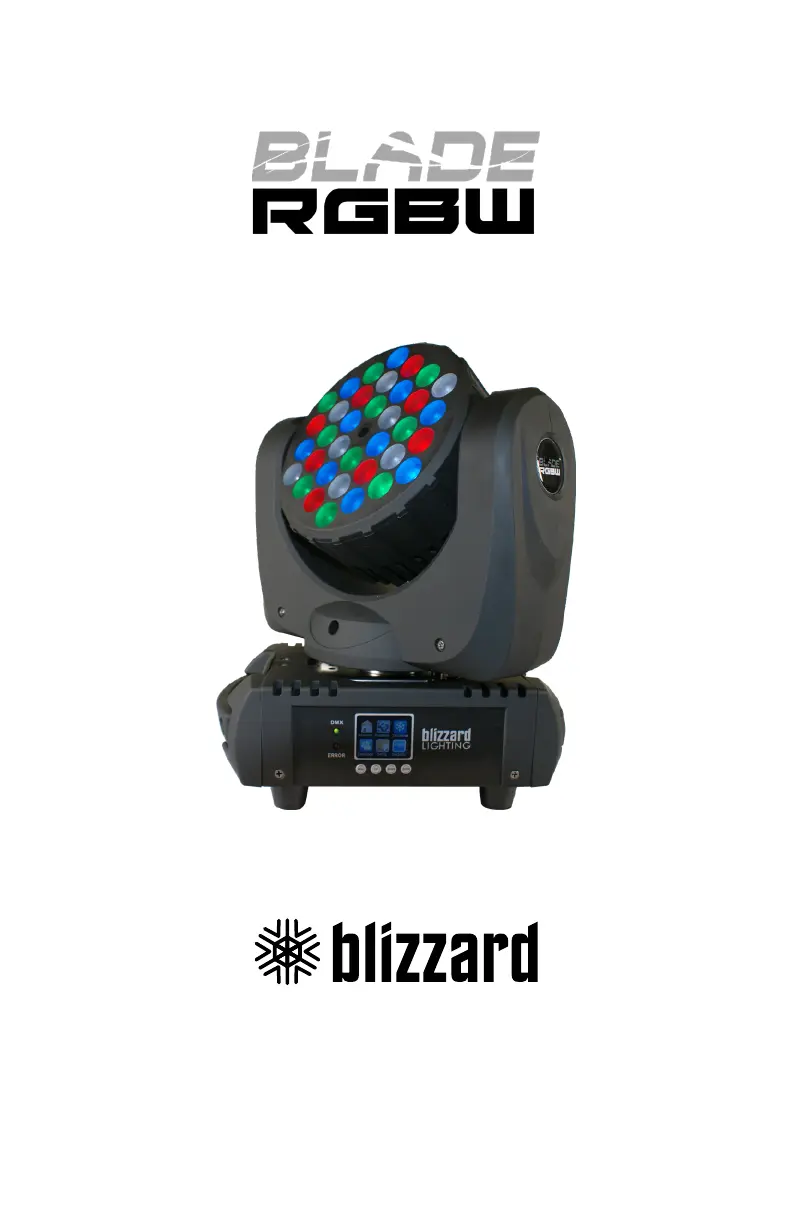

Sida 1/20
Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2021
Page 2
Blade™ RGBW User Manual Rev. C Copyright 2021 Blizzard Lighting, LLC
TABLE OF CONTENTS
Blade™ RGBW 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The Blade™ RGBW 5
Features 5
DMX Quick Reference 5
The Blade™ RGBW Pin-up Picture 7
3. Setup 8
Fuse Replacement 8
Connecting A Bunch Of Blade™ RGBW Fixtures 8
Data/DMX Cables 8
Cable Connectors 9
3-Pin??? 5-Pin??? Huh? 9
Take It To The Next Level: Setting up DMX Control 9
Fixture Linking (Master/Slave Mode) 10
Mounting/Rigging 10
4. Operating Adjustments 11
Navigating The Control Panel 11
Control Panel Menu Structure 12
Address Mode - DMX Channel Selection 14
Run Mode - DMX Mode, Auto and Sound Active 14
Test Mode 14
Setup Mode 15
DMX Channel Values In-Depth 16
Troubleshooting 18
5. Appendix 18
A Quick DMX Lesson 18
Keeping Your Blade™ RGBW As Good As New 19
Returns (Gasp!) 19
Shipping Issues 19
Tech Specs 20
Page 3
Blade™ RGBW User Manual Rev. C Copyright 2021 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• Blade™ RGBW
• An Ever-So-Handy Power Cord
• A Sweet Mounting Bracket
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing one of the coolest, fastest LED xtures you
will nd anywhere! Now that you’re the proud owner of a Blade™ RGBW, you
should carefully unpack the box and check the contents to ensure that all parts
are present and in good condition. If anything looks as if it has been damaged
in transit, notify the shipper immediately and keep the packing material for
inspection. Again, please save the carton and all packing materials. If a xture
must be returned to the factory, it is important that the xture be returned in
the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run
o a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch .
Warning! All xtures must be connected to circuits with a suitable
Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please visit our website at www.blizzardpro.
com/support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information and specications contained in this document are
subject to change without notice. Blizzard Lighting™ assumes no responsibility
or liability for any errors or omissions that may appear in this user manual.
Blizzard Lighting™ reserves the right to update the existing document or to
create a new document to correct any errors or omissions at any time. You can
download the latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 12/6/2012 J. Thomas 3/22/2021
