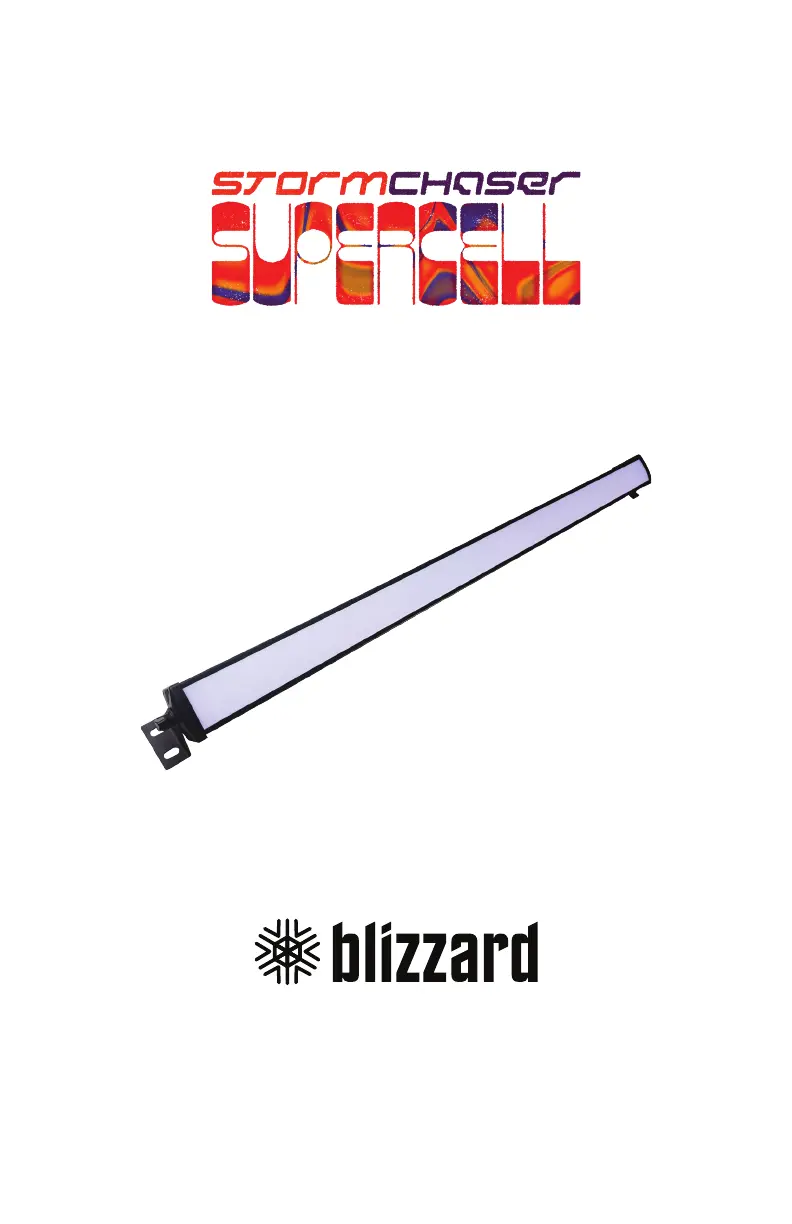

Sida 1/16
Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2020
Page 2
StormChaser™ Supercell Rev. A © 2020 Blizzard Lighting, LLC
TABLE OF CONTENTS
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of the Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet the StormChaser™ Supercell 5
Main Features 5
DMX Quick Reference (7/20/52-Channel Modes) 5
StormChaser™ Supercell Pin-Up Picture 6
The Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of StormChaser™ Supercells 7
Data/DMX Cabling 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Fixture Linking (M/S Mode) 9
Lens Installation 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
Section Identication 11
DMX Mode 12
Starting DMX Address 12
DMX Channel Mode 12
M/S Mode 12
Auto Mode, Sound Active, & Manual Adjustments 12
Auto Programs 12
Sound Active Mode 12
Preset and Manual Colors 12
DMX Values In-Depth 13
Auto Mode Channel Values 13
5. Appendix 14
Keeping Your StormChaser™ Supercell As Good As New 14
Returns (Gasp!) 14
Shipping Issues 14
Tech Specs! 15
Dimensional Drawings 15
Page 3
StormChaser™ Supercell Rev. A © 2020 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x StormChaser™ Supercell
• 1 x PowerCON-Compatible Power Cord
• 3 x Lenses: Frosted (installed), Clear, and Opaque
• A Set of Mounting Brackets + Knobs
• This Lovely User Manual
Getting It Out Of the Box
Congratulations on purchasing one way cool, way exible, way original LED strip
light! Now that you’ve got your StormChaser™ Supercell, you should carefully
unpack the box and check the contents to ensure that all parts are present and
in good condition. If anything looks as if it has been damaged in transit, notify
the shipper immediately and keep the packing material for inspection. Again,
please save the carton and all packing materials. If a xture must be returned
to the factory, it is important that the xture be returned in the original factory
box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run
o a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch.
Warning! All xtures must be connected to circuits with a suitable
Ground (Earthing).
Getting A Hold Of Us
If something happens goes wrong, please visit www.blizzardpro.com/
support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information and specications contained in this document are
subject to change without notice. Blizzard Lighting™ assumes no responsibility
or liability for any errors or omissions that may appear in this user manual.
Blizzard Lighting™ reserves the right to update the existing document or to
create a new document to correct any errors or omissions at any time. You can
download the latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 8/11/2020 J. Thomas 9/9/2020
