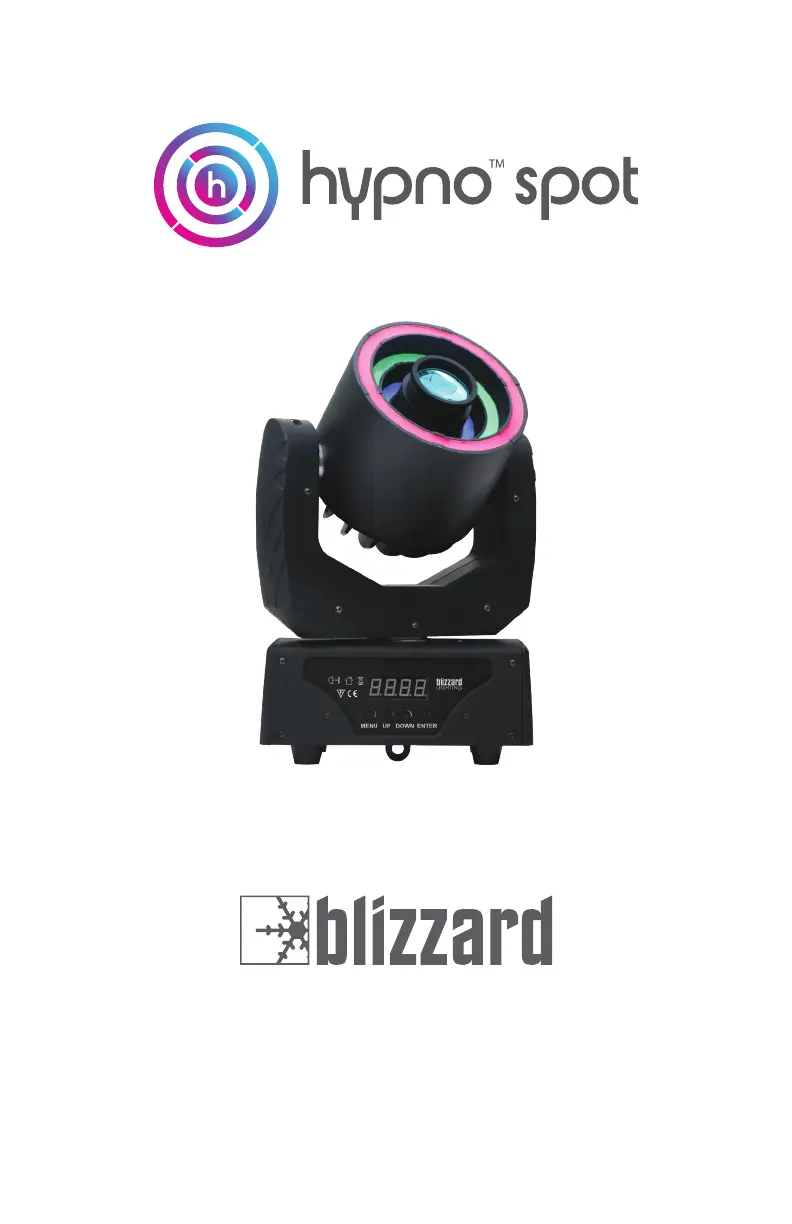

Sida 1/24
Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2019
Page 2
Hypno™ Spot Manual Rev. B © 2019 Blizzard Lighting, LLC
TABLE OF CONTENTS
Hypno™ Spot Moving Head 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The Hypno™ Spot 5
Main Features 5
DMX Quick Reference 5
The Hypno™ Spot Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of Hypno™ Spot Fixtures 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
Mounting Points 10
Clamp Mounting 11
4. Operating Adjustments 12
The Control Panel 12
Control Panel Menu Structure 13
DMX Mode 14
Select The Channel Mode 14
Select The DMX Starting Address 14
Master/Slave Mode Settings 14
Auto, Stand-Alone, Sound Active Modes 14
Auto Mode 14
Sound Active Mode 14
Pan Inverse 15
Tilt Inverse 15
Pan Angle Setting 15
No DMX / Lost Signal Setting 15
DMX Channel Values In-Depth 16
Troubleshooting 17
5. Appendix 18
A Quick DMX Lesson 18
Keeping Your Hypno™ Spot As Good As New 19
Returns (Gasp!) 19
Shipping Issues 19
Tech Specs 20
Dimensional Drawings 21
Colors and Gobos 22
Photometric Data 22
Page 3
Hypno™ Spot Manual Rev. B © 2019 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1 x Hypno™ Spot Fixture
• An Ever-So-Handy Power Cord
• A Sweet Mounting Bracket
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing the Hypno™ Spot moving head. You're all set to deliver a
stunning lighting experience of psychedelic proportions! Now that you’ve got your Hypno™
Spot, you should carefully unpack the box and check the contents to ensure that all parts
are present and in good condition. If anything looks as if it has been damaged in transit,
notify the shipper immediately and keep the packing material for inspection. Again, please
save the carton and all packing materials. If a xture must be returned to the factory, it is
important that the xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run o a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the
xture you receive is suitable for your local power supply. See the label on the xture or
refer to the xture’s specications chart for more information. A xture’s listed current
rating is its average current draw under normal conditions. Check the xture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something happens goes wrong, please visit www.blizzardpro.com/support and open a
support ticket. We’ll be happy to help, honest.
Disclaimer: The information and specications contained in this document are subject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any
errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the
right to update the existing document or to create a new document to correct any errors
or omissions at any time. You can download the latest version of this document from www.
blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 8/9/2017 J. Thomas 5/7/2019
