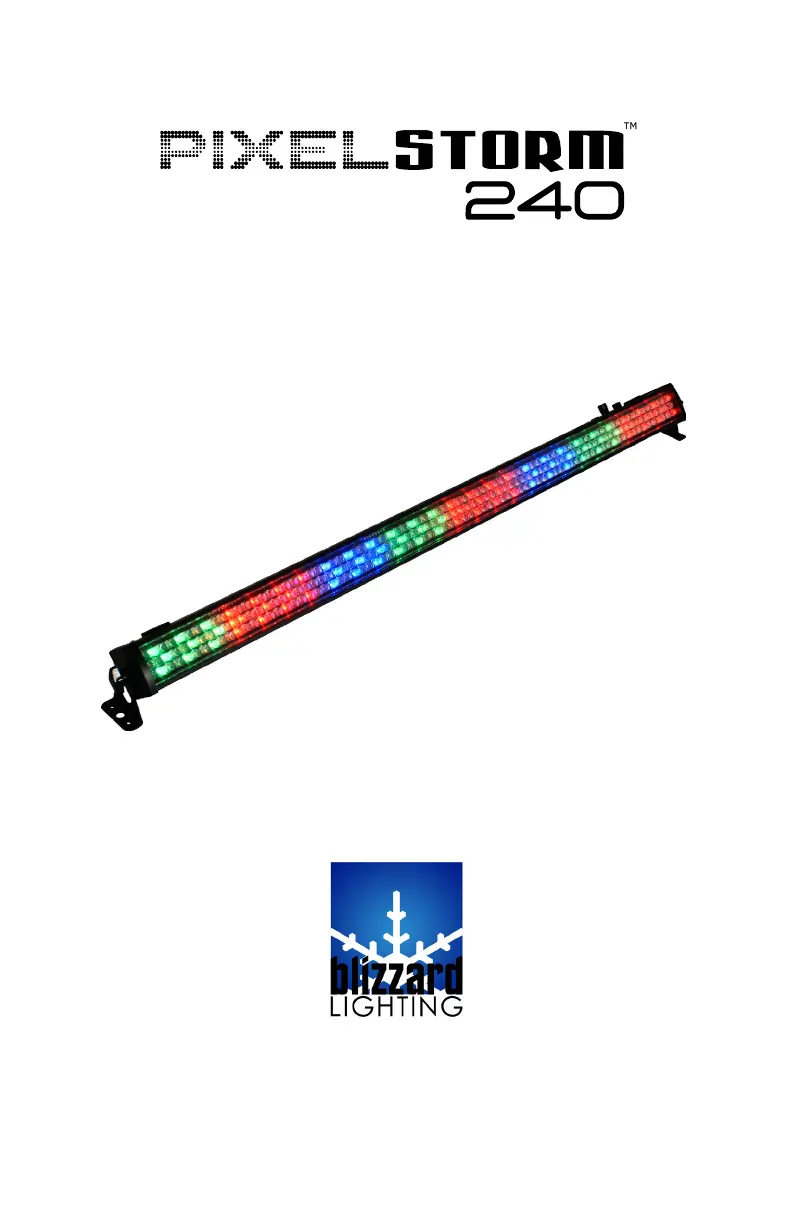

Sida 1/20
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2012
Page 2
PixelStorm™ 240 Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC
TABLE OF CONTENTS
PixelStorm™ 240 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The PixelStorm™ 240 5
Features 5
DMX Quick Reference 5
The PixelStorm™ 240 Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of PixelStorm™ 240’s 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
Setting the DMX Channel Mode 12
Setting the DMX Address 12
Built-in Progams 12
Flash and Fade Modes 12
Auto Mode 12
Sound Active Mode 12
Custom Color Adjustments 12
Slave Mode 12
DMX Values In-Depth 13
5. Appendix 15
A Quick DMX Lesson 15
Troubleshooting 15
Keeping Your PixelStorm™ 240 As Good As New 16
Returns (Gasp!) 16
Shipping Issues 16
Tech Specs 17
Page 3
PixelStorm™ 240 Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
•1xPixelStorm™240
•2xMountingbracketsw/bolts&washers
•AnEver-So-HandyPowerCord
•ThisLovelyUserManual
Getting It Out Of The Box
Congratulations on purchasing one trippy pixel strippy! Now that you’ve
got your PixelStorm™ 240 (or hopefully, ), you should PixelStorms 240’s!
carefully unpack the box and check the contents to ensure that all parts
are present and in good condition. If anything looks as if it has been
damaged in transit, notify the shipper immediately and keep the pack-
ing material for inspection. Again, please save the carton and all packing
materials.Ifaxturemustbereturnedtothefactory,itisimportantthat
thexturebereturnedintheoriginalfactoryboxandpacking.
Powering Up!
Allxturesmustbepowereddirectlyoffaswitchedcircuitandcannot
be run off a rheostat (variable resistor) or dimmer circuit, even if
the rheostat or dimmer channel is used solely for a 0% to 100%
switch.
AC Voltage Switch -Notallxtureshaveavoltageselectswitch,soplease
verifythatthextureyoureceiveissuitableforyourlocalpowersupply.
Seethelabelonthextureorrefertothexture’sspecicationschartfor
moreinformation.Axture’slistedcurrentratingisitsaveragecurrent
drawundernormalconditions.Checkthextureordevicecarefullyto
make sure that if a voltage selection switch exists that it is set to the cor-
rect line voltage you will use.
Warning! Verify that the voltage select switch on your unit match-
es the line voltage applied. Damage to your xture may result if
the line voltage applied does not match the voltage indicated on
the voltage selector switch. All xtures must be connected to cir-
cuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email. We’ll
be happy to help, honest.
Blizzard Lighting
W220N1531JerichoCt.SuiteE,Waukesha,WI53186USA
support@blizzardlighting.com
www.blizzardlighting.com
866-493-6025
