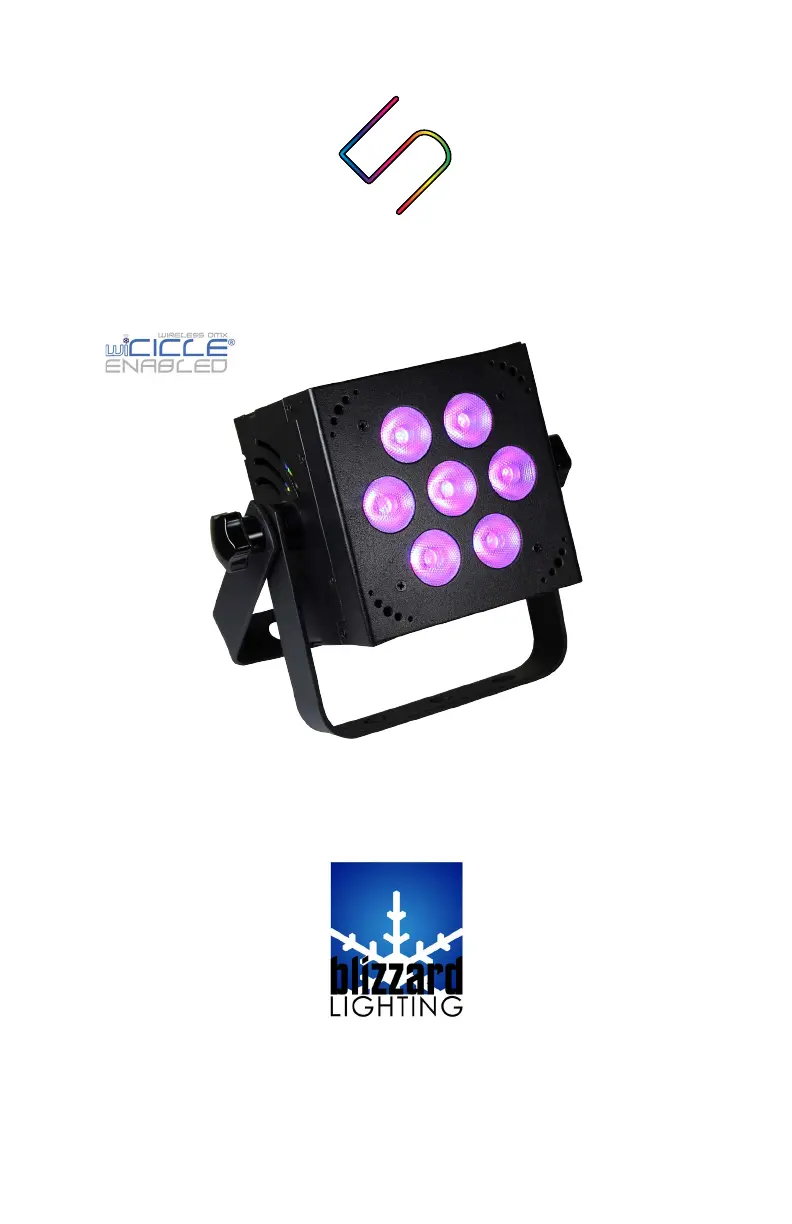

Sida 1/20
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2013
HOTBOX
R G B A W / R G B V W
TM
Page 2
HotBox 5 RGBAW/RGBVW Manual Rev. A Copyright © 2013 Blizzard Lighting, LLC
TABLE OF CONTENTS
HotBox™ 5 1
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4
2. Meet The HotBox™ 5 5
Features 5
DMX Quick Reference 5
The HotBox™ 5 Pin-up Picture 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch Of HotBox™ 5 Fixtures 7
Data/DMX Cables 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh? 8
Take It To The Next Level: Setting up DMX Control 8
Fixture Linking (Master/Slave Mode) 9
Mounting/Rigging 9
UsingthisxturewiththewiCICLE®WirelessDMXSystem 10
4. Operating Adjustments 12
Navigating The Control Panel 12
Control Panel Menu Structure 13
DMX Mode 14
Master/Slave Mode 14
Sound Active Mode 14
Standalone (Program) Mode 14
Manual Color Adjustment 14
DMX Channel Values In-Depth 15
Troubleshooting 16
5. Appendix 17
A Quick DMX Lesson 17
Keeping Your HotBox™ 5 As Good As New 18
Returns (Gasp!) 18
Shipping Issues 18
Tech Specs 19
Page 3
HotBox 5 RGBAW/RGBVW Manual Rev. A Copyright © 2013 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
•1xHotBox™5RGBAWorRGBVW(UV)ProfessionalLEDFixture
•Atotallyrockin’DMXCable
•ThisLovelyUserManual
Getting It Out Of The Box
Congratulationsonpurchasingoneofthemostrockingbox-shapedPARxturesany-
where!Nowthatyou’vegotyourHotBox™5RGBAWorRGBVWxture(orhopefully,
both!), you should carefully unpack the box and check the contents to ensure that all
parts are present and in good condition. If anything looks as if it has been damaged in
transit, notify the shipper immediately and keep the packing material for inspection.
Again,pleasesavethecartonandallpackingmaterials.Ifaxturemustbereturned
tothefactory,itisimportantthatthexturebereturnedintheoriginalfactoryboxand
packing.
Powering Up!
Allxturesmustbepowereddirectlyoffaswitchedcircuitandcannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythat
thextureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthe
xtureorrefertothexture’sspecicationschartformoreinformation.Axture’s
listed current rating is its average current draw under normal conditions. Check the
xtureordevicecarefullytomakesurethatifavoltageselectionswitchexiststhatitis
set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied
does not match the voltage indicated on the voltage selector switch. All
xtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email. We’ll be happy to
help, honest.
Blizzard Lighting
N16W23390StoneridgeDr.SuiteE
Waukesha, WI 53188 USA
www.blizzardlighting.com
414-395-8365
Email:support@blizzardlighting.com
Disclaimer:Theinformationandspecicationscontainedinthisdocumentaresubject
to change without notice. Blizzard Lighting™ assumes no responsibility or liability
for any errors or omissions that may appear in this user manual. Blizzard Lighting™
reserves the right to update the existing document or to create a new document to
correct any errors or omissions at any time. You can download the latest version of this
document from www.blizzardlighting.com.
Author: Date: Last Edited: Date:
J. Thomas 7/30/2013 J. Thomas 7/30/2013
