Sida 1/12

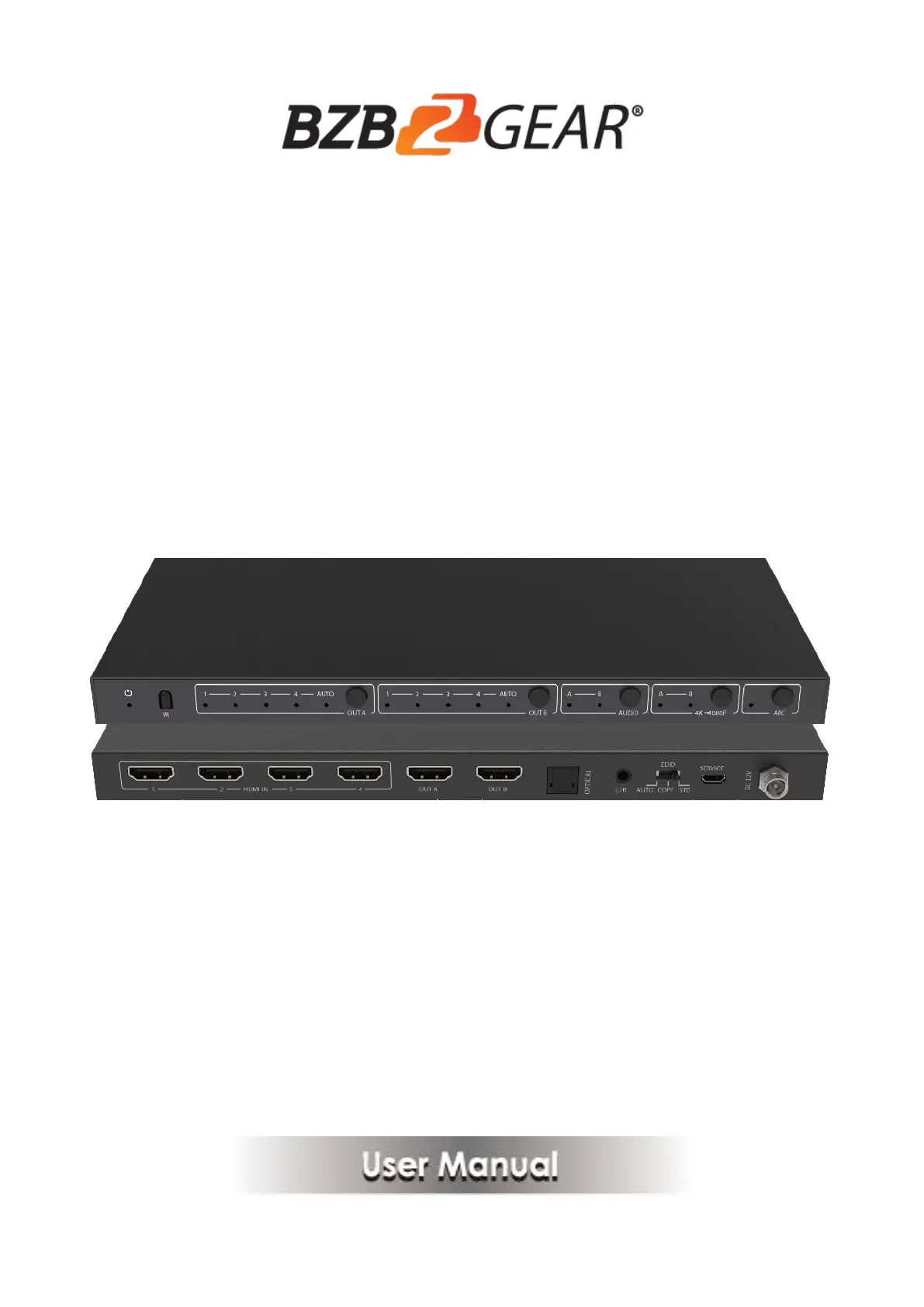

BG-UHD-42M
4x2 HDMI 2 Matrix Switcher with Audio .0
Extract/Scale ARC/EDID function /
2
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction .............................................................................................................. 2
2. Features .................................................................................................................... 3
3. Package Contents ..................................................................................................... 3
4. Specifications............................................................................................................ 4
5. Operation Controls and Functions ........................................................................... 5
5.1 Front Panel....................................................................................................... 5
5.2 Rear Panel ........................................................................................................ 6
6. IR Remote ................................................................................................................. 7
7. Application Example .............................................................................................. 10
8. FAQ .......................................................................................................................... 10
9. Mission Statement …………………………………………..……………………11
10. Warranty Information ………………………………………………………...…11
3
1. Introduction
The -UHD- HDMI Matrix Switcher can switch any of four HDMI sources BZ 42M
to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4
and HDCP 2.2. It can extract HDMI source device audio to optical and analog
L/R output. It supports 4K 1080P downscale function if source is 4K but TV →
only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/
STD) function. With its 18Gbps bandwidth and the additional features with
latest HDMI standards. Flexible control via front panel buttons and IR remote.
2. Features
☆ HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Supports 4 HDMI inputs and 2 HDMI outputs
☆ Video resolution up to 4K2K@60Hz YCbCr 4:4:4
☆ Supports 18Gbps uncompressed bandwidth on all HDMI
☆ Supports Dolby Vision, HDR 10+, HLG and CEC function
☆ Supports extract HDMI input source device audio of OUT A or OUT B
to optical and analog L/R output
☆ OUT A and OUT B support 4K to 1080P downscale function
☆ Supports ARC (Audio Return Channel) function
☆ Supports advanced EDID management including AUTO, COPY and STD
☆ Control is via front panel buttons and IR remote
3. Package Contents
① × × 1 4 2 HDMI2.0 Matrix Switcher
② × 1 12V/1A Locking Power Adapter
