BZBGear BG-UM44-100M Bruksanvisning
Läs nedan 📖 manual på svenska för BZBGear BG-UM44-100M (32 sidor) i kategorin Router. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/32

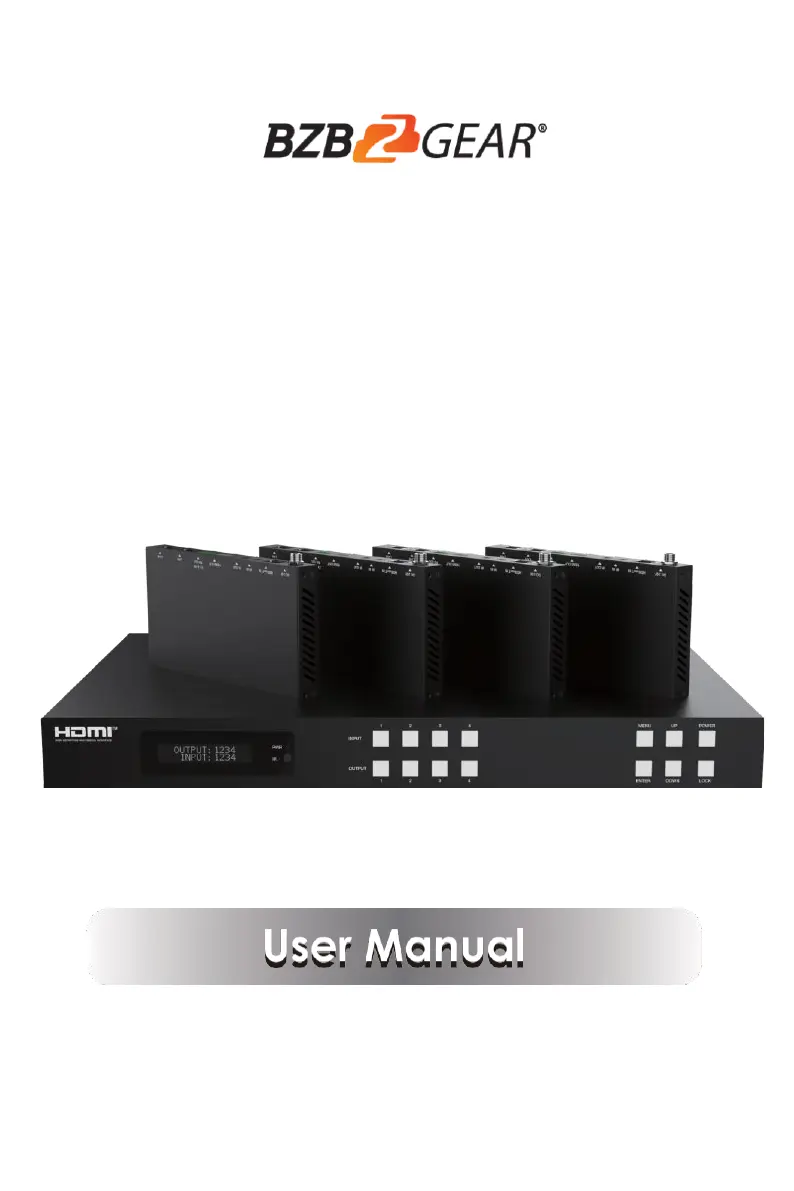

BG-UM44- - 100M KIT
18Gbps 4x4 HDBaseT (100M) Matrix
with ARC Function
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting,
operating, or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
Table of Contents
1. Introduction. ....................................................................................................................
1
2. Features. ..........................................................................................................................
1
3. Package Contents. ..........................................................................................................
2
4. Specifications. .................................................................................................................
2
5. and Functions. Operation Controls ...............................................................................
4
5.1. Matrix Panel. ...........................................................................................................
4
5.2. HDBaseT Receiver Panel.......................................................................................
6
6. IR Remote.........................................................................................................................
7
7. IR Control System. ..........................................................................................................
9
8. IR Cable Pin Assignment................................................................................................
11
9. Management. EDID ........................................................................................................
11
10. 232 Introduction. -Matrix Audio and RS .......................................................................
13
11. Web GUI User Guide. ....................................................................................................
14
12. 232 Control Command. -RS ...........................................................................................
22
13. Application Example. ....................................................................................................
29
14. Warranty.........................................................................................................................
30
15. Mission Statement.........................................................................................................
30
- 1 30 -/
1. Introduction
The 18Gbps 4x 4 HDBaseT (100M) Matrix can connect four HDMI sources to eight displays. It
features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output
which runs simultaneously. HDBaseT output can extend video transmission distance up to
328ft / 100m via a single cat5e/6/7 cable and the resolution is up to 4K@60Hz 4:4:4.
The product supports IR matrix and Audio matrix. With ARC function, it can return the audio
signal from HDMI or HDBaseT display device to coaxial audio and analog audio outputs
using orWeb GUI ASCII code control. can It also extract the audio signal source from HDMI
device to analog audio and coaxial audio outputs using Web GUI or ASCII code control.
Moreover, the product supports bi- -232 function. The directional IR and RS product features
an intuitive set of front panel controls with OLED screen as well as control via IR remote, RS-
232, LAN, and Web GUI.
2. Features
☆ HDCP 2.2 and HDCP 1.4 compliant
☆ 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
☆ HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
☆ Support 18Gbps lossless compressed HDBaseT signal transmission
☆ Support 4K->1080P Down Scaler
☆ Dolby Vision, HDR10+, HLG
☆ HDBaseT output can extend video transmission distance up to 328ft / 100 meters via a
single cat5e/6/7 cable and the resolution is up to 4K@60Hz 4:4:4.
☆ HDMI audio pass HD - -through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS
Master Audio)
☆ Support ARC function on local HDMI and HDBaseT output ports
☆ IR matrix and Audio matrix
☆ Smart EDID management
☆ 24V POC on all HDBaseT ports
☆ Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI
