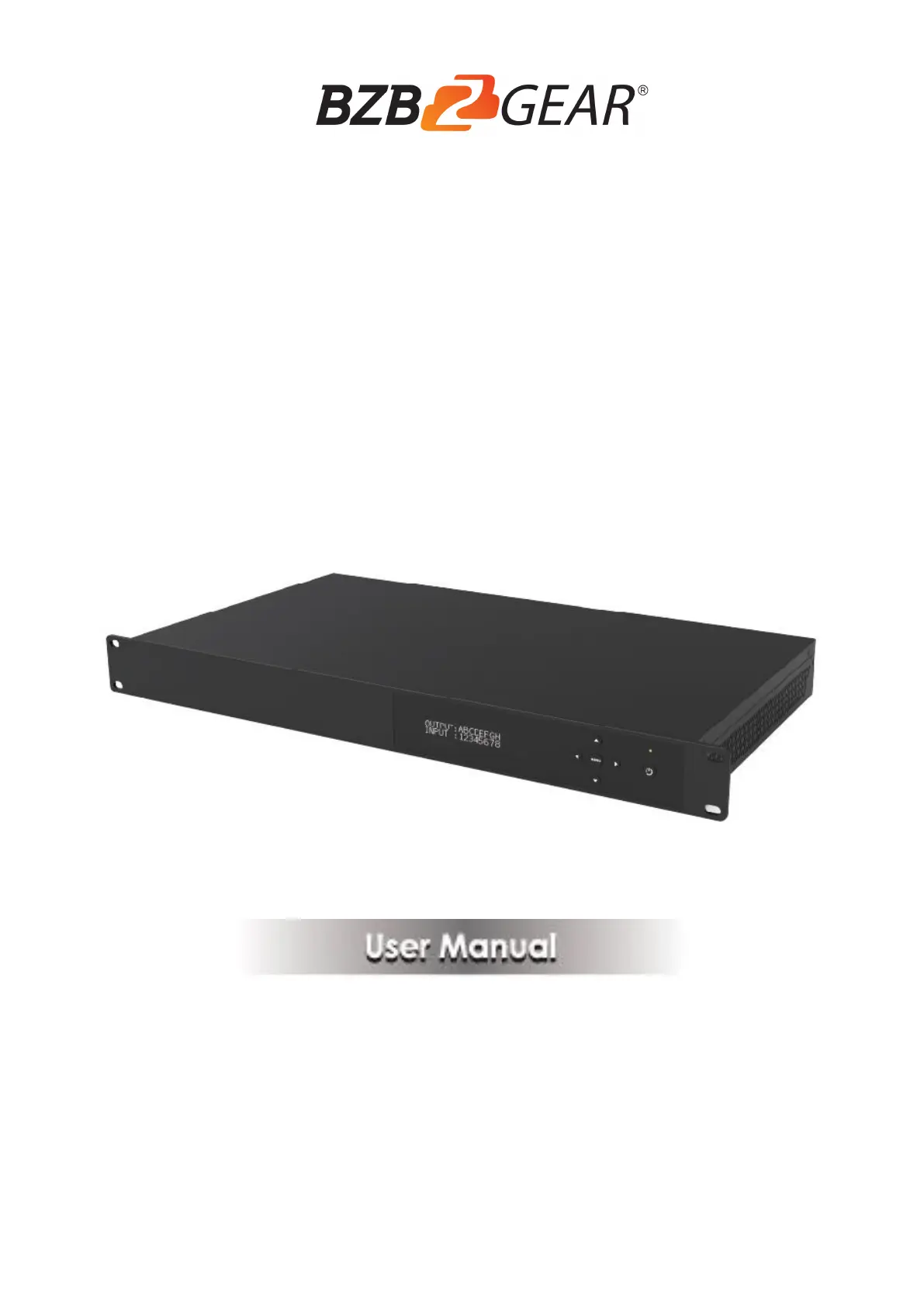

BG-UM-88ANS
8x8 HDMI 18Gbps Matrix
with Audio De-embedded
2
Thank you for purchasing this product
For opmum performance and safety, please read these instrucons carefully before
connecng, operang or adjusng this product. Please keep this
manual for future reference.
Surge protecon device recommended
This product contains sensive electrical components that may be damaged
by electrical spikes, surges, electric shook, lighng strikes, etc. Use of surge
protecon systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introducon ....................................................................................................... 3
2. Features ............................................................................................................. 3
3. Package Contents ............................................................................................... 3
4. Specicaons ..................................................................................................... 4
5. Operaon Controls and Funcons ...................................................................... 5
5.1 Front Panel ................................................................................................ 5
5.2 Rear Panel .................................................................................................. 8
6. Remote Control ................................................................................ .................. 9
7. Web GUI User Guide ........................................................................ .................. 9
8. FAQ ........................................................................................................ ........... 17
9. Applicaon Example ................................................................................... ....... 18
Warranty / Mission Statement ................................................................. .......... 19
3
1. Introducon
The 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz
YUV 4:4:4, 18Gbps, HDCP 2.2) and mul-channel digital audio from 8 HDMI
sources to 8 HDMI displays. Audio de-embedded is supported from 8 HDMI
output ports. Control is via buon, IR, RS-232, LAN and Web GUI.
2. Features
☆HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
☆Up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
☆Supports pass-through audio up to 7.1 channels of High Denion audio
(LPCM, Dolby TrueHD, and DTS-HD Master Audio)
☆Audio de-embedded is supported via coax port
☆HDR, CEC and smart EDID management supported
☆Control is via on-panel Button, IR, RS-232, LAN and Web UI
☆1U rack mounted design with metal enclosure
3. Package Contents
①1x 8x8 HDMI Matrix
②1x 12V/3A Locking Power Adaptor
③1x Remote Control
④1x Wideband IR Receiver cable
⑤1x RS-232 male to female serial cable
⑥1x User Manual
