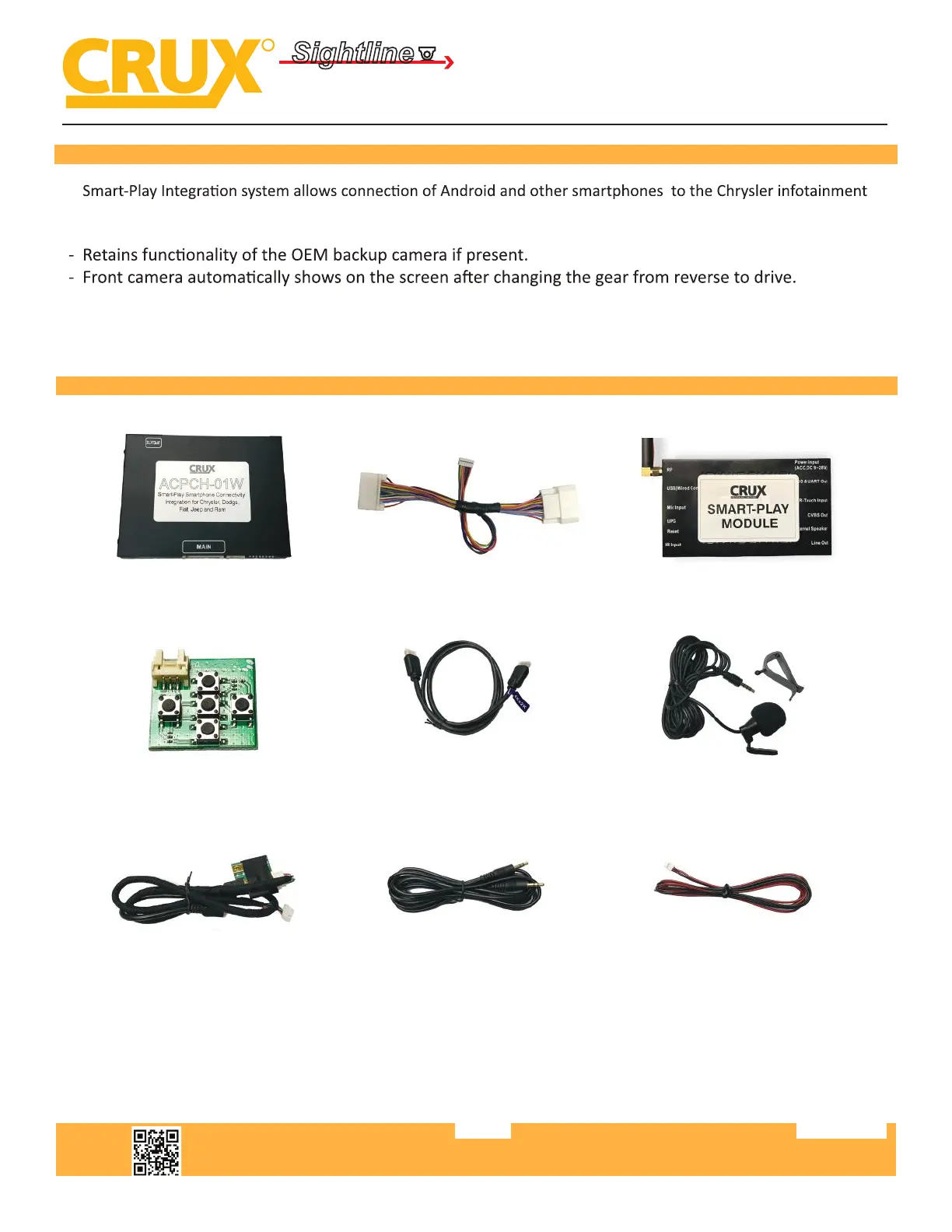

Sida 1/10
ACPCH-01
Smart-Play Integration with Multi Camera Inputs
for Select 2011-2017 Chrysler, Dodge, Fiat & Maserati Vehicles with Uconnect
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050520
1 of 10
- Smart-Play Integraon system allows connecon of Android and other smartphones to the Chrysler infotainment
system.
- Made for Android Auto and CarPlay.
- Adds front and rear aermarket camera inputs.
- Retains funconality of the OEM backup camera if present.
- Front camera automacally shows on the screen aer changing the gear from reverse to drive.
- Forced view of front camera capability.
PRODUCT FEATURES:
ACPCH-01 Module Power Harnesses Smartphone Interface Module
OSD Controller 4K HDMI Cable Microphone
LVDS Video Cable 3.5mm Aux Cable Smart-Play Module Power Harness
PARTS INCLUDED:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0505202 of 10
WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MAIN
ACPCH-01
Smart-Play / Android Auto Integration
for Chrysler & Dodge with Uconnect Systems
INT ERFAC ING SOL UTI ONS
V IDEO
REAR CAMERA
FRONT CAMERA
Front Camera Manual Trigger
Front Camera
12V Power & Ground
Rear Camera
12V Power & Ground
Rear Camera Manual Trigger
OSD
CONTROL
PAD
OSD Control Pad is used to
adjust the settings. Must be
unplugged and stored after use.
LVDS
Adapter
Cable
5A Fuse
Red
Red
Black
Black
Multi/IO
HDMI
Smart-Play Module
IN TER FACI NG S O LUT IO N S
HDMI
Power Port
+12V ACC (Red)
GND (Black)
Aux Cable
To factory
Aux Input
Microphone
OEM Smartphone
Cable
To Smartphone
USB Extension
Cable
To Cigarette
Lighter Wires
Blue
Green
TO RADIO
WHITE
22-PIN
(MALE)
WHITE
22-PIN
(FEMALE)
TO FACTORY
HARNESS
LVDS Video
Extension Board
To Radio
From Radio
CAN Extension
Board
LVDS Cable
ACPCH-01
Smart-Play Integration with Multi Camera Inputs
for Select 2011-2017 Chrysler, Dodge, Fiat & Maserati Vehicles with Uconnect
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0505203 of 10
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPCH-01
Smart-Play Integration with Multi Camera Inputs
for Select 2011-2017 Chrysler, Dodge, Fiat & Maserati Vehicles with Uconnect
DIP SWITCH SETTINGS:
Note: ON is down and OFF is up
8.4” Screen
4” Screen
