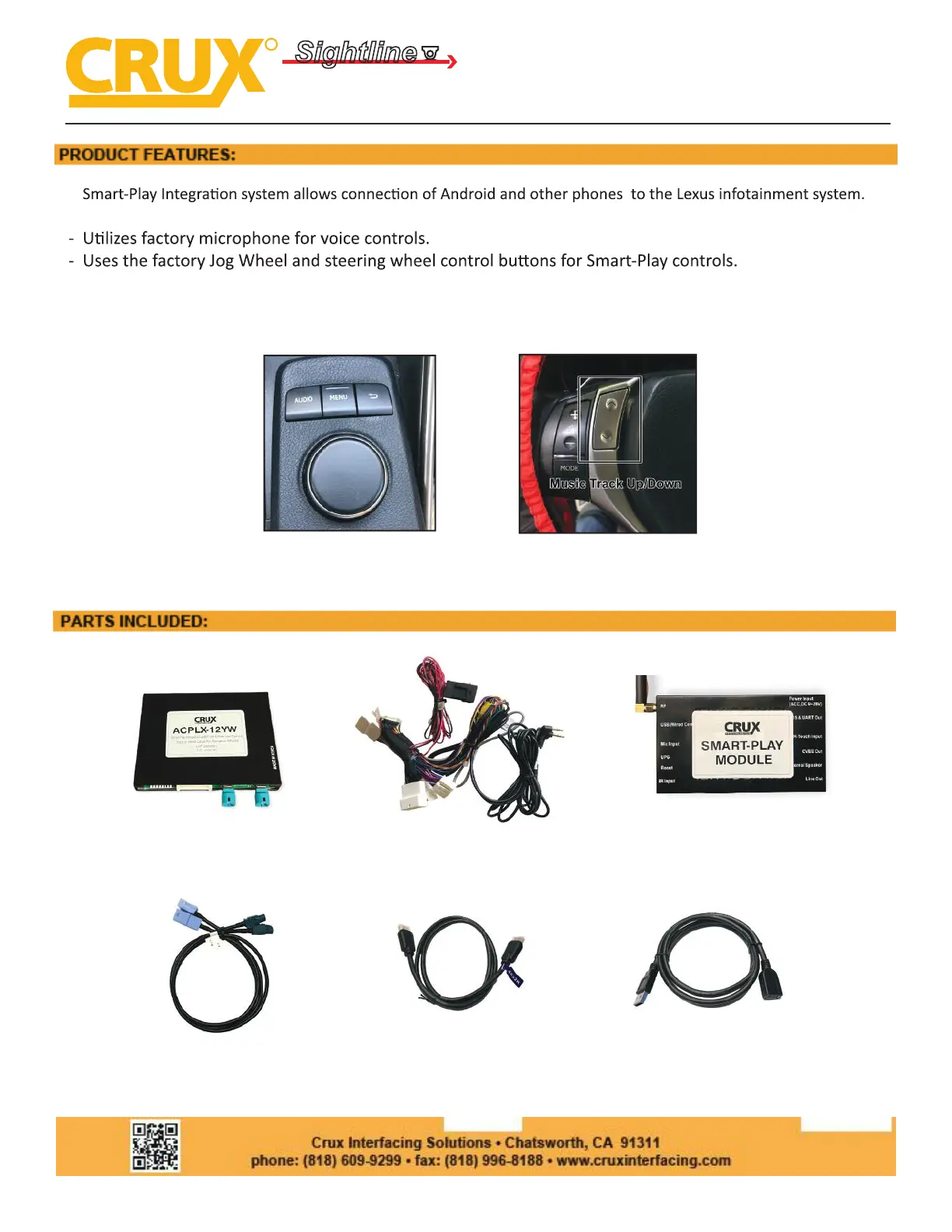

Sida 1/9
ACPLX-12YW
Smart-Play Inte ation for Select 2014-2020gr
Lexus Vehicles without OEM Navigation
rev.061320221 of 9
-
- Integrates Wired/Wireless Android Auto and CarPlay.
- Connects to the factory Aux Input.
ACPLX-12YW Module Main Harnesses Smart-Play Interface Module
GVIF Video Cables 4K HDMI Cable USB Extension Cable
(Optional)
Jog Wheel Controls Steering Wheel Controls
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
rev.061320222 of 9
ACPLX-12YW
Smart-Play Inte ation for Select 2014-2020gr
Lexus Vehicles without OEM Navigation
carplay or
wired AA
MAIN
ACPL X-12 YW
Smart-Play / Android Auto Integration
for Lexus Vehicles without Nav
INTER FACING SO LUTIONS
Multi/IO
HDMI
Smart-Play Module
INTERFACING SOLUTIONS
HDMI
Power Port
Original Smartphone
Cable To Smartphone
GVIF
IN
GVIF
OUT
To the 24-pin connector
behind factory radio
From the 24-pin connector
behind factory radio
To factory screen
From factory screen
OUT
IN
Smart-Play
Power
Utilizes factory
microphone
MIC
USB
To the 28-pin connector
behind factory radio
From the 28-pin connector
behind factory radio
Line Out (Aux)
To the 24-pin connector
behind factory screen
From the 24-pin connector
behind factory screen
Tap here for camera power
Red = 12V ACC
Black = Ground
Audio Aux Input
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
rev.06132022
3 of 9
ACPLX-12YW
Smart-Play Integration for Select 2014-2020
Lexus Vehicles without OEM Navigation
DIP SETTING VEHICLE
2, 5, & 7 DOWN (rest UP) 2010~2019 RX 8”, 2015 NX 7”, 2013~2019 IS 7”, 2013~2019 RC 7
2013~2018 ES 8”, CT 7” 2014~2017, 2014~2020 GS 8”
2, 5, & 6 DOWN (rest UP) 2011~2013 CT200 7”
2, 5, 6, & 7 DOWN (rest UP) 2013~2018 ES 8” (Type 2)
4* DOWN
work
Set “CP” to 1024 x 600
Set “AA” to 1024 X 600
Set “Android Auto Link:”
to ON for Android Auto
Have Andriod AutoLink OFF .
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
WIRELESS CARPLAY/WIRELESS ANDROID AUTO CONNECTION SETTINGS
