installation instructions
E-PlEx® 3 00 sEriEs narrow stilE lockx
2
TABLE OF CONTENTS
E-PLEX 3x65 Deadlatch/Exit Mortise Model
E-PLEX 3x66 Deadbolt/Swing Bolt Mortise Model
This lock is designed to function with new or existing Adams Rite
® Hardware
for Deadlatch, Deadbolt, and Exit applications. These Adams Rite Hardware
models (1850, 1950, 4500, 4700, 4900, MS1850S, MS1950S, and 8400 Series)
are sold separately. The specific applications for this model are for narrow stile
aluminum and glass doors, 2” minimum width and 1 3⁄4” thick.
Shipping Package Includes (See Figure 1):
• (1) E-Plex 3x00 Lock Assembly
• (1) Outside Lever (Lever Model Only)
• (1) Screw Pack
• (1) Battery Housing with four AA Batteries (alkaline)
• (2) Keys (Schlage C or Kaba 90 Keyway)
• Documentation pack consists of:
(1) Installation Instructions (this manual)
(1) Operations Manual
(1) Lock Set-up Guide
(1) Quick-Reference Guide
a. 54579–Upper Mounting Screws (2)
b. 44229–Mounting Bushings (4)
c. 54275–Lower Mounting Screws (2)
d1. 75271–Kaba Cam Plug Deadlatch (1)
d2. 75262–Kaba Cam Plug Deadbolt (1)
e1. 75272–Lock Assembly for Lever (1)
e2. 75273–Lock Assembly with Thumbturn (1)
f. 54725–Pinned Torx Screw (2)
g. 34298–Lever Cap (1)
h. 34309–Lever (1)
i. 44226–“D” Bushing (2)
j. 54685–Battery Pack (1)
k. 24554–Battery Cover (1)
l. 54725–Pinned Torx Screws (1)
Tools Required .................................................................3
A. Door Preparation - Remove Existing Outside Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 3
B. Stile Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. Lock Preparation ...........................................................5
D. Lock Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
E. Standard Operations Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
F. Programming and Software Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
a

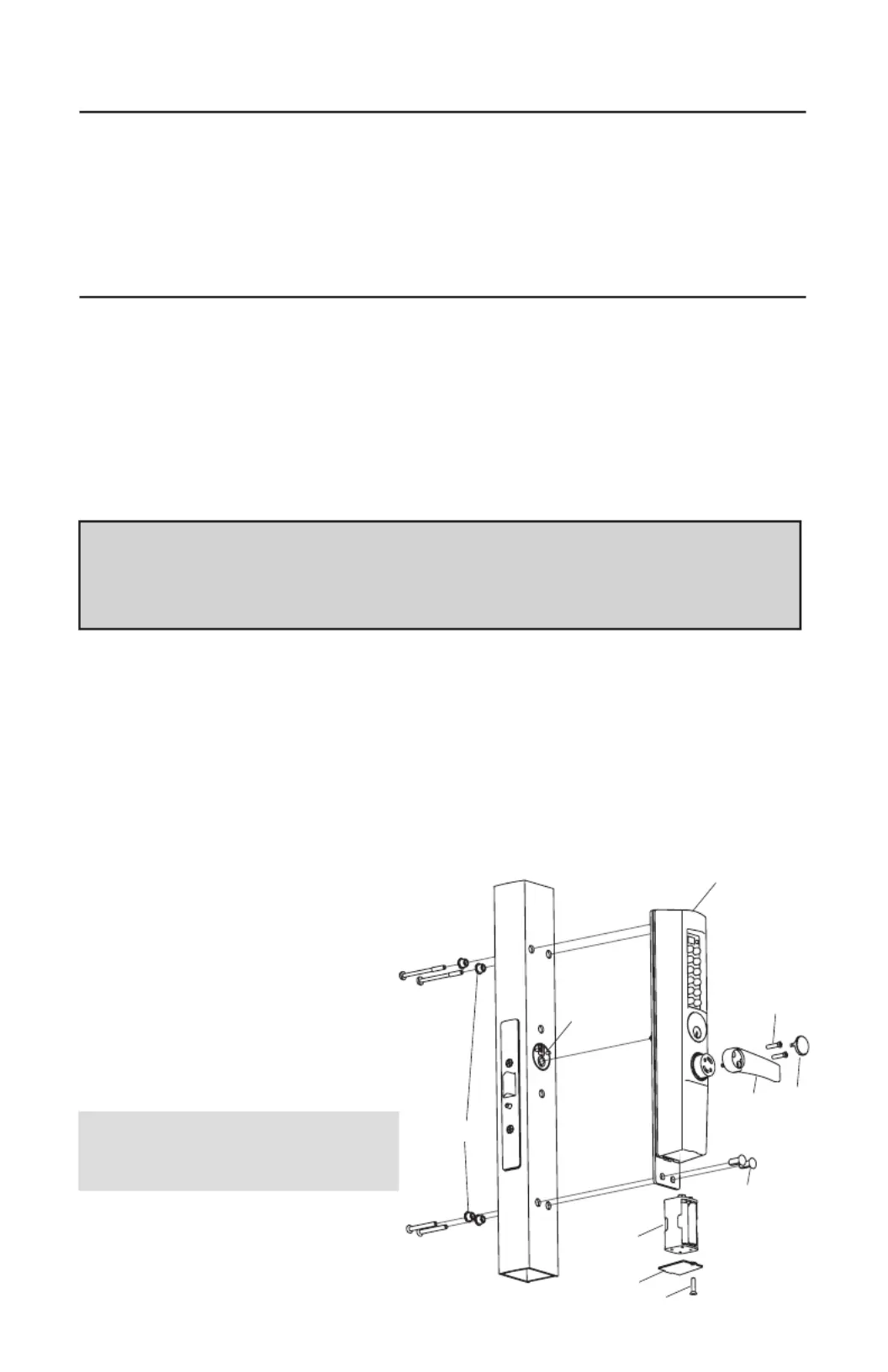

Figure 1
c
e1
e2
d1
d2
j
kl
h
i
g
f
b
WARNING: This lock is designed to be used with Adams
Rite® brand hardware only. Improper use or installation of
this product will void the warranty.
LEVER LOCK ONLY
3
TOOLS REQUIRED
• Power Drill with 3⁄8” (10mm) drill bit
• Tape
• Center Punch or Awl
• Hex Allen Wrench Set
• Phillips Head Screwdriver
• Small Flat Blade Screwdriver
• Safety Glasses
A. DOOR PREPARATION—REMOVE EXISTING
OUTSIDE HARDWARE
A-1 Remove any existing Outside Hardware such as Lever Entry Trim, Latch
Pull, Key Cylinders, etc.
A-2 Remove and retain the screws and Armored Face Plate (Scalp) from the
face of the Deadlatch or Deadbolt (See Figure 2A) (See Figure 2B).
A-3 Loosen the set screw and remove the existing hardware assembled from
the outside to the Deadlatch or Deadbolt Mortise, including the Adams
Rite Cam Plug 4580 (d).
A-4 Set Scalp and screws aside for reassembly later.

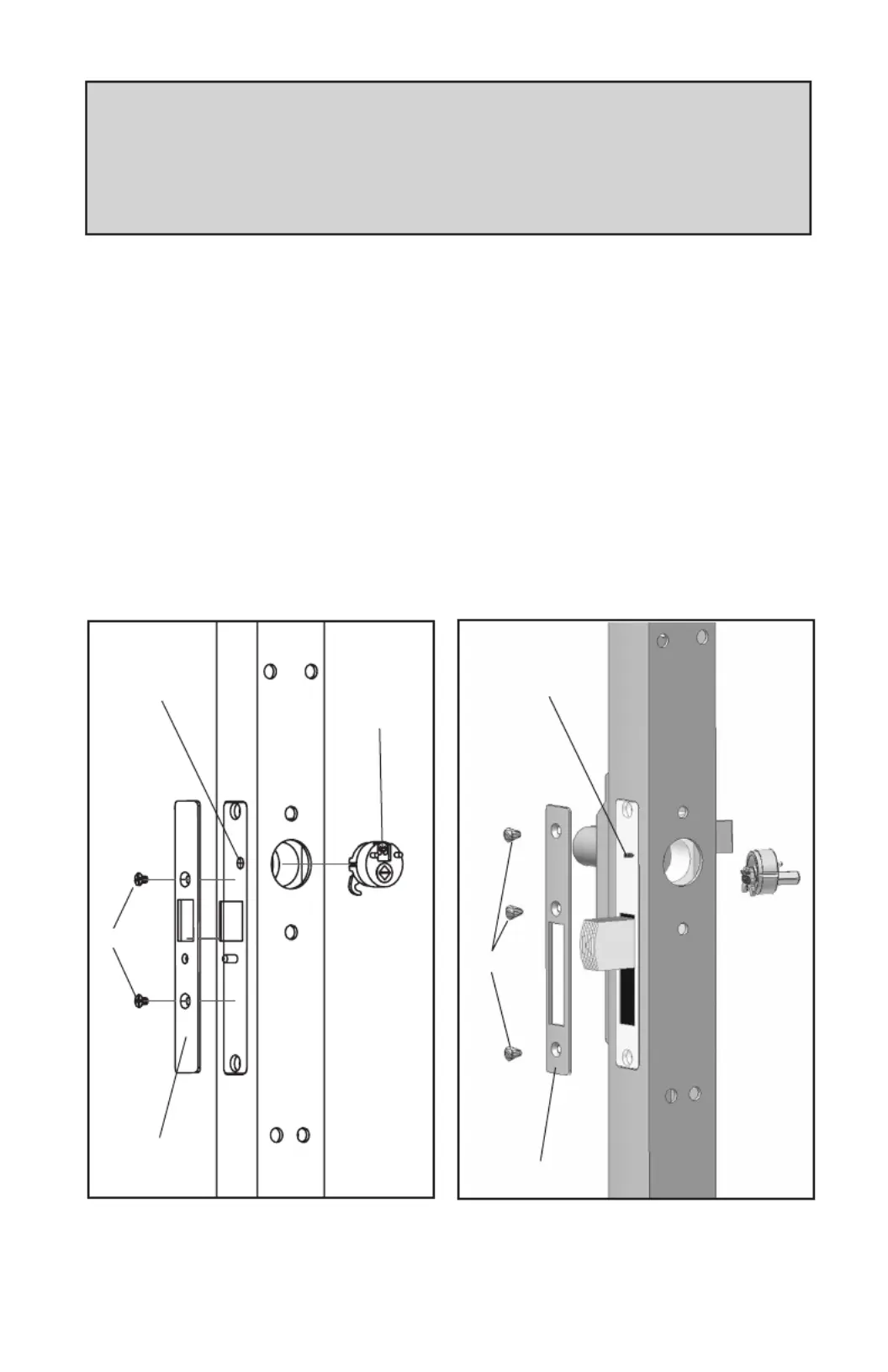

Figure 2A
d
set screw
scalp
screws
Figure 2B
set screw
Disclaimer: While reasonable efforts were made to ensure the accuracy of this document at the time of printing, Kaba
assumes no liability for any errors or omissions. This information is subject to be revised without notice, and changes
may be incorporated in future releases.
scalp
screws
