Sida 1/2

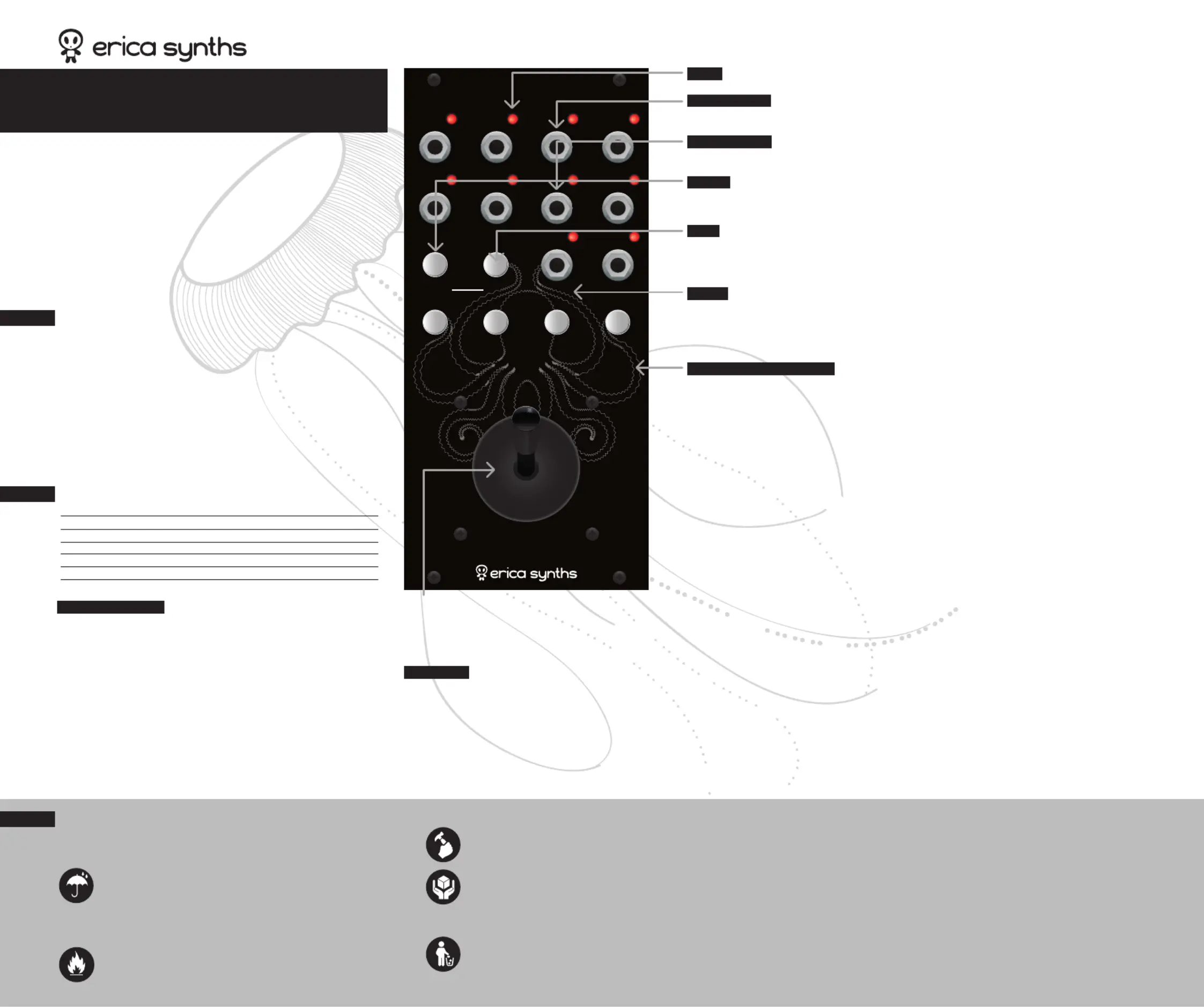

BLACK JOYSTICK2

Y 1 Y 2 Y 3 Y 4

X 1 X 2 X 3 X 4

GATE3 GATE4

CH 1

_____

JOYSTICK

CH 2

_____

SINE

CH 3

_____

RND

CH 4

_____

SNEW

RECMODE

CLEAR

BLACK JOYSTICK2

THANK YOU FOR PURCHASING ERICA SYNTHS

BLACK SERIES MODULE!

Erica Black Series include high-end, unique functionality and superior

quality modules. Only the best, highest quality components are used,

all inputs and outputs are protected against undesired overvoltage.

Erica Black Series consist of range of modules that are needed to put

together entire synth. Enjoy!

Erica Synths Black Joystick2 is 8 channel multi functional CV and sound

source – joystick, movement recorder, distinct LFO and drone/noise

oscillator. . It provides great interaction with the modular system and

allows to develop unconventional modulation patterns instantly.

SPECS:

CV output amplitude -5V – +5V

LFO frequency range 0.1Hz – 32Hz

Drone oscillator frequency range 32Hz - 1kHz

Max motion record time 8” per channel

Panel width 12HP

Module depth 30mm

Power consumption 71mA@+12V, 20mA@-12V

FEATURES:

8 simultaneous CV outputs

2 gate outputs

4 motion record channels

Sine and Random LFOs with adjustable

frequency and amplitude

Drone/noise oscillator

Gate record

Two 4-position CV panners

Ski friendly design

An octopus

LEDs

The bicolour LEDs indicate the output CV state. Green means the output is positive, yellow - negative.

Y1; Y2; Y3; Y4

These are CV outputs that correspond to joystick movement along Y axis and these are 90o phase

shifted CV outputs in the LFO mode

GATE

These are the Gate outputs for channels 3 and 4. In Joystick and SNEW modes a +5V signal is present during a motion of the

joystick. In LFO mode and Joystick motion record mode a +5V signal is present when CV is above 0V. This means, you can

record rhythmic gates by moving a joystick vertically. The LEDs are on, when the gate is high. When in sine or random LFO

mode, the Gate output becomes a random trigger generator, when in drone/noise oscillator mode, the Gate output

provides another audio output - squarewave.

JOYSTICK

Move the joystick to control X/Y CV outputs and/or record

the motion of the joystick. In the LFO and Drone Oscillator

mode X movement of joystick changes the frequency, Y

movement – amplitude of the signal on outputs. You can

also record LFO automations – frequency and amplitude

change. When the motion is recorded in a certain channel,

and in the same channel the joystick is moved, the

recording is overridden by the movement momentarily. As

movement stops, the output CVs smoothly fade back to the

recorded motion and playback continues.

CONFIGURATION

There are two conﬁgurable options available:

1) joystick position save, when switching to other channel. For example,

you are in SINE mode on channel 1 and you have set a joystick is a

speciﬁc position to achieve desired rate/amplitude ratio, and then switch

to the channel 2 and record some automations. If a joystick position save

is NOT engaged, as soon you switch back to the channel 1, the

rate/amplitude ration will be dierent, because the joystick position has

changed. If a joystick position save IS engaged, the rate/amplitude ratio

will remain the same till you move the joystick through the original

position. If you want immediate response from the joystick, we

recommend to turn a joystick position save o; if you want more control

over joystick position settings, turn a joystick position save on.

2) recall of last active channel on powering the module o. If this option is

engaged, the module will save all settings of the last

selected channel and

recall them next time, you power a case on.

X1; X2; X3; X4

These are CV outputs that correspond to joystick movement along X axis and these are primary CV

outputs in the LFO mode

REC

Push and hold the REC button to record a motion of a joystick. Once released the motion will start to play back

automatically. A maximum record time is 8” per channel. You can also record frequency/amplitude automations of the

LFO and drone/noise oscillator. If automation is recoded and plays back, a LED behind the relevant channel button will

be half dimmed until you clear the recording.

MODE

Select one or several channels simultaneously, you wish to initiate one of four action modes, and then push

and hold the MODE button and push one of CHANNEL/MODE buttons to select the output mode. Push and

hold the MODE button and push REC button to clear recorded automations on a selected channel.

CH1; CH2; CH3; CH4/MODE

These are the CHANNEL SELECT and MODE buttons. Push one or several buttons simultaneously to select the

output channel. If several channels are selected simultaneously, you can control parameters on selected

channels simultaneously. Buttons of the selected channels will be lit.

Push and hold the MODE button and push one of the CHANNEL/MODE buttons to select the CV output mode

of the channel. The button of the selected mode will start to blink. Available modes are:

JOYSTICK. In this mode, depending on a joystick position up to -5V to +5V signals are available on X and Y

outputs. You can record up to 8” of a motion of the joystick by pushing and holding the REC button. The

recorded motion will start to loop automatically. To clear the recording push and hold the MODE button and

push the REC button.

SINEWAVE LFO/DRONE OSCILLATOR. In this mode you have low frequency sinewave on the X output and

same, but 90o phase shifted sinewave on the Y output. X position of the joystick deﬁnes the frequency of the

sinewave, Y position deﬁnes the amplitude. You can record the change of the frequency and amplitude by

pushing and holding the REC button. The recorded motion will start to loop automatically. To clear the

recording push and hold the MODE button and push the REC button. To switch to the DRONE OSCILLATOR

mode (audio frequency sinewave) push and hold the MODE button and push the relevant channel button for

2". The channel button will become 50% dimmed, and next time, you select a channel, it will be in drone

oscillator mode. To turn drone oscillator mode o, push and hold the MODE button and push the relevant

channel button for 2". Try to use all 8 outputs in the Drone oscillator mode! Please note that the sine oscillator is

primarily in intended to work as FM modulation source; as a sound source it may not sound perfect due to

20kHz sampling rate.

RANDOM LFO/NOISE OSCILLATOR. In this mode you have stepped random voltages on the X and Y outputs.

X position of the joystick deﬁnes the frequency of the random voltage change, Y position deﬁnes the

amplitude. You can record the change of the frequency and amplitude by pushing and holding the REC

button. The recorded motion will start to loop automatically. To clear the recording push and hold the MODE

button and push the REC button. You can swith the NOISE OSCILLATOR mode on/o same way as sine

oscillator.

SNEW PANNER (SOUTH-NORTH-EAST-WEST) . In this mode you have 4x2 CV outputs, each changing from 0V

to +5V. Meaning, if you set the SNEW mode on the CHANNEL1 and CHANNEL2, and Y1 outputs 0-+5V, when the

joystick is mover from the center right (east), X1 outputs 0-+5V, when the joystick is moved from the center up

(north), Y2 outputs 0-+5V, when the joystick is moved from the center to the left (west), X2 outputs 0-+5V, when

the joystick is moved from the center to the down (south). Same works for pair of CHANNEL3 and CHANNEL4.

This is particularly useful for controlling VCAs in quadraphonic performances or controlling several X-faders,

VCAs, VCFs or other modules simultaneously. You can record the motion of the joystick by pushing and

holding the REC button. The recorded motion will start to loop automatically. To clear the recording push and

hold the MODE button and push the REC button.

When operating the Black Joystick2 module you select the CHANNEL, push and hold the MODE button to

check, what MODE is selected – the relevant MODE button will start to blink. When you select a dierent

mode, all reordered automations are instantly cleared.

Transport the instrument carefully, never let it drop or fall

over. Warranty does not apply to modules with visual

damages.

The module has to be shipped in the original packaging

only. Any module shipped to us for return, exchange and/or

warranty repair has to be in its original packaging. All other

deliveries will be rejected and returned to you. Make sure

you keep the original packaging and technical documentation.

This device complies to the EU guidelines and is manufac-

tured RoHS conforming without use of lead, mercury,

cadmium and chrome. Nevertheless, this device is special

waste and disposal in household waste is not recommended.

User manual by Girts Ozolins@Erica Synths.

Design by Ineta Briede@Black8.

Copying, distribution or any commercial use in any way is

prohibited and needs the written permission by Erica Synths.

Speciﬁcations are subject to change without notice.In case of

any questions, feel free to contact us through www.erica-

synths.lv.

You will ﬁnd Erica Synths terms of warranty at

www.ericasynths.lv

Items for return, exchange and/or warranty repair have to

be registered at SUPPORT on www.ericasynths.lv and send

back to us according to instructions in the support page.

SAFETY INSTRUCTIONS

Please follow the instructions for use of the Erica Synths module below,

‘cause only this will guarantee proper operation of the module and

ensure warranty from Erica Synths.

Water is lethal for most of the electric devices, unless they are made

waterproof. This Erica Synths module is NOT intended for use in a

humid or wet environment. No liquids or other conducting

substances must get into the module. Should this happen, the

module should be disconnected from mains power immediately,

dried, examined and cleaned by a qualiﬁed technician.

Do not expose the module to temperatures above +50° C or below

-20° C. If you have transported module in extreme low temperatures,

leave it in room temperature for an hour before plugging it in.

In order to access conﬁguration, power a modular case o,

push and hold the MODE button, and power the case on.

Now, you can push CH1 button to engage the joystick position

save and CH2 button to engage recall of last active channel.

If the option is engaged, the relevant channel button will be lit.
