The Mutant Hot Glue
04.24.2015 Mutant Hot Glue user manual v1.05 PG1
HEXINVERTER ELECTRONICS INC., 2015
analog bus mixer with effects and compressor
Thank you for your interest in the Mutant Hot Glue (MHG) eurorack module. We would like to thank you for
considering a place for the MHG in your modular synthesizer! We hope you find it as useful as we do.
GLUING THINGS TOGETHER
Having previously developed the limited edition batteryACID distortion + compressor module for the I Dream
of Wires modular synthesizer documentary, we were getting a lot of customer requests to produce more of
them, after the limited stock ran out. batteryACID is a voltage controlled distortion which is coupled to a
great sounding, but really easy to use analog compressor. We wanted to bring something to the eurorack
modular realm that would provide similar utility, but be a different module altogether. The Mutant Hot Glue is
the result of our venture. It combines a handy channel mixer with effects send and return, together with four
a voltage controlled distortion and analog compressor. The distortion makes the signal “HOT” and the
compressor “GLUE”s your mix together. Get the joke? Ha…ha….
FEATURES
4 Channel Mixer with Effects Send
4 input channels, each with their own level and effects send control
Channel A mixer bypass switch and dedicated output for easy sidechain compression
Channel B is dual input, but shares level/send controls (for dual output modules, like the Mutant Hihats)
Channel C+D summed output
Main mixer output normalized to compressor input
Hi-Fidelity Analog Compressor
Soft-knee compressor based on the same family of premium audio ICs used in some 500 Series studio gear
Dedicated threshold and compression ratio controls
Gain control dials in up to +40dB of compressor make- gain up
Compressor sidechain input for creating pumping effects
LED indicator actively displays the amount of compressor gain reduction
Voltage Controlled Analog Distortion
A classic distortion topology reborn for modular analog synthesizers and drum processing
In/Outputs are conveniently normalized to the module’s send and return jacks
Blend control lets you adjust the mix of distorted and clean input signal
Fast responding CV input allows for complex modulation patterns and even modulating with audio signals
TECHNICAL SPECIFICATIONS
Width: Depth: 24HP | 30mm
Current draw: + - @ 12V 70mA, 70mA
04.24.2015 Mutant Hot Glue user manual v1.05 2 PG
HEXINVERTER ELECTRONICS INC., 2015
THE HOT GLUE ARCHITECTURE
The Mutant Hot Glue is a versatile bus mixer for analog effects chain design. The included analog
compressor offers series or parallel compression and a sidechain input, making particularly well suited to it
drum processing. The voltage controlled distortion is based on ideas borrowed from the guitar pedals
responsible for a lot of yesterday’s acid style techno sounds, but improved over the guitar equivalents, and
made specifically for synthesizer and drum processing. The distortion can be used in its default position,
normalized to the effects send, or like every other part of the module, broken out and used elsewhere in your
modular system.
By default, the 4 channel mixer’s output conveniently feeds into the compressor’s input, giving access to
easy New York style parallel compression by way of the compressor blend control. The dedicated output and
mixer bypass switch for channel A allow you to use it as a sidechain source for the compressor. An effects
send and return allow you to create complex effects routings within your modular system. With the number
of excellent DSP and other effects modules on the market today, this makes it easy to combine modules to
great effect, all within the eurorack modular domain.

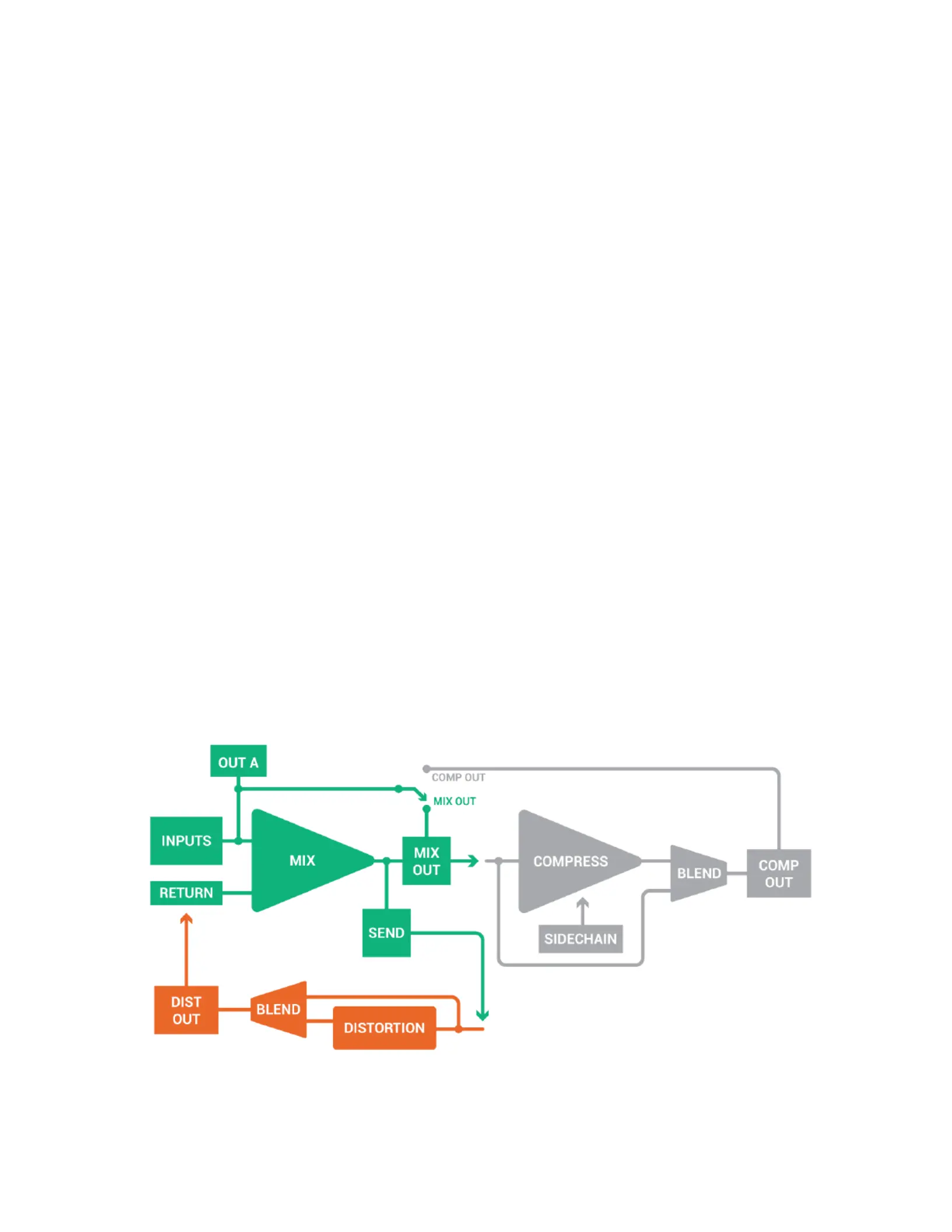

Below is a diagram of the basic signal flow and normalizing in the Mutant Hot Glue. We haven’t shown every
input and output here, for clarity’s sake. Just the ones that we feel would be most confusing to understand.
The main points to take away from this diagram are:
MIX OUT normalizes to the COMPRESSOR input until you plug a signal into the compressor input
CHANNEL A can be switched to go to the COMP OUT jack instead of MIX OUT
By plugging a signal into the SIDECHAIN input, the compressor is driven by that sidechain signal instead of the
signal coming in to the compressor during normal compression.
The DISTORTION normalizes to the effects SEND and RETURN by default, until you plug jacks in and break the
signal flow. You can easily add external effects in series with the built-in DISTORTION this way, or replace the
distortion entirely.
04.24.2015 Mutant Hot Glue user manual v1.05 3 PG
HEXINVERTER ELECTRONICS INC., 2015

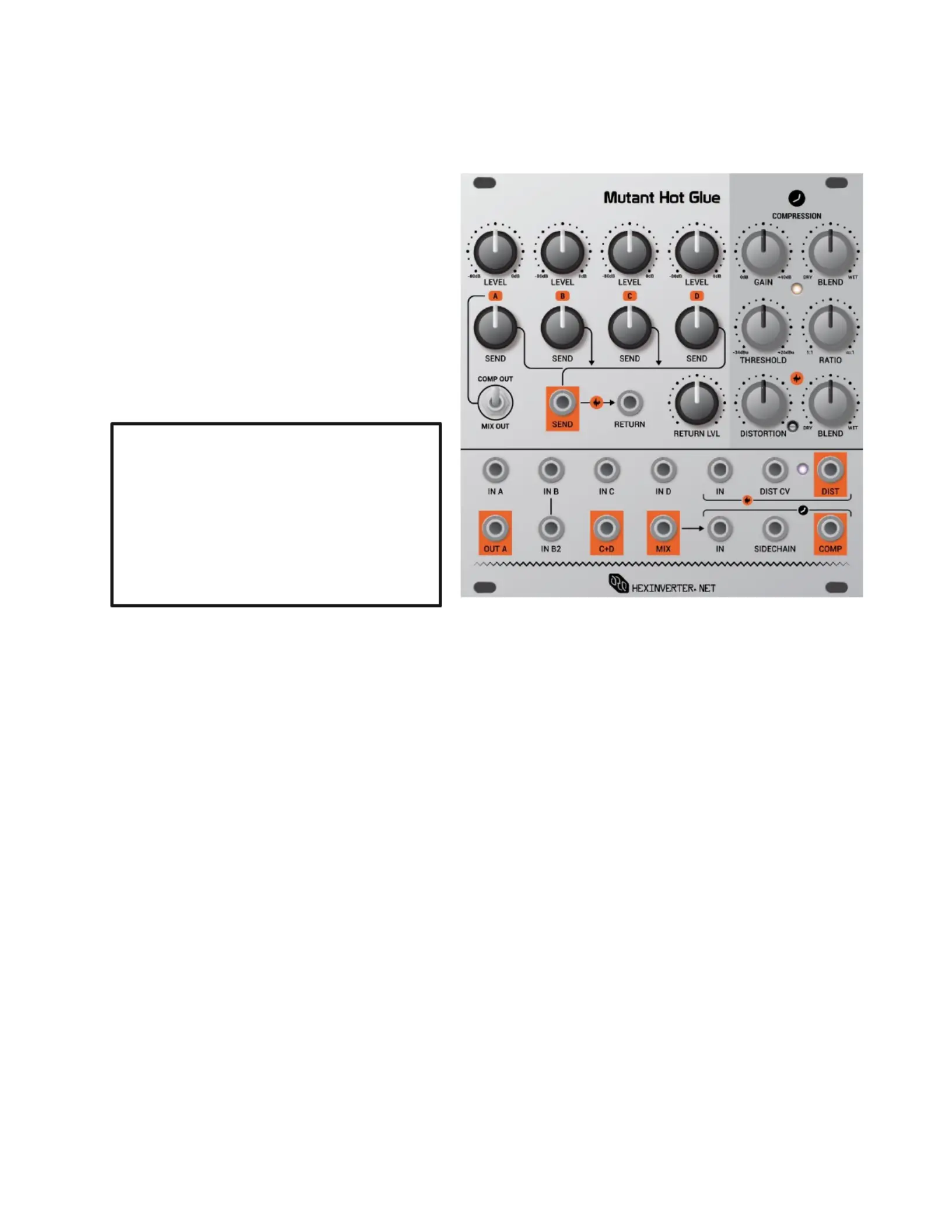

THE MIXER INTERFACE
LEVEL CONTROLS
Each LEVEL control can attenuate the input signal
present, or allow the input signal to pass at 0dB. As
eurorack signals can get quite high volume, you may in
need to dial them down to work with lower level
signals from other sources.
IN/OUT A
This input can easily be used as the compressor
sidechain signal source, if desired. So plug your
bassdrum or other source to be used as a sidechain
here, if you plan to use sidechain dynamics. Otherwise,
it is just a regular input. IN A’s attenuated signal is
always present at OUT A.
IN B, IN B2
IN B and share a common LEVEL control. This dual input is handy for using with modules like the Mutant Hihats, IN B2
which has two audio outputs.
IN C, IN D, C+D
IN C and IN D are regular mixer inputs. The C+D output sums IN C and IN D together, for sending elsewhere in your
system, if desired.
SEND CONTROLS
Adjusts the level of each channel sent of the SEND output to the effects loop (SEND/RETURN) Outputs signal to a out .
maximum of 0dB (unity gain).
RETURN LVL
Adjusts the volume of the external effects coming back into the mix . Plug your effect output into this jack, or er chain’s
use it like a 5th ut jack for the mixer, and add another signal into the mix. inp
THE DISTORTION INTERFACE
DISTORTION CONTROL + DIST CV INPUT
The control adjusts the amount of distortion, and the CV input will modulate the distortion from clean to fully distorted
with an CV signal of a little less than 5 volts. The purple LED beside the distortion jacks lights up as distortion occurs.
BLEND CONTROL
Adjust the DISTORTION wet/dry blend with this control.
Use the switch below IN A’s controls to toggle
between IN A’s routing. When set to MIX OUT,
channel A is blended into the MIX output as
normal. When switched to COMP OUT, however,
channel A bypasses the MIX output and gets
summed at the COMP output jack. This can be
useful for sidechain dynamics when you don’t
want your sidechain source going into the
compressor with the rest of the mix.
