Sida 1/4

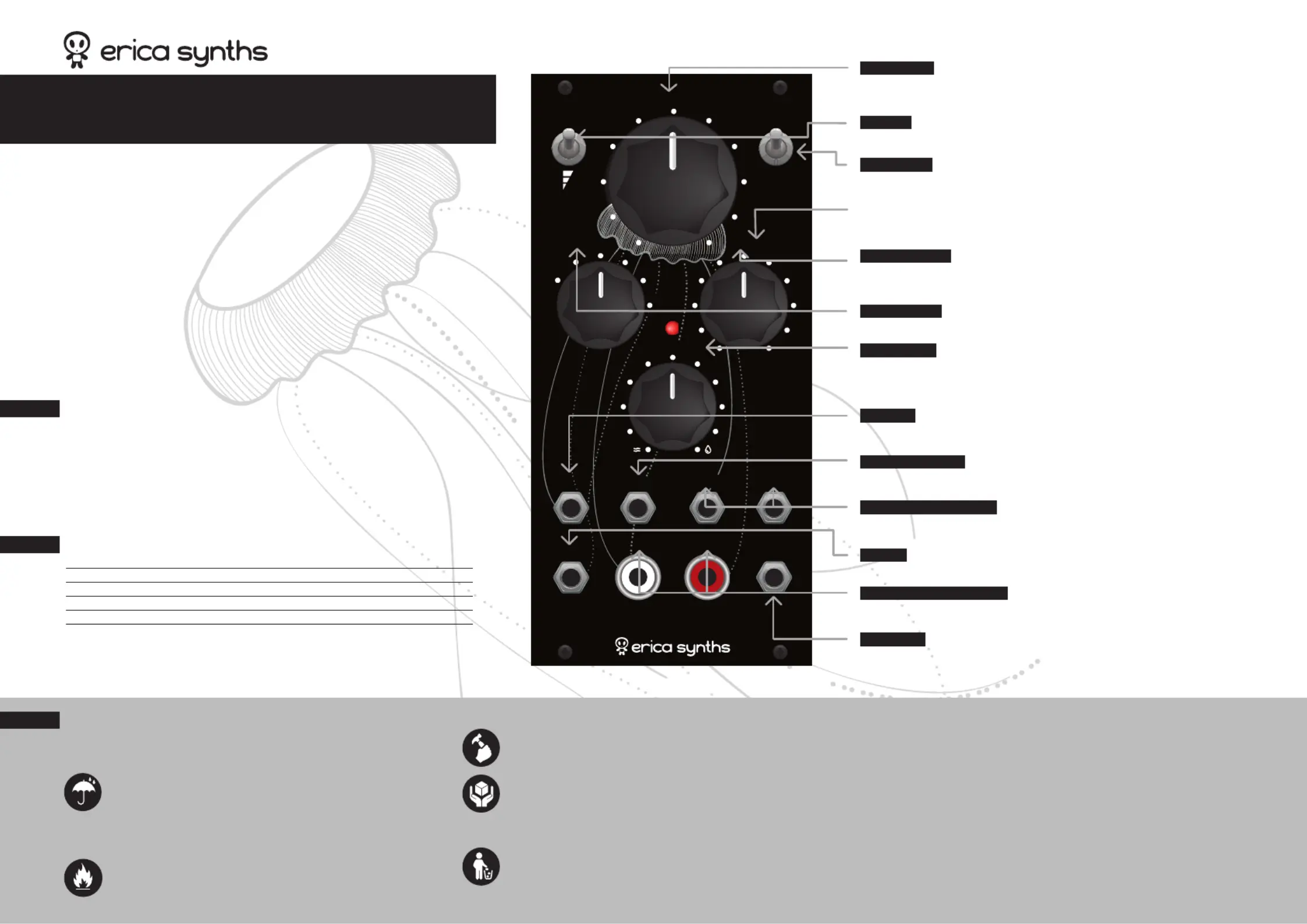

FEEDBACK
TANK SEL
INT
B HOT
EXT
BLACK SPRING REVERB
DRY/WET
FBK EFFECT FBK PARAM
FBK CV FBK SEND FBK RTNFBK PARAM CV
INPUT OUTPUT
TO TANK FROM TANK
OFF
15
2 4
IN LVL
Transport the instrument carefully, never let it drop or fall
over. Warranty does not apply to modules with visual
damages.
The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange and/or
warranty repair has to be in its original packaging. All other
deliveries will be rejected and returned to you. Make sure
you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufac-
tured RoHS conforming without use of lead, mercury,
cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
You will find Erica Synths terms of warranty at www.ericasynths.lv
Items for return, exchange and/or warranty repair have to be sent to:
Erica Synths
Andrejostas Str. 43
Riga
Latvia
LV-1045
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way is prohibited and
needs the written permission by Erica Synths.Specifications are subject to
change without notice.In case of any questions, feel free to contact us through
www.ericasynths.lv.
BLACK SPRING REVERB
THANK YOU FOR PURCHASING ERICA SYNTHS
BLACK SERIES MODULE!
Erica Black Series include high-end, unique functionality and superior quality
modules. Only the best, highest quality components are used, all inputs and outputs
are protected against undesired overvoltage. When designing Black Series, we put
design and usability superior. Big knobs are assigned to key functions of the
module, which makes Black Series ideal for live performances. Enjoy!
Erica Synths Black Spring Reverb is a dierent look on spring reverberation units.
Firstly, it has a built in compact spring reverberation tank and vactrol-based audio
compressor, secondly, it can operate an external tank AND combination of both
internal and external ones for eects unheard before. Thirdly, in order to animate
reverb eect, the module has built-in feedback eects – pitch shifters, delay,
various filters, etc; feedback amount and eect parameters can be controlled
manually and via CV, making the module an experimental instrument on its own.
SPECS:
Audio input level -5V - +5V
CV level (full span) -5V - +5V
Power consumption 143mA, -71mA
Module width 12HP
Module depth 30mm
Internal reverb tank dimensions 190mmx67mmx24mm (30mm with spacers)
FEATURES:
Compact spring reverberation tank to install in a ski case
Manually and CV controlled feedback amount
Vactrol-based compressor
7 distinct feedback eects
Selection between internal, external reverberation tanks or combination of both
Feedback Send and Return jack sockets
FEEDBACK
Adjust the feedback amount manually! The FBK CV is added to the Feedback
amount setting. At far CW settings the module goes into self-oscillation and,
basically, you can use it as an instrument on it’s own even with no audio input.
IN LVL
Select input level! Upper setting passes the audio at gain 1, middle setting – gain
0,5, bottom setting turns audio input o.
A small hole on the front panel allows access to the trimpot to adjust the
external spring tank send signal gain. Use a small screwdriver to set optimal,
non distorted signal level
TO TANK /FROM TANK
These are the external spring reverb tank send and receive inputs. The unit is
designed for experiments with dierent external tanks. Experiment!
OUTPUT
This is the audio output
FBK SEND / FBK RTN
These are feedback send and return connectors. It will break internal eects
circuit, and you can use the external eects to filter/animate reverb sound
TANK SEL
Select the reverb tank! Upper setting connects the internal tank, bottom setting –
external one, middle setting – both tanks in parallel
FBK EFFECT
Select the feedback eect to animate the reverb sound! Refer to the table of
eects below!
INPUT
This is the audio input
FBK PARAM
Adjust feedback eect parameter manually! FBK PARAM CV is added to the
potentiometer setting. For optimal results you may also need to adjust the lower
(EXT. TANK SEND)trimpot on the opposite side of the module.
DRY / WET
Adjust the Dry/Wet ratio manually! If you use the module as a sound source at extreme
feedback settings, make sure the Dry/Wet control is all way clockwise!
FBK PARAM CV
This is feedback eects parameter CV input
FBK CV
This is feedback amount CV input
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
Internal spring reverb
tank installation
Effect Parameter control
1 RINGMOD frequency
2 CREEPER pitch oset
3 HANDSAW rate
4 DELAY delay time
5 PITCH SHIFTER pitch shift -12 to + 12
6 HAUNTED SHIFTER pitch shift
7 SPRINGHAUSEN intensity
8 BYPASS no eect
Feedback eects and controls
When using the unit with feedback eect, we highly to approach it as an
instrument on its own. Tweak the feedback and FX knobs drastically and
hear how the spring reacts!
The more intensively you “move” the spring tank the more interesting
eects can be achieved. Apply dierent modulation sources to Feedback
CV and Parameter CV, do not just stick to static settings and playing only
with the DRY/WET knob.
For example, try the HANDSAW patch without any audio input, and apply
bursts of Feedback knob turning from fully CCW position to 12 o clock
position while adjusting the feedback parameter knob at the same time.
This technique will produce some interesting, unheard before sounds!
The internal spring reverb tank is designed to fit in most of ski
cases, it’s dimensions are 190mmx67mmx24mm (max height is
30mm with spacers). Before ordering the Erica Synths Black
Spring Reverb, please, check, if it will fit into your eurorack case.
The tank comes with 5mm spacers and two kinds of screws –
for wooden cases and for aluminum/plastic cases. For wooden
cases just place spacers under the relevant holes of the tank
(it’s good idea to use a superglue to glue them to the tank
permanently) and use wood screws to fix the tank to the case.
For aluminium cases you need to drill 4 3.2mm holes and use M3
screws and relevant nuts to fix the tank. If you are skeptical abut
drilling holes in your case, just use the superglue to glue the tank
to the case. Once tank is fixed, connect the wires to the module
as shown on the picture.
Erica Synths Travel Cases come with dedicated risers to fix the
tank.
NB! Make sure, the PSU cables and tank connectors do not touch
springs on the reverb tank.
1
2
3
BLACK SPRING REVERB
