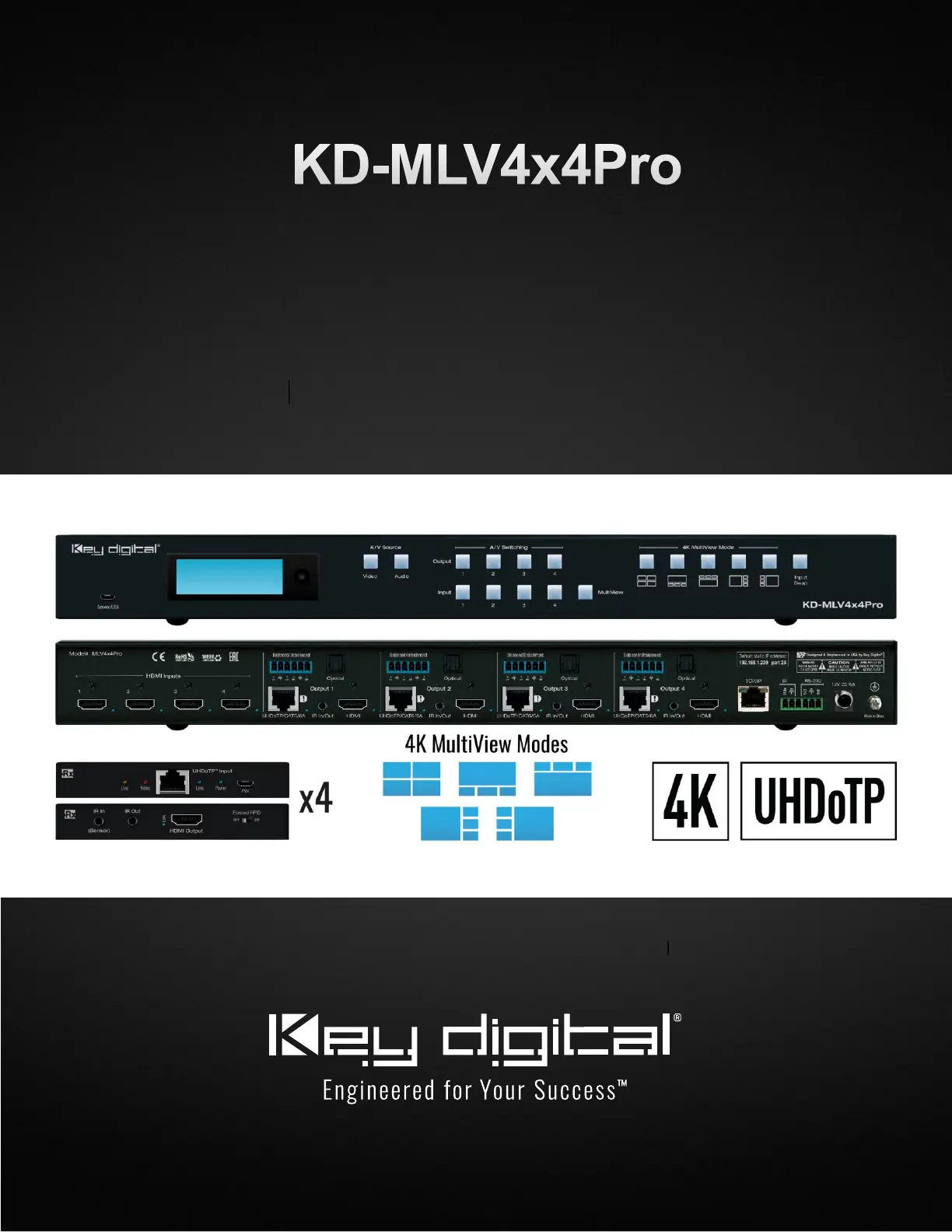

4x4 4K HDMI seamless matrix with multi-view tiling,
4 Rx units. Features independent AV routing,
mirrored HDMI and UHDoTP outputs.
521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.2 Apr, 2022 –
2
Table of Contents
About -MLV4X4PRO 3 KD
Quick Setup Guide 5
Connect 5
Congure 5
Control 8
Application Example 11
KD-MLV4x4Pro Connections and LEDs 11
KD-EXMLVRx Connections and LEDs 15
Front Panel Control & LCD 17
IR Remote Control 19
Web User Interface 20
TCP/IP and RS-232 Commands 23
Text Overlay 28
Video Processor Transition Times 29
Integrating with AV over IP Systems 30
Specications 31
Warranty Information 32
Product Warnings & Safety Instructions 32
Quick Setup Guide
Please visit www.keydigital.com for the latest product documentation,
rmware, control drivers and software downloads. Product features and
specications are subject to change without notice
Always follow the instructions provided in this Operating Manual.
521 East 3rd Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.2 Apr, 2022 –
3
About KD-MLV4X4PRO
Key Digital’s KD-MLV4x4Pro is a 4 HDMI input with 4 HDMI + 4 UHDoTP mirrored output matrix, multi-view
tiling video processor, and independent audio routing.
KD-MLV4x4Pro is perfect for applications like Sports & Gaming Caves, Bar & Restaurant, Corporate AV, House
of Worship, Entertainment Centers, Museums, and E-Sports. Or, simply use KD-MLV4x4Pro to deliver wow-
factor to your distributed video systems.
The multi-view tiling processor enables users to view up to 4 video sources at the same time on a display in
dierent default and custom layout presets. Custom and multi-view layouts include the option to layer content,
applying desired bezel frame width and color.
4K / UHD content up to 3840 x 21640p 4:2:0 at 60fps is supported and when in full-screen mode switching from
source to source is completely seamless. Integrate with legacy displays or projectors by applying 4K to 1080p
or 720p down-conversion as needed. Each output has mirrored HDMI and UHDoTP connections, for a total of 8
possible connected displays. Four (4) Receiver units are included, and they get their power from the main unit
for ease of installation.
KD-MLV4x4Pro supports independent audio routing with de-embedding on analog balanced/un-balanced and
digital optical connections and surround formats up to 5.1 Dolby® / DTS™. Audio from any source may be
selected while in multi-view mode.
For ease of installation and viewing, KD-MLV4x4Pro features 9 built-in test patterns and optional on-screen
display text for each source. KD-MLV4x4Pro supports HDCP 2.2, provides EDID handshaking to the connected
source from a library of 8 AV profiles or a copy of any connected display’s EDID file. IR from a control system
may be input at KD-MLV4x4Pro and extended to control the displays connected to the KD-EXMLVRx units.
Key Features
• Multi-view Tiling Processor: Simultaneously watch multiple sources on a single screen
• Full-Screen Mode: View full-screen content on any display
• Multi-View Mode: Choose from 5 default layouts or create custom presets. The active multi-view layout
is distributed to any display currently in multi-view mode
• Seamless Switching: -interrupted screen transitions during source selection while in full-screen Un
mode
• Built-In UHDoTP Tx with PoC: 4 included KD-EXMLVRx units are powered by KD-MLV4x4Pro
• Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output show same AV
signal at same time for a total of 8 possible displays connected
• Independent Audio Matrix: Audio output ports may be routed separately from HDMI & UHDoTP ports.
Audio from any source may be selected while in multi-view mode.
• Video Resolution: Up to 3840 x 2160p 4:2:0 60fps supported on inputs and 3840 x 2160 4:4:4 at 30fps
on outputs
