2x1 / 4x1 4K 18G HDMI Switcher with
Auto-Switching, Analog & Digital Audio De-Embed
Table of Contents
Introduction 1 ....................................................................
Quick Setup Guide 2 ...............................................................
Application Example 2 ..............................................................
Front & Rear Panel Connections, Buttons, and LEDs 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IR Remote Control 8................................................................
RS-232 Commands & Protocol 9......................................................
Specifications 11..................................................................
Important Product Warnings & Safety Instructions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Contacting Key Digital®........................................................... 13
Warranty Information 13.............................................................
Note: Please visit for the latest product documentation and software downloads. www.keydigital.com
Product features and specifications are subject to change without notice.
© 2022 Key Digital, Inc. All rights reserved.
Always follow the instructions provided in this Operating Manual.
KD-S2x1X-2 KD-S4x1X-2
Visit product pages for most
recent version of the manual,
quick setup guide, firmware,
control drivers and all
additional downloads.
2
Quick Setup Guide
CONNECT:
Test for proper operation of the unit and cables in your system before permanently securing the
unit for final installation. Ensure that you leave enough ventilation space to provide sufficient
airflow and cooling.
1. Begin with the KD-S2x1X-2/KD-S4x1X-2 unit and all input/output devices turned off with power
and CAT cables removed
2. Connect your HDMI sources to the input ports of KD-S2x1X-2/KD-S4x1X-2 unit
3. Connect your HDMI display to the output port of KD-S2x1X-2/KD-S4x1X-2 unit
4. BEFORE connecting power supply to power outlet, screw-in the power supply
to the KD-S2x1X-2/KD-S4x1X-2 unit
5. Connect the analog and/or digital audio amplifiers/receivers via the analog 3.5mm and optical outputs
6. If connecting from control system or BrightSign player, connect supplied USB Micro to RS-232 adapter.
7. After all connections are made, plug-in power supply to power outlet
8. Power on input and output devices
CONFIGURE:
The default EDID handshake is 4Kx2K@60, 18G, HDR, 2ch audio. Use the EDID rotary
dial to choose the desired handshake that will be provided to the connected sources.
If Auto Switching is desired, enable via the IR remote or RS-232 command.
CONTROL:
Switch KD-S2x1X/KD-S4x1X via front panel button, IR remote or via RS-232.

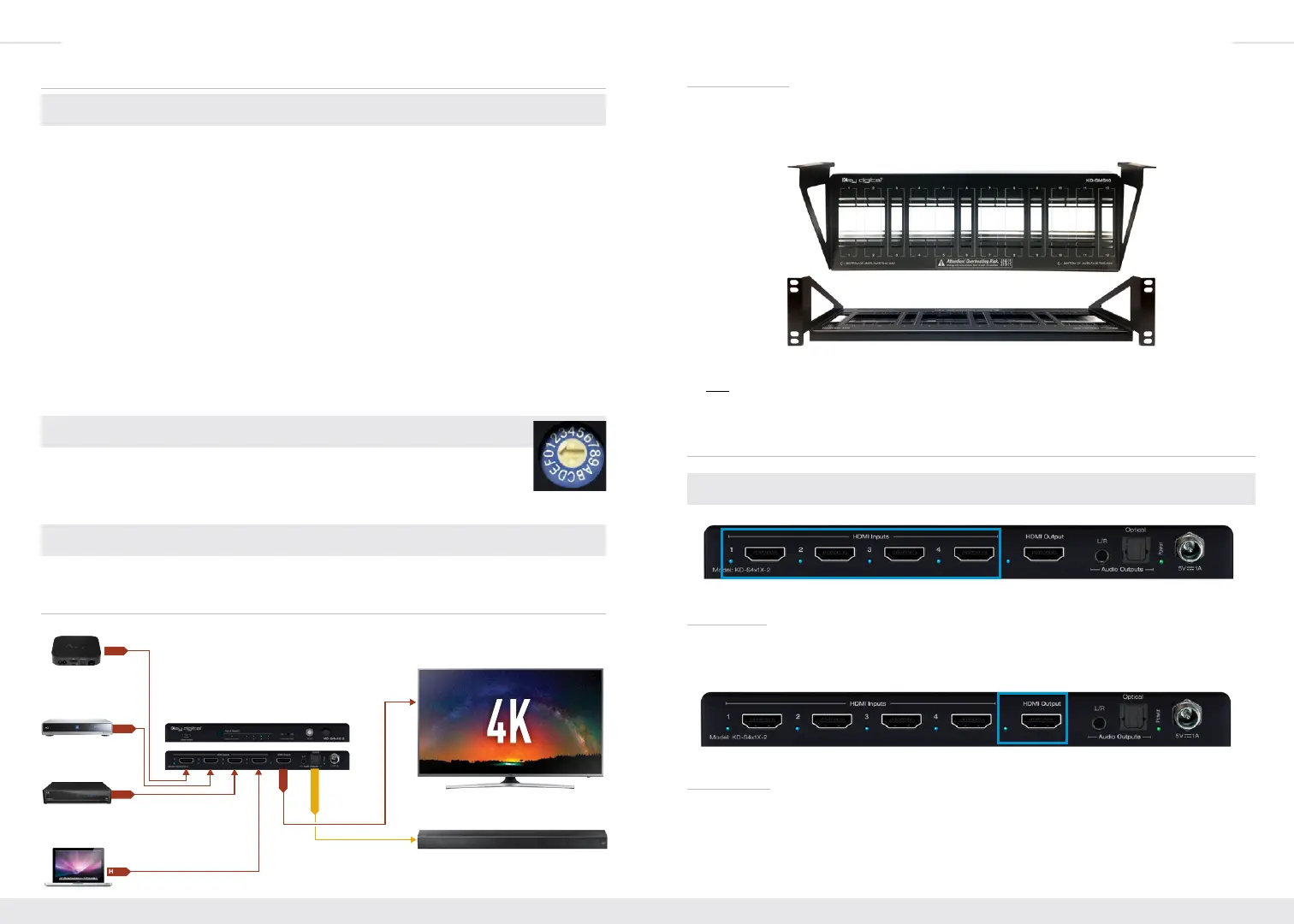

Application Example
Cable / Satellite
Sound Bar
Blu Ray
HDMI
HDMI
HDMI
HDMI
KD-S4x1X-2
Optical Audio
DMI
Apple TV
HDMI Laptop
Note: 18Gbps signal extension requires all 18Gbps supported HDMI cables.
