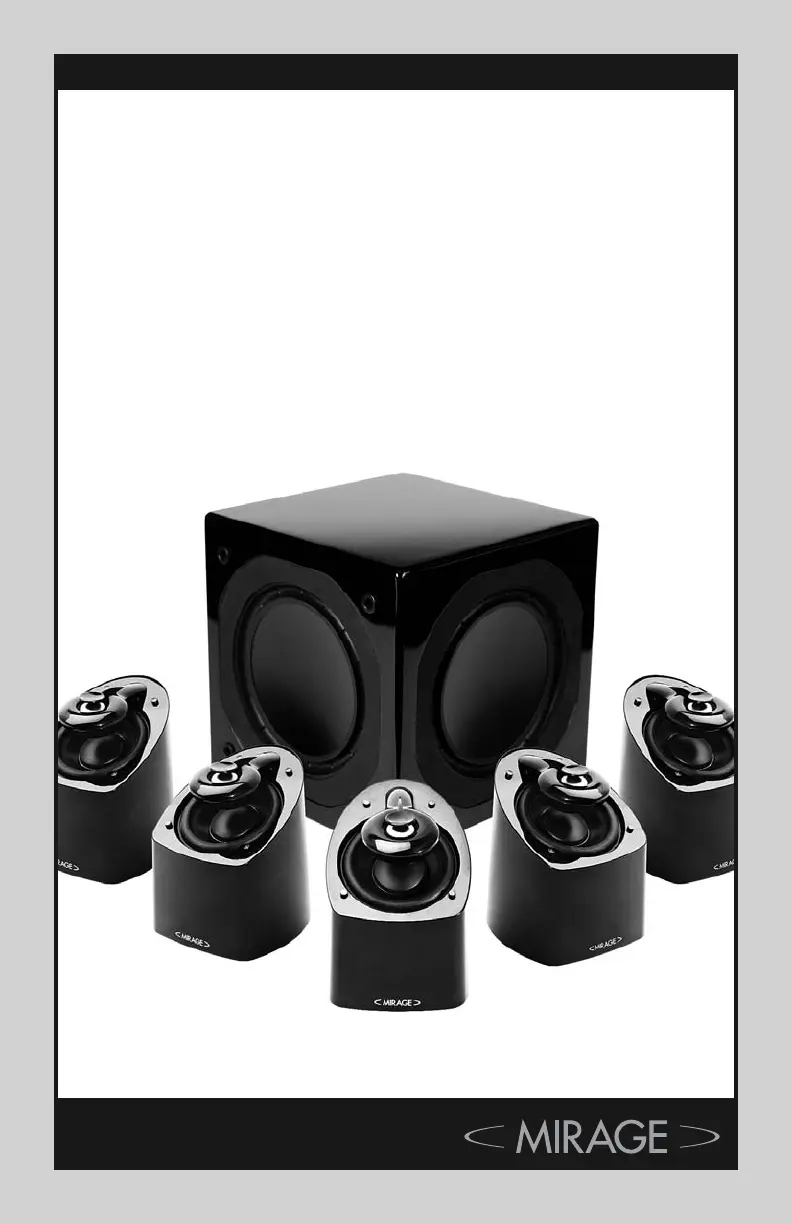

M i r a g e M X H o m e T h e a t e r S y s t e m
owners m a n u al
IMPORTANT SAFETY
INSTRUCTIONS –
READ CAREFULLY!
Caution: To prevent the risk of electrical shock, match
wide blades of plug to wide slot, fully insert.
Read Instructions: All safety and operating
instructions should be read before the product is
operated.
Retain instructions: Safety and operating instructions
should be retained for future reference.
Heed Warnings: All warnings on the product &
operation instructions should be adhered to.
Follow Instructions: All operating and use
instructions should be followed.
Cleaning: Unplug the product from the wall before
cleaning. Do not use aerosol or liquid cleaners, just a
damp cloth.
Attachments: Do not use attachments not
recommended by the product manufacturer as they
may cause hazards.
Water and moisture: Do not use this product near
water.
Power Sources: This product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply in
your home, call your local power company.
Grounding or Polarization: This product may be
equipped with a polarized alternating current line plug.
This plug will fit the power outlet in only one way as a
safety feature. If you are unable to insert the plug, try
reversing it. If the plug should still fail to fit, contact
your electrician to replace your outlet. Do not defeat
the safety purpose of the plug.
Power Cord Protection: Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles and the point where they exit from the
product.
Overloading: Do not overload wall outlets or
extension cords, as this can result in a risk of electrical
shock.
Object and Liquid Entry: Never push objects of any
kind into this product through openings as they may
touch dangerous voltage points or short out parts that
can result in a fire or electrical shock. Never spill liquid
of any kind on the product.
Servicing: Do not attempt to service this product
yourself as openings or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified personnel.
Heat: This product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce
heat.
Non-Use Periods: The power cord of the product
should be unplugged from the outlet when left unused
for a long period of time.
Damage Requiring Service: The product should be
serviced by qualified personnel when:
A. The power supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into
the appliance; or
C. The product has been exposed to rain; or
D. The appliance does not appear to operate normally
or exhibits a marked change in performance; or
E. Product has been dropped, or the enclosure
damaged.
F. If the product does not operate normally by
following the operating instructions.
MIRAGE MX SERIES
Please take the time to read all of the instructions
contained in this manual to make certain your system is
properly installed and functioning correctly.
Please retain the carton and packing materials for this
MIRAGE®product to protect it in the event it ever has
to be shipped to a service center for repairs. Product
received damaged by a service center that has been
shipped by an end user in anything other than the
original packaging will be repaired, refurbished, and
properly packaged for return shipment at the end user’s
expense.
2
The lightning flash with arrowhead symbol.
Within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
owners m a n u al
INTRODUCTION
We are proud to welcome you as a new owner of a
MIRAGE speaker. The finest components and materials
are manufactured to exacting standards and tested
with sophisticated manufacturing and quality control
techniques to ensure exceptional performance that is
superior to systems costing several times their price.
This approach to the development of the MIRAGE
system has resulted in a significant improvement over
other system designs in terms of performance and
aesthetics.
THE MIRAGE MX SERIES
The main goal of this series was to provide a product
with the most natural, accurate performance and
seamless, home theater blending. This was
accomplished by using MIRAGE’S proprietary
OMNIPOLAR™ technology. OMNIPOLAR™ technology
produces the same amount of direct and reflected
sound as live events for the most realistic experience of
either music or home theater.
WHAT EXACTLY IS
OMNIPOLAR™?
OMNIPOLAR™ technology uses natural room
reflections to create a greater sense of realism. This
realism is accomplished by recreating the same ratio of
direct to reflected sound found in nature, 70% reflected
and 30% direct. A traditional speaker can only produce
30% reflected sound. It is the required additional
reflected sound provided by an OMNIPOLAR™ speaker
that creates the OMNIPOLAR™ three-dimensional
sound experience.
QUICK SET-UP GUIDE
RECOMMENDED CONNECTION FOR
DOLBY DIGITAL/DTS/DOLBY PROLOGIC
II SYSTEMS
1. Arrange the MIRAGE MX satellites and subwoofer
in a Home Theater configuration. See Diagrams G
and H.
2. Connect all five speakers with speaker wire to their
respective speaker outputs on the back of the
amplifier/receiver. Be sure to respect the polarity of
the wire. Connect the speaker wire from the
positive (RED +) terminal on the receiver/amplifier
to the positive (RED+) terminal on the satellite.
Connect the negative (BLACK-) terminal on the
receiver/amplifier to the negative (BLACK-)
terminal on the satellite. See Diagram B.
3. Connect the subwoofer from the Subwoofer
Output on the back of the A/V Receiver or
processor to the input on the subwoofer.
4. MIRAGE suggests using the Small setting in the
bass management set-up of your Dolby Digital
system for all speakers.
5. MIRAGE suggests setting the bass management
crossover of your A/V Receiver or processor to
120Hz. (Or as close to 120Hz as possible). If your
A/V Receiver or processor does not have a variable
crossover, please proceed to the next step.
NOTE: When using the receiver for bass
management, the internal filter of the
subwoofer should be bypassed by turning the
Low Pass Filter ucompletely to the right.
6. Balance the sound output of the speakers by using
the pink noise test pattern generated by your A/V
Receiver or processor, adjusting the system so all
speakers produce the same output level.
7. When setting your subwoofer level, be sure that
the setting on your A/V Receiver or processor
remains as close to flat as possible. Boosting or
cutting the subwoofer output on your A/V Receiver
or processor may produce poor sound quality.
Instead, use volume control on the back of the
MIRAGE MX Subwoofer for fine tuning.
You are now ready to enjoy your MIRAGE MX System.
MIRAGE MX IN-DEPTH
INSTRUCTIONS
CONNECTIONS
The MIRAGE MX Series is equipped with high quality
binding posts ideally suited for bare wire connections.
In order to connect the wires, push down on the rubber
insert located on the underside of the cabinet. Pushing
down on this insert will activate the spring loaded
terminals hidden below it and will line up the terminals
with the small holes in the back of the cabinet.
Carefully insert bare wire (maximum of 14 gauge) into
the openings. Alternatively, the rubber insert at the
bottom of the cabinet can easily be removed with a
paper clip. Once the insert is removed, simply follow the
steps indicated above. Diagram E.
