o w n e r s m a n u a l

OS3Series

OS3(8.5x8.5)4:Layout 1 5/21/08 2:07 PM Page 1

o w n e r s m a n u a l

IMPORTANT SAFETY

INSTRUCTIONS -

READ CAREFULLY !

READ INSTRUCTIONS: All safety and operating instructions should be read

before the product is operated.

RETAIN INSTRUCTIONS: Safety and operating instructions should be retained

for future reference.

HEED WARNINGS: All warnings on the product & operation instructions

should be adhered to.

FOLLOW INSTRUCTIONS: All operating and use instructions should be

followed.

CLEANING: Unplug the product from the wall before cleaning. Do not use

aerosol or liquid cleaners, just a damp cloth.

DO NOT EXPOSURE THE SPEAKERS TO DIRECT RAINFALL OR SUBMERGE THEM

UNDERWATER – PERMANENT DAMAGE WILL RESULT

DAMAGE REQUIRING SERVICE: The product should be serviced by qualified

personnel when:

A. The appliance does not appear to operate normally or exhibits a marked change

in performance; or

B. Product has been dropped, or the enclosure damaged.

C. If the product does not operate normally by following the operating instructions.

MIRAGE OS3SERIES

Please take the time to read all of the instructions contained in this manual to

make certain your system is properly connected and functioning correctly.

Please retain the carton and packing materials for this Mirage product to protect

it in the event it ever has to be shipped to a service center for repairs. Product

received damaged by a service center that has been shipped by an end user in

anything other than the original packaging will be repaired, refurbished, and

properly packaged for return shipment at the end user’s expense.

INTRODUCTION

We are proud to welcome you as a new owner of a Mirage speaker system. The

finest components and materials are manufactured to exacting standards and

tested with sophisticated manufacturing and quality control techniques to

ensure exceptional performance that is superior to speakers costing several times

their price. This approach to the development of the Mirage OS3has resulted in a

significant improvement over other system designs in terms of performance and

aesthetics.

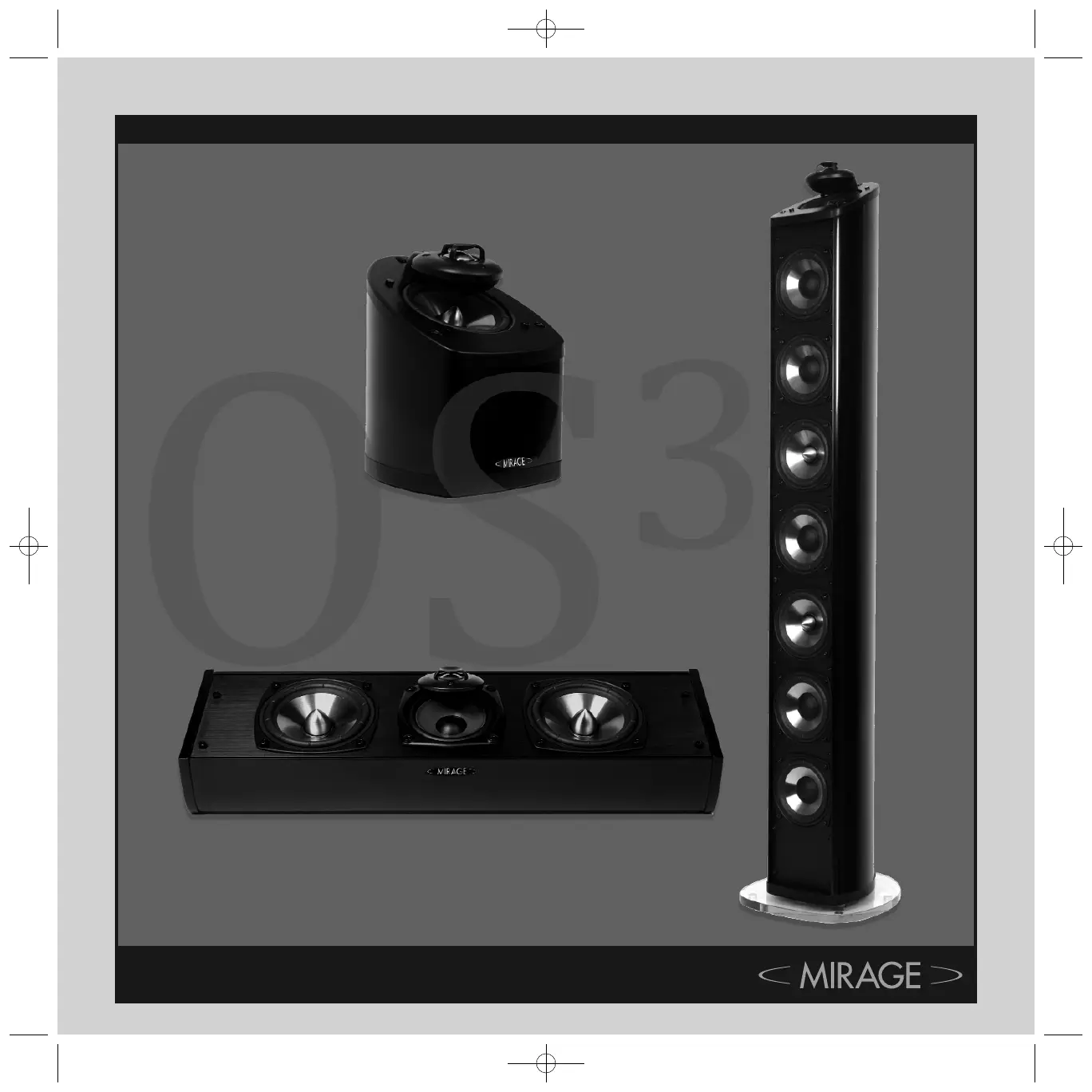

THE OS3SERIES

The main goal of the new OS3was to provide a series of speakers with the most

natural, accurate performance that could excel at both home theater and music

reproduction. This was accomplished by using Mirage’s newest proprietary

Omnipolar technology. Omnipolar technology produces the same amount of

direct and reflected sound as live events for the most realistic experience of

either music or home theater.

WHAT EXACTLY IS OMNIPOLAR?

Omnipolar technology uses natural room reflections to create a greater sense of

realism. This is accomplished by recreating the same ratio of direct to reflected

sound - 70% reflected and 30% direct, that is typically found in performance

spaces. A conventional speaker only produces 30% reflected sound. It is the

additional reflected sound provided by a Mirage Omnipolar speaker that creates

a miraculous three-dimensional sound experience in your home.

SPEAKER PLACEMENT

The Mirage OS3has been designed for high performance in a wide variety of

settings, but here are a few helpful hints that will help to maximize performance

and your enjoyment.

LEFT AND RIGHT CHANNELS

A general guideline for speaker placement is to set up the space between

speaker and listener at approximately 1-1/2 times the distance between the

speakers. For example, if the speakers were ideally placed a minimum of 6 feet

apart, the best seating position would be 9 feet away.

Ideal height would position the speaker at approximately ear level when the

listener is in a seated position. For the OS3satellite, this can be accomplished by

using the recommended OS3stand.

CENTER CHANNEL

A center channel can be expected to reproduce as much as 60% of a movie’s

soundtrack, most of which is dialogue. In order to maintain the effect of voices

emanating from the actor’s mouth, the OS3CC should be centrally located

between the left and right OS3speakers and be placed above or below the

television.

OS3(8.5x8.5)4:Layout 1 5/21/08 2:07 PM Page 2

SURROUND CHANNEL

The surround speakers should be positioned adjacent to and slightly behind the

primary listening area, on the rear or side wall or on the ceiling to provide a

sense of spaciousness and ambience for all Surround Sound formats. These

speakers should ideally be placed above ear level for best performance. See

diagram 3.

MOUNTING OPTIONS

OS3SATELLITE

The small size and Omnipolar dispersion of the versatile OS3Satellite speakers

permits them to be easily wall mounted. The OS3Satellite comes equipped with

its own specifically designed wall bracket. The bracket allows for two simple

installation alternatives:

a. Carefully drive a #8 screw into a stud in the wall, leaving approximately 1/4 inch

of the screw exposed, then mount the

OS3

Satellite like you would a picture.

Note: Failure to attach the screw safely to a secure spot on the wall can result in

damage or injury. When mounting the speaker at a height of under six feet,

orient the

OS3

Satellite in an upright position. Slide the head of the screw into

the wide portion of the channel opening and slide the

OS3

Satellite downward

until it sits in position. When mounting the speaker at a height of over six feet,

orient the

OS3

Satellite in an upside down position so the grille is facing the floor

and use the bottom key-way channel. Slide the head of the screw into the wide

portion of the channel opening and slide the

OS3

Satellite downward until it sits

in position. See Diagrams 2a, 3

b. Start by marking the bracket's screw positions on the wall with a pencil, then

screw the bracket to the wall. Drywall anchors are recommended for any drywall

wall mount installation to ensure a solid installation. After the bracket has been

mounted to the wall, the

OS3

Satellite speaker can simply be mounted to the

bracket by tightening the included bolt to the bottom of the

OS3

. See Diagrams

2b, 3

CEILING MOUNT: The OS3Satellite speakers can also be ceiling mounted. Please

follow the same instructions outlined in section b above.

OS3CC CENTER CHANNEL

1. Choose the desired mounting position. If possible, find a position on the wall

that allows the

OS3

CC to be mounted directly to a wall stud. Attach the

mounting template (included in the box) to the desired position by using tape or

small nails. (Diagram 6)

IMPORTANT: The arrows on the template should point in the same direction

as the grill. If the OS3CC is mounted below 6 feet, the grille should face

upwards and therefore the arrows on the template should also point

upwards. If the OS

3CC is mounted above 6 feet, the grille should face

downwards, and similarly the arrows on the template should also point

downwards.

2. Using a level, ensure the template is attached level to the wall. It is critical that

the template is level as a mistake at this stage will result in uneven mounting of

(Diagram 7)

3. Outline the two rectangular boxes. Mark the smaller box with an X. The smaller

box is needed for the wire management outlining the recommended wall cut-

out. (Diagram 8)

4. After the template has been removed, use a drywall saw to cut out the smaller

rectangular box marked with an X. Please note that this step is only required if

the wires will be fed through the wall. If a different wire management system is

being used, please ignore this step. (Diagram 9)

5. Mount the wall bracket into position. The use of proper anchors for all screws is

required to ensure a secure installation. Please note that screws and anchors are

not included in the

OS3

CC package. (Diagram 10)

6. Feed the wires through the hole cut out. (Diagram 11)

7. Connect the wires to the appropriate binding posts at the back of the

OS3

CC.

IMPORTANT: Connect the speaker wire from the positive (RED +) terminal on

the amplifier to the positive (RED+) terminal on the speaker. Connect the

negative (BLACK-) terminal on the amplifier to the negative (BLACK-)

terminal on the speaker.

8. After the wires are connected, hang the

OS3

CC on the wall bracket. Center

the

OS3

CC and push down lightly on the speaker to achieve a tight fit between

the speaker and the bracket. If the speaker is not centered, repeat this step.

(Diagram 12)

o w n e r s m a n u a l

OS3(8.5x8.5)4:Layout 1 5/21/08 2:07 PM Page 3
