Sida 1/42

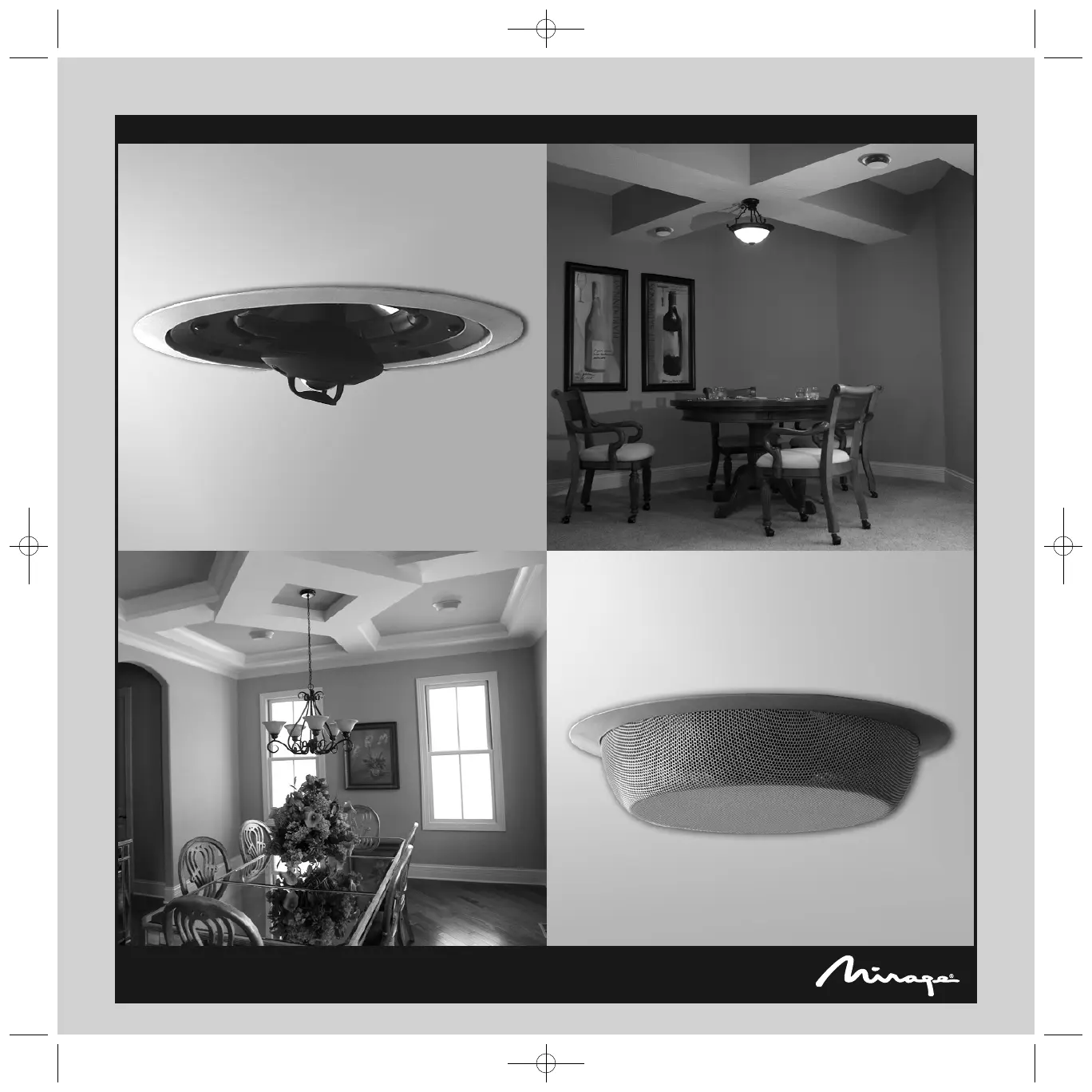

o w n e r s m a n u a l
Omnican Series
Omnican(8.5x8.5)5:Layout 1 1/28/08 4:19 PM Page 1
o w n e r s m a n u a l
IMPORTANT SAFETY
INSTRUCTIONS -
READ CAREFULLY!
Read Instructions: All safety and operating instructions should be read before
the product is operated.
Retain instructions: Safety and operating instructions should be retained for
future reference.
Heed Warnings: All warnings on the product & operation instructions should
be adhered to.
Follow Instructions: All operating and use instructions should be followed.
INTRODUCTION
Congratulations on your purchase of Mirage Speaker Systems products! Proprietary
technology and high quality manufacturing will allow you to enjoy the most natural and
accurate music reproduction for many years. The advice offered in this manual is aimed at
helping you maximize and maintain peak performance, and therefore, your listening
satisfaction. Please take the time to read all of the instructions contained in this manual to
make certain your system is properly installed and functioning correctly.
BREAK-IN PERIOD
We strongly advise that you resist the temptation to play your Mirage Speaker Systems
speakers to their full capabilities until they have been properly broken in. This process
should last approximately 50 to 100 hours of music playback. This can be easily be done
by putting your compact disc player on Repeat mode, while playing a CD with a wide
dynamic range at average room volume listening levels.
AMPLIFIER REQUIREMENTS
All Mirage speakers are designed to be extremely efficient. All models are designed to be
8-ohm compatible allowing playback on almost any amplifier or receiver on the market.
Most amplifiers with a power rating of 20-100 watts per channel will effectively operate
your Mirage speakers.
Warning: If an amplifier or receiver is over-driven, the resulting distortion is
actually many times greater than its rated power. Over-driven amplifier
distortion is called “Clipping”, easily identified by its fuzzy, distorted sound,
and can damage any speaker. The volume control of most amplifiers and
receivers is a logarithmic type, which means that full power may be reached
with the volume control set at as little as the halfway point. Operating the
loudness, treble, or bass controls increases power output well beyond rated
levels. The warranty on your speakers is therefore void if the voice coils are
burned or damaged as a result of overpowering or clipping.
LIMITED WARRANTY POLICY
WARRANTY FOR UNITED STATES AND CANADA
(SEE BACK COVER)
WARRANTY OUTSIDE OF THE UNITED STATES AND CANADA:
Product warranties may be legislated differently from one country to another. Ask
your local dealer for details of the LIMITED WARRANTY applicable in your country.
NOTE: Please retain the carton and packing material for your Mirage Speaker
Systems products to protect them in the event of a move or if they need to
be shipped to a service center. Product received damaged by a service center
that has been shipped by the end user in other than the original packaging
will be repaired, refurbished and properly packaged for return shipment at
the end user's expense.
CONTENT
2
o w n e r s m a n u a l
Omnican Series
OMNICAN Speaker OMNICAN Grille
Hole cut-out Template Grille Removal Tool
Manual
Omnican(8.5x8.5)5:Layout 1 1/28/08 4:19 PM Page 2
PRODUCT / HOLE CUT-OUT DIMENSIONS
PRODUCT DIMENSIONS: HOLE CUT-OUT DIMENSIONS:
PAINTING THE GRILLE AND THE BEZEL
If you wish, you can paint the grille and the visible frame of the OMNICAN to match the
décor and design of your home. Please take precautions to avoid any paint coming into
contact with the woofer cone, the tweeter, or the OMNIGUIDE module as this could
damage the speaker. Follow these simple steps to paint the speaker:
1) Separate the grille from the speaker.
2) The separated grille can now be painted on its own.
3) In order to paint the bezel, you should construct a protective cylindrical cover to slide
between the frame and the speaker (into the area where the grille is usually affixed). This
protective cover can be created by overlapping the ends of a piece of paper approximately
16-inches (40cms) long.
4) After the protective cover is set in place, paint the frame, and then remove the protective
cover when the paint is dry.
NOTE: Please do not paint the black components which are hidden
underneath the grille, as they can easily be damaged. These components
would also become more visible underneath the grille when painted a
lighter color. If any holes in the grille become filled with paint, find a small
sharp tool and carefully remove the paint before completing the installation.
o w n e r s m a n u a l
3
2.87”/73mm
OC-65 with back-box OC-65 without back-box
OC-55 with back-box OC-55 without back-box
OC-45
OC-65
OC-55
OC-45
Omnican(8.5x8.5)5:Layout 1 1/28/08 4:19 PM Page 3
