Dictaphone PowerMic II

User Guide

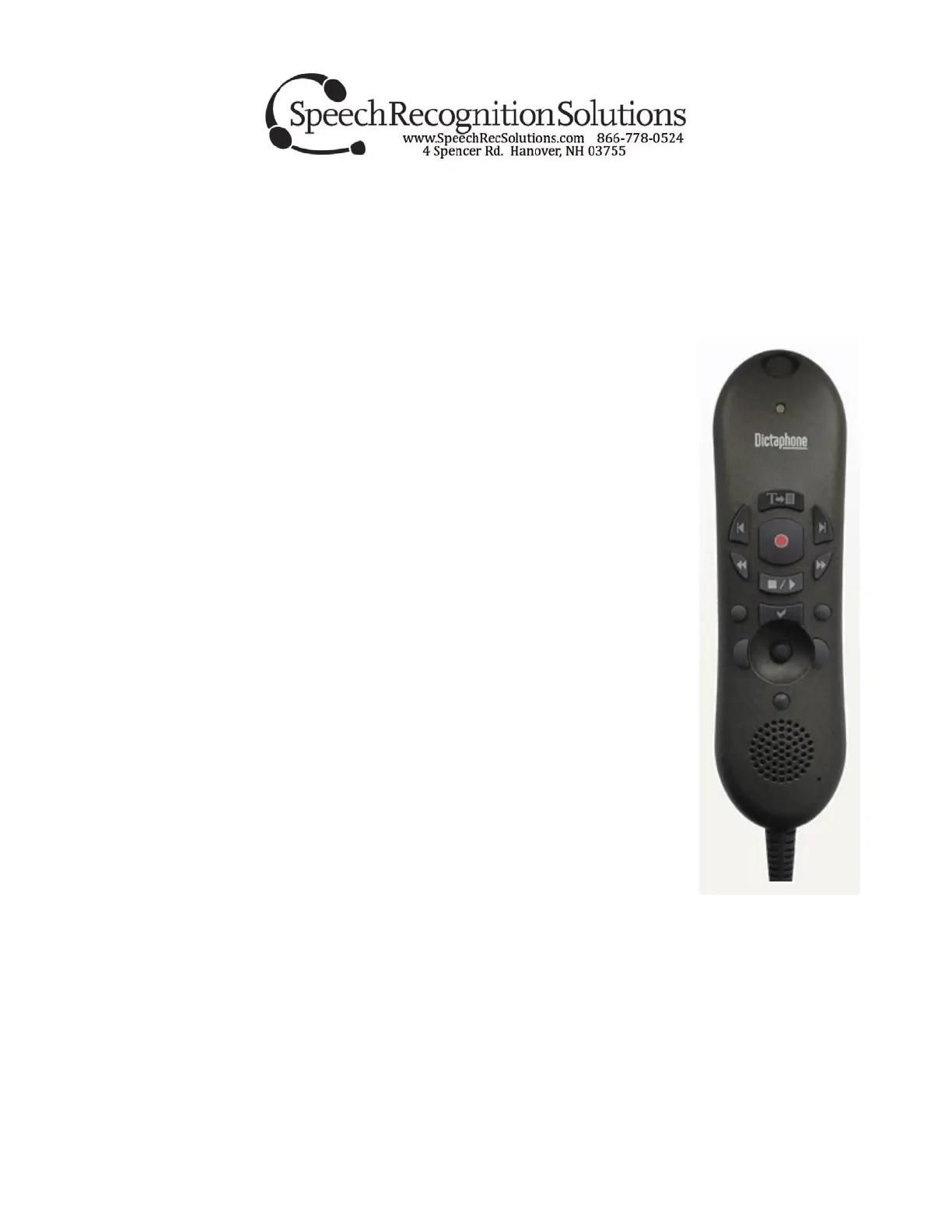

Congratulations on your purchase of a Dictaphone PowerMic II handheld microphone! This is a

very high quality microphone which works extremely well with speech

recognition software. When used with Dragon 10 Medical, it is possible to

achieve high levels of integration between buttons on the PowerMic II and your

software.

Drivers: the microphone does not come with any drivers. All needed drivers will

be installed automatically when using the PowerMic II with appropriate software.

Software Integration: The full functionality of the PowerMic II is not present in

all software environments. See chart at end of this document for details.

Setting up the PowerMic with Dragon NaturallySpeaking

1. If you are using the PowerMic II with any of the non-medical versions of

NaturallySpeaking, you simply need to select the PowerMic II as your

preferred sound input device. Do this as follows:

a. Plug the microphone into any available USB port. Drivers will

auto- install.

b. Within Dragon select Tools > Accuracy Center > Check my audio

settings.

c. Select “PowerMicII- NS” as the sound source

d. Complete the sound set up wizard as directed -

e. Although you will have function of the microphone, speaker, left

and right mouse click buttons, and the track point button, it is -

not possible to program the other 10 buttons on the PowerMic II

with these versions of NaturallySpeaking

2. With either Dragon 9.5 Medical or 10 Medical, it is necessary to formally select the PowerMic II

as the sound source in order to have the added tab on the options menu for advanced

programming of the 10 buttons on the front of the PowerMic II. Selecting the PowerMic II as

the sound source can be done using one of two methods:

a. Create a new user (Dragon menu > Manage Users > New) and select the “PowerMic II

Microphone” as the dictation source. Train the new user as usual. Or …

b. From within an existing user, change the dictation source by going to Dragon menu >

Open User > Source (tab on right) and select “new”. You will be presented with a

window from which you can choose “PowerMic II Microphone” as your new source.

You can thereafter choose whether to perform training or not. Selecting a “short”

training is ideal but not absolutely necessary.

Programming Dragon to use the Keys on the PowerMic II (Dragon 9.5 Medical and 10 Medical Only)

Assigning functions in Dragon Medical 9.5 works exactly the same as programming keyboard hotkeys.

Program buttons in Dragon 10 Medical as follows:

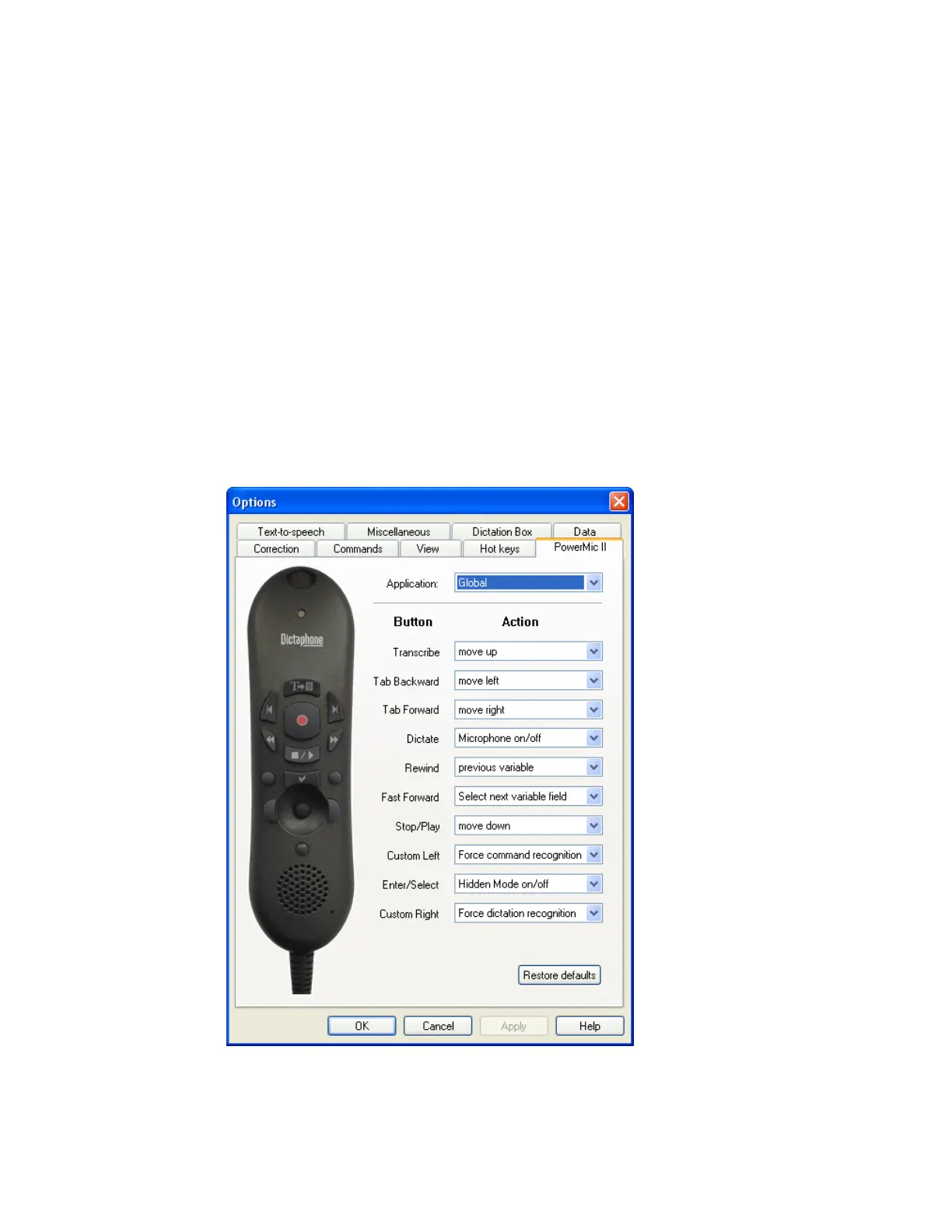

1. Open the PowerMic II tab in the options menu by clicking on Tools > Options > PowerMic II tab.

You will see the following window (default selections have already been changed on the picture

below):

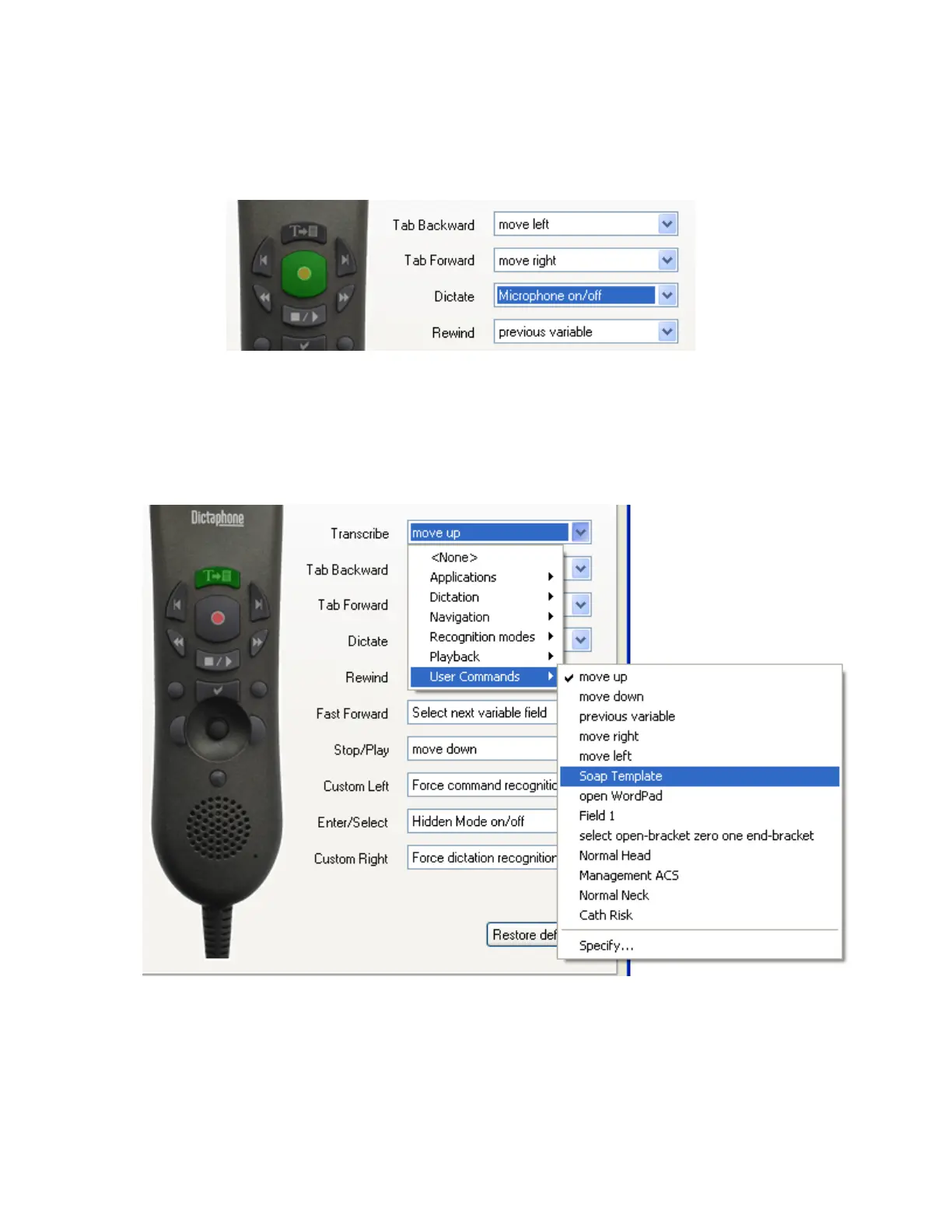

2. On your PowerMic II microphone, push on the button you want to program. You will notice that

the corresponding button on the PowerMic II picture will turn green and the associated drop

down menu to the right will be highlighted (see figure below).

3. From the drop down menu, select the function you want to assign to the selected button.

4. If you want to program a button to cause a command to be initiated, the drop down menu will

show you the last 5 commands you used and any of these can be selected. If necessary,

therefore, in advance of programming a button, be sure to use any commands you plan to

assign to a PowerMic II button.

5. If you plan to program a button to advance sequentially through variable fields in a document,

make the appropriate selection from the navigation category of the drop down menu (see -

below).
