VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship
under conditions of normal use and service for a period of one year from the date of
shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim,
2. the defect is not the result of damage, misuse, or negligence after the original
shipment.
3. the product has not been altered in any way or repaired by others and that
factory sealed units are unopened (A service charge plus parts and labor will be
applied to units defaced or physically damaged),
4. freight charges for the return of products to Valcom are prepaid,
5. all units ‘out of warranty’ are subject to a service charge. The service charge will
cover minor repairs (Major repairs will be subject to additional charges for parts
and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied,
and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential
damages, loss of time or other losses incurred by the buyer in connection with the
purchase, operation, or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is
received in damaged condition, the carrier should be notified immediately. Claims for such
damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters:
Valcom, Inc.
1111 Industry Avenue
Roanoke, VA 24013
Phone: (540) 427-3900
FAX: (540) 427-3517
In Canada:
CMX Corporation
35 Van Kirk Drive #11 and 12
Brampton, Ontario L7A1A5
Phone: (905) 456-1072
FAX: (905) 456-2269
TROUBLESHOOTING CHART
PROBLEM CORRECTIVE ACTION
No sound in page mode.
Low volume in page
mode.
Poor listening in
talkback mode.
• Check tip and ring for audio at speaker.
• Check tip and ring at control unit.
• Check volume controls at page control.
• Check for open circuits in wiring.
• Check talkback volume controls at page control.
Set control at minimum suitable listening level.
INSTALLATION INSTRUCTIONS FOR
SURFACE MOUNT DOOR SPEAKER
V-1074
Issue 3 947013
V-1074 DOOR SPEAKER
The V-1074 Talkback Door Speaker can be used with all Valcom Handsfree
Talkback Page Controls, Door Answering Units, or any control with a 45 ohm
speaker output. It can be surface mounted with the two screws provided or
mounted in a single-gang electrical box.
Dimensions/Weight
• 5.5”H x 4.0”W x 1.125”D (13.97cm H x 10.16cm W x 2.86cm D)
• 0.5 lbs. (.23 kg)
INSTALLATION
NOTES:
Connect using unshielded, twisted pair cable and limit runs to 800
feet or less. Up to three (3) pair cable may be required when
connecting to the door speaker.
After making wire connections, cover uninsulated connections
with silicone tape, insulating putty or paint, to prevent tracking.
1. Connect TIP and RING from the Valcom Page Control speaker output to the
speaker connections (marked TIP and RING) on the Door Speaker as shown
below.
2. Connect CALL button on the Door Speaker to the customer provided signal
equipment as shown below. Switch is rated at 100 mA maximum current.
MOUNTING
The V-1074 has mounting holes located on the rear of the unit. To mount, open
the enclosure by inserting a flat blade screwdriver in the slot at the bottom of the
unit and prying the front assembly away from the mounting plate. Position the
mounting plate at the desired location and fasten to the wall or electrical box using
the screws provided. When connections are complete, snap the front assembly to
the mounting plate.
TECHNICAL ASSISTANCE
When trouble is reported, verify there are no broken connections to the unit.
Assistance in troubleshooting is available from the factory. When calling, you
should have a Volt-ohm meter and a lineman's test set available and be calling
from the job site. Call (540) 427-3900 and ask for Technical Support, or (540)
427-6000 for Valcom 24-hour Automated Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities
in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly
stating your company name, address, phone number, contact person, and the
nature of the problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056

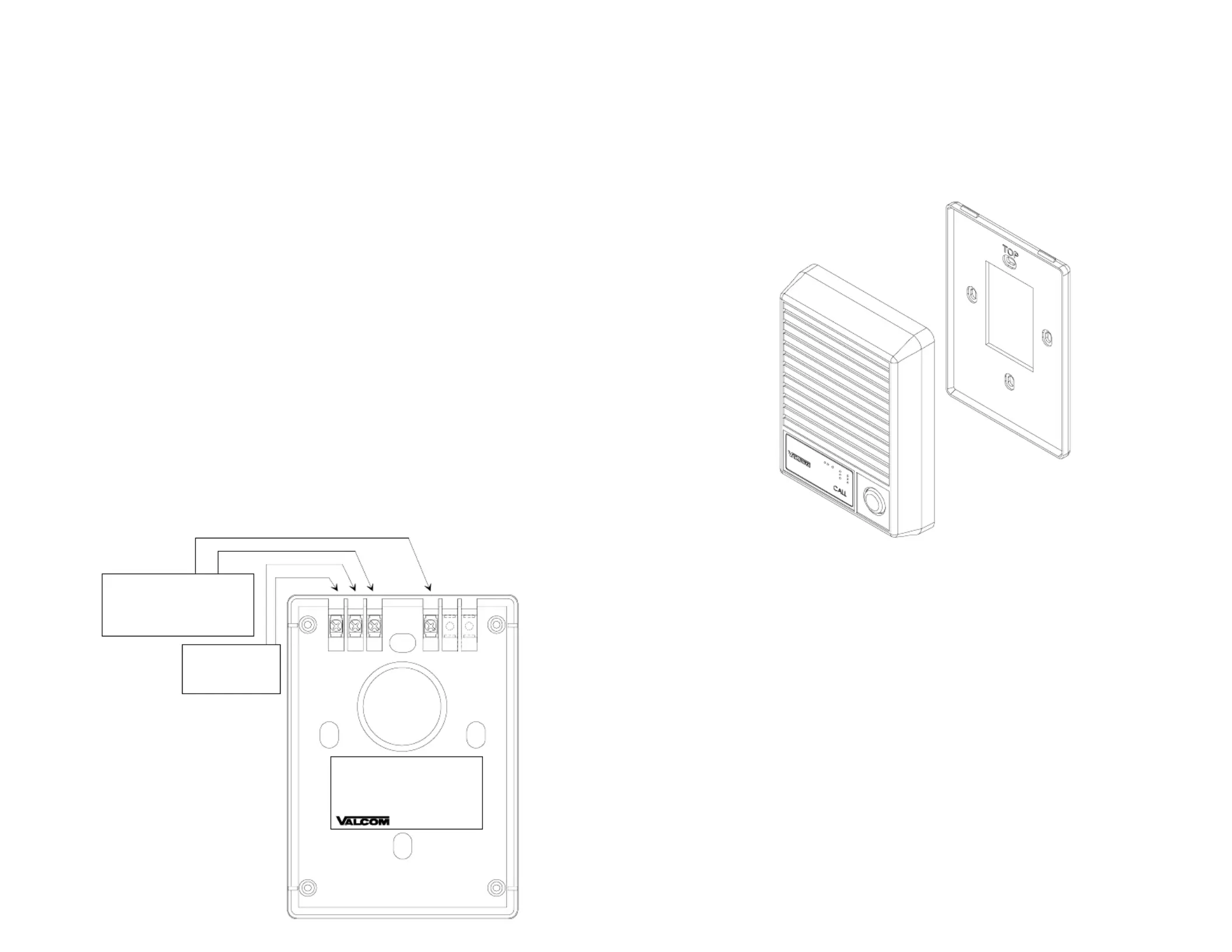

M o unting
P late
F ro nt
A s s e m b ly
1 2 3 4 5 6
V-1074 D OOR SPE AKER
CO N NE C TIO NS :
1S P E AK E R (T IP )
2 S P E AK E R (R IN G )
3 C AL L B U T TO N C .C .
4 C AL L B U T TO N C .C .
R O AN O K E , VA, U S A
TO ZON E OU TPU T
OF H A NDS F RE E
TA LK B A CK P A G E
CON TRO L
TO S W ITCH CO NNE C TIO N S
ON V A LCO M P A G E CO NTRO L
OR O TH E R S IG N A LLING
S Y S TE M
(M AX CUR R E N T: 10 0m A )
RE AR O F SP EAKER
AS SEMBLY
RING
TIP
C AL L B U TTO N C .C .
C AL L B U TTO N C .C .
