TECHNICAL ASSISTANCE
When trouble is reported, verify there are no broken connections to the
unit. Assistance in troubleshooting is available from the factory. When
calling, you should have a VOM and a lineman's test set available and be
calling from the job site. Call (540) 563-2000 and press 1 for Technical
Support, or visit our website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom, Inc. maintains service
facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address, phone number, contact
person, and the nature of the problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
Issue 1
INSTALLATION INSTRUCTIONS FOR
V-1096 Audio Interface

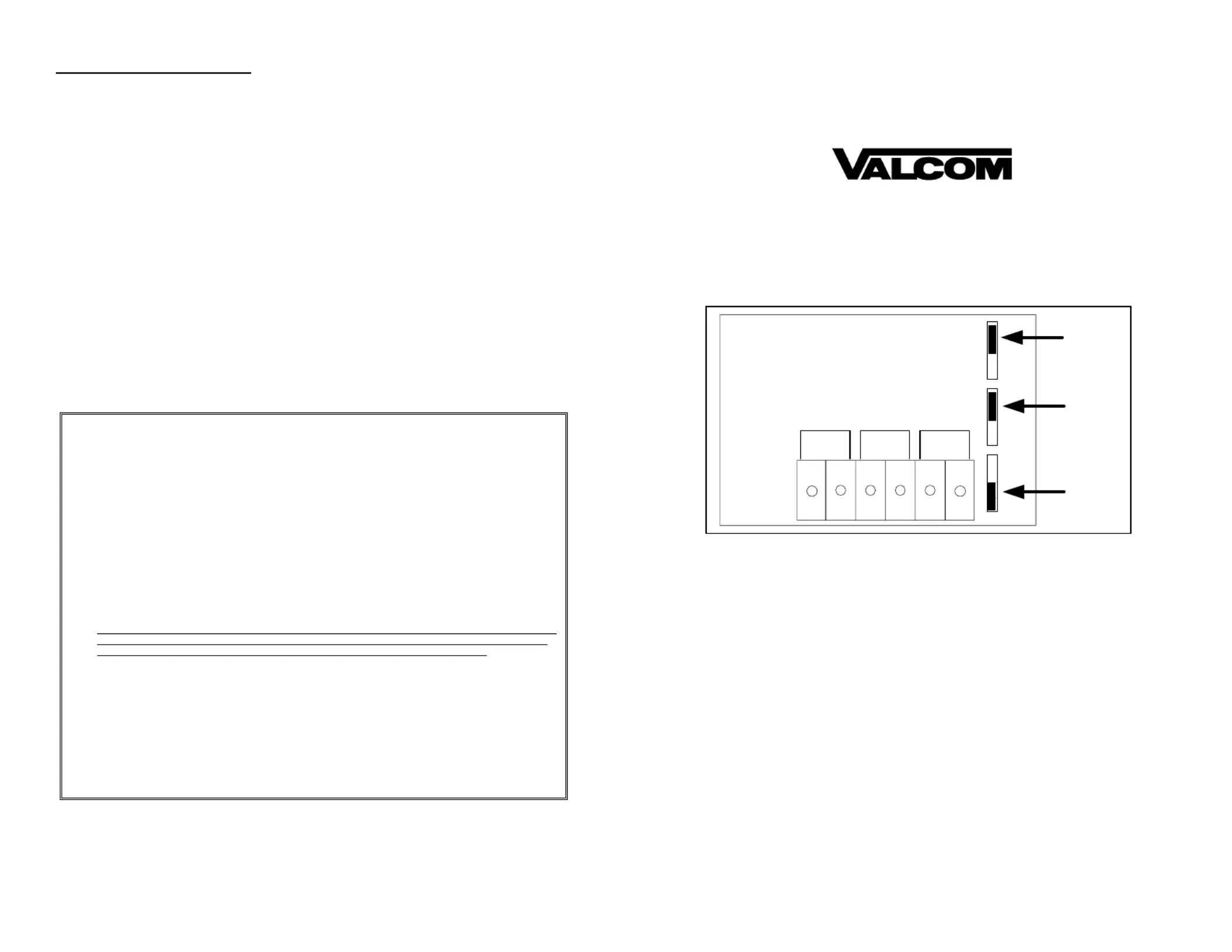

DIMENSIONS/WEIGHT
• 1.75" H x 3.75" W x 1.25" D (4.45cm H x 9.53cm W x 3.2cm D)
• 0.5 lbs. (0.23 kg)
CONNECTIONS
The V-1096 is used to connect the V-9908 Message/Page Panel to
Valcom one-way amplified speakers and horns. In addition it is used to
connect the Message/Page panel to various Valcom page controls.
947623
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under the conditions
of normal use and service for a period of one year from the date of shipment. The obligation under this
warranty shall be limited to the replacement, repair or refund of any such defective device within the warrant
period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim,
2. the defect is not the result of damage, misuse, or negligence after the original shipment,
3. the product has not been altered in any way of repaired by others and that factory sealed units
are unopened (A service charge pl be applied to units defaced or physically us parts and labor will
damaged),
4. freight charges for the return of products to Valcom are prepaid,
5. all units “out of warranty” are subject to a service charge. The service charge will cover minor
repairs (Major repairs will be subject to additional charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall
Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses
incurred by the buyer in connection with the purchase, operation, or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in
damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with
the carrier in accordance with the F.O.B. point.
Headquarters:
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019-5056
Phone: (540) 563-2000
Fax: (540) 362-9800
Shorting
Jumper
AUDIO
INPUT
AIDIO
OUTPUT
CONTACT
CLOSURE
1
1
1
2
2
2
3
3
3
Shorting
Jumper
Shorting
Jumper
V-1096
AUDIO ADAPTER
Page/Message Panel
Play Contact
MULTIPATH
MICROPHONE
OVERRIDE INPUT
Low Z Microphone Input
Switch X Input
25 PR. CPU CABLE
Shorting
Jumper
Position
AUDIO
INPUT
AIDIO
OUTPUT
CONTACT
CLOSURE
1
1
1
2
2
2
3
3
3
Shorting
Jumper
Position
Shorting
Jumper
Position
V-1096
AUDIO ADAPTER
Page/Message Panel
Audio Out
Page/Message Panel
Play Contact
Page/Message Panel
Audio Out
Figure 3: Connections to MultiPath Microphone
Input
Switch X Input
Low Z Microphone Input

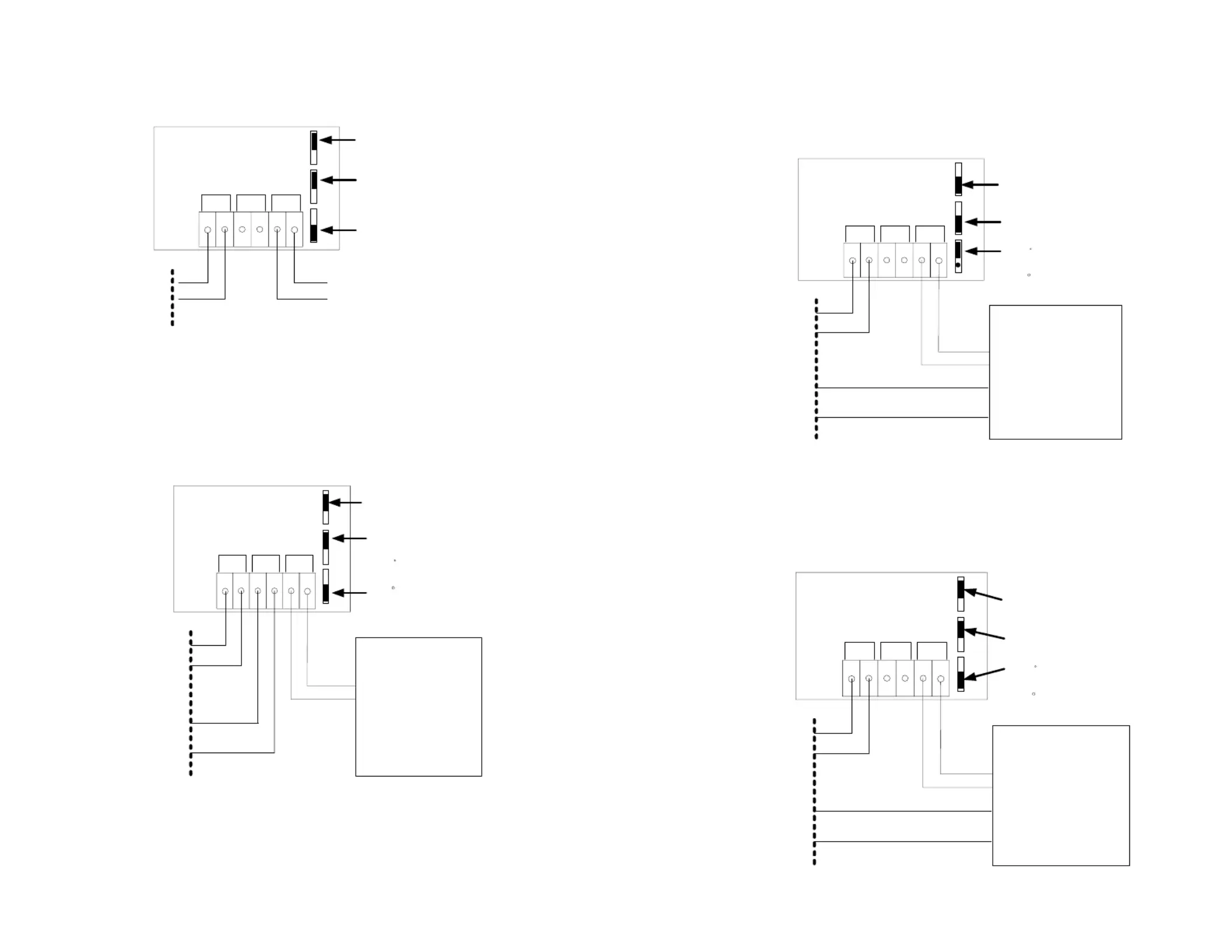

Figure 1: Shows connecting the Message/Page Panel to one-way
speakers and horns. For drawing simplification speaker and horn power
connections are not shown.
Figure 2: Shows the V-1096 used to connect the Message/Page Panel to the
override input of a V-2001A One-Way page control. This allows the recorded
messages or the microphone of the Message/Page Panel to override routine pages
and background music provided by the V-2001A page control.
Figure 3: Shows the V-1096 used to connect the Message/Page Panel to
the microphone input of a MultiPath system. This allows the recorded
messages or the microphone of the Message/Page Panel to override all
pages and background music provided by the MultiPath system. Refer to
the MultiPath system manual for programming instructions of auxiliary
contact input.
Figure 4: Shows the V-1096 used to connect the Message/Page Panel to
the microphone input of a V-2924A system. This allows the recorded
messages of the microphone of the Message/Page Panel to override all
pages and background music
Shorting
Jumper
Position
AUDIO
INPUT
AIDIO
OUTPUT
CONTACT
CLOSURE
1
1
1
2
2
2
3
3
3
Shorting
Jumper
Position
Shorting
Jumper
Position
V-1096
AUDIO ADAPTER
TO TIP & RING VALCOM AMPLIFIER
SPEAKERS/HORNS
FIGURE 1: Connections to Valcom One-Way Amplified Speakers and Horns
Page/Message Panel
Audio Out
Page/Message Panel
Audio Out
Figure 4: Connections to V-2924A Override Port
Page/Message Panel
Play Contact
V-2924A PAGE PORT
OVERRIDE INPUT
Dry Priority Activate
Dry Priority Activate
P7 CABLE
Shorting
Jumper
Position
AUDIO
INPUT
AIDIO
OUTPUT
CONTACT
CLOSURE
1
1
1
2
2
2
3
3
3
Shorting
Jumper
Position
Shorting
Jumper
Position
V-1096
AUDIO ADAPTER
Page/Message Panel
Audio Out
Page/Message Panel
Play Contact
Page/Message Panel
Audio Out
Override Page Port Tip
Override Page Port Ring
Page/Message Panel
Play Contact
V-2001A
OVERRIDE INPUT
TIP & RING
Shorting
Jumper
Position
AUDIO
INPUT
AIDIO
OUTPUT
CONTACT
CLOSURE
1
1
1
2
2
2
3
3
3
Shorting
Jumper
Position
Shorting
Jumper
Position
V-1096
AUDIO ADAPTER
Page/Message Panel
Audio Out
Page/Message Panel
Play Contact
Page/Message Panel
Audio Out J2 Tip and
Ring Override
Figure 2: Connections to V-2001A Override Input
