Issue 0
1947098
V-2972

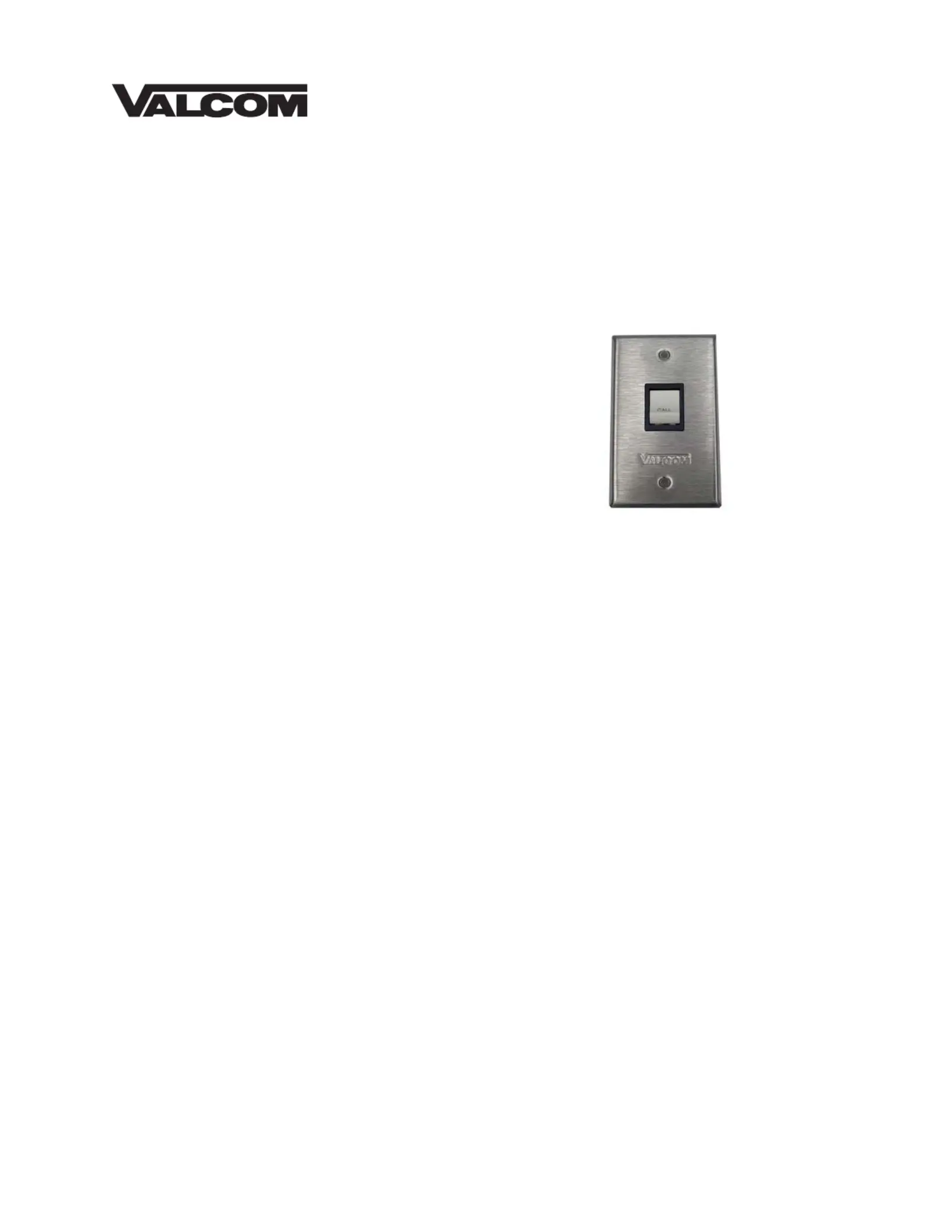

CALL SWITCH
INTRODUCTION
The V-2972 Call Switch was designed to be
used with Talkback Page Control Units with the
remote calling feature. The V-2972 provides a
momentary spring return rocker switch for
connection to customer provided signaling
equipment.
DIMENSIONS/WEIGHT
• 4.50" H x 2.75" W x 1.50" D
(11.43cm H x 6.99cm W x 3.81cm D)
• 0.2 lbs. (.09 kg)
FEATURES
• Designed to fit in a standard single-gang
electrical box.
• No external power source required.
• White "Call" button for normal call.
• Satin finished one-gang stainless steel plate.
CONNECTIONS/SETUP
1. Connect switch inputs from control unit to
V-2972 as shown in connection diagram.
2. Connections are made by factory supplied
3 inch insulated pigtails that connect to
push-on style terminals.
3. Place V-2972 over standard single-gang
electrical box with minimum depth of
2 inches and fasten in place using the two
#6-32 screws provided.
TECHNICAL ASSISTANCE
When trouble is reported, verify that there are no
shorts or grounds on cabling.
Assistance in troubleshooting is available from
the factory. When calling, you should have a
VOM, a telephone test set available and call
from the job site. Call (540) 563-2000 and press
1 for Technical Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person
and the nature of the problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
2
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service
for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse, or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service
charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units ‘out of warranty’ are subject ill cover minor repairs (major repairs willto a service charge. The service charge w
be subject to additional charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be
liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection
with the purchase, operation or use of the product.
This warranty specifically excludes damage incurred in shipment. received in damaged condition, the In the event a product is
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.
Headquarters: In Canada
Valcom, Inc. CMX Corporation
5614 Hollins Road 35 Van Kirk Drive #11 and 12
Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5
Phone: (540)563-2000 Phone: (905) 456-1072
FAX: (540) 767-1555 FAX: (905) 456-2269

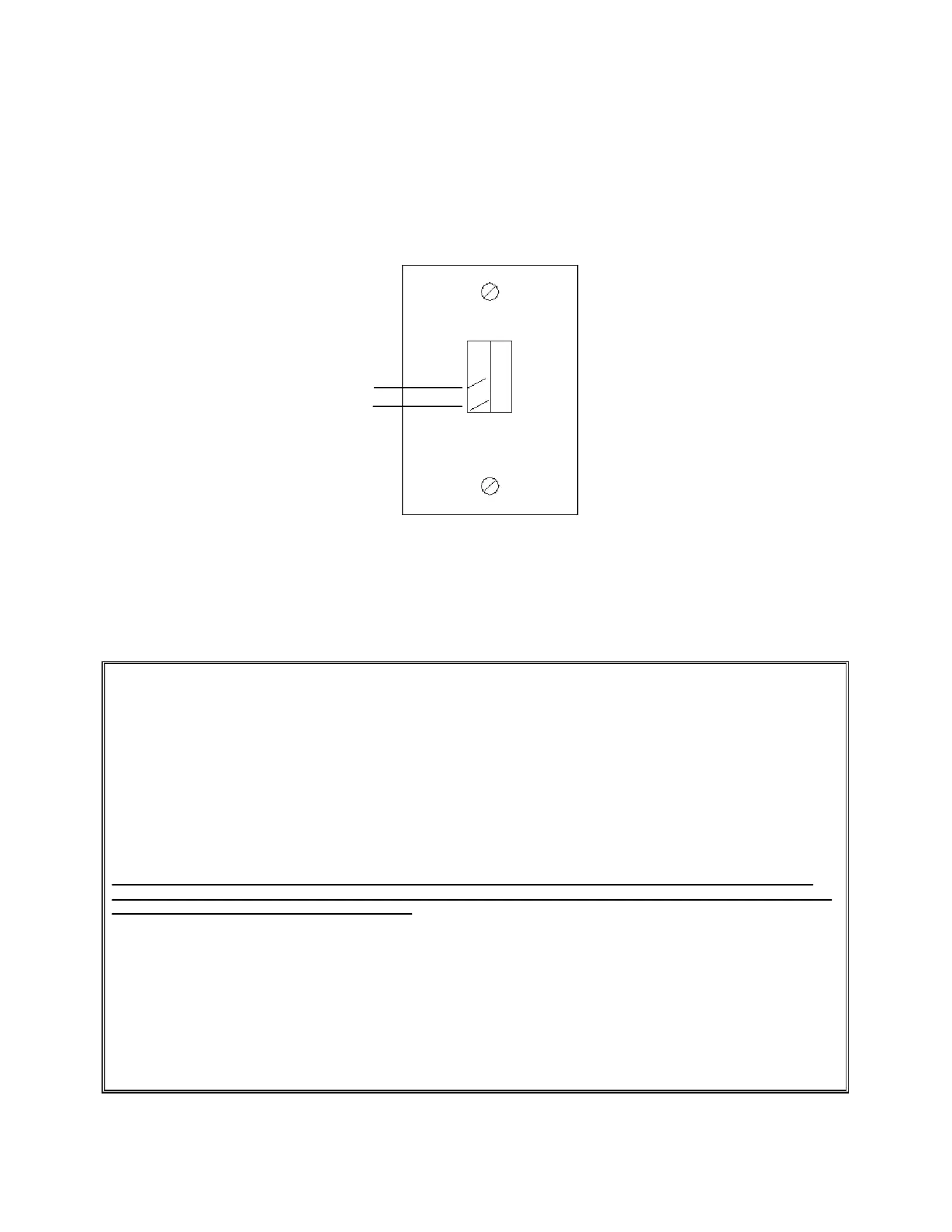

V-2972 Connections
(Rear View)
Control unit SW
Control unit SW
Spade clip
connections
provided
