Sida 1/4
Issue 3
1947174
by
PagePac®
STATION DOOR PHONE
V-5324004
INTRODUCTION
The Station Door Phone is specifically
designed to communicate with a telephone
system that provides Primeline, Off-hook
ring-down, Hotline and Elevator Call
capabilities.
The Station Door Phone connects to a
standard telephone system analog station port
to allow the caller at the door speaker to have
a two-way conversation with someone inside
the building. The weather resistant enclosure
is ideal for indoor or outdoor environments.
SPECIFICATIONS
FEATURES
Push Button - to initiate signaling
LED - lights up to indicate activation
Two-way handsfree voice communication
Volume Control - adjusts speaker volume
No external power required
Stainless steel faceplate with tamper
resistant hardware
Weather resistant gang box included
VOX circuit - to turn unit off with lack of
voice activity
Turns off if button is depressed a second
time
Alert tone emits from speaker when
accessed
Dimensions/Weight
Unfinished (without the gang box)
4.63” W x 4.63” H x 1.75” D
(11.76cm x 11.76cm x 4.45cm
0.72 lbs. (0.32 kg)
Finished (with the gang box)
4.75” W x 4.75” H x 2.50” D
(12.07cm x 12.07cm x 6.35cm)
1.52 lbs. (0.68 kg)
OPERATION
Off-Hook Ring-down, Hotline, Primeline
The Station Door Phone operates much like a
telephone without a dial-pad. It connects to an
analog station port on a telephone system.
When the Station Door Phone push button is
pressed, this unit provides an off-hook
condition to the telephone system analog
station port, the faceplate LED lights and an
alert tone beeps at the speaker.
Some telephone systems provide a
programmable auto-dial/ring-down feature.
When used with these telephone systems, the
phone system will automatically dial a
telephone number (preprogrammed into the
phone system software) when the Station
Door Phone push button is pressed. The
person answering the ringing phone inside is
automatically connected to the caller at the
Station Door Phone.
To call the Station Door Phone from a
telephone, dial the extension number, just as
you would dial a telephone extension.
NOTE: See Figure 5 for normal default Dip
Switch settings.
2
Auxiliary Alert
The Station Door Phone can be used to
activate an Auxiliary Alert device (such as a
door bell or chime) instead of ringing a
telephone.
VOX Operation
The Station Door Phone is equipped with a
VOX (voice activated switch) circuit. This
feature is provided to automatically drop
communications to the door speaker when
there is no audio detected, for more than 24
seconds, from the telephone extension within
the building. Visitors talking into the door
speaker will not affect the VOX circuit.
INSTALLATION
There are two surface mount methods to
secure the Station Door Phone to a wall. The
first method utilizes mounting brackets. The
gang box mounting brackets (included) can be
screwed to the back plate so they protrude out
the sides of the box. Position the screws
through the bracket holes and secure the box
to the wall.
Another method to attach the gang box to the
surface of a wall is to drill mounting holes (4)
directly into the back of the box. Position the
screws through the inside of the box and
secure to the wall.
NOTE: All conduit and closure plug
connections should be adequately sealed
(i.e., pipe joint compound) for wet location
installations.
Do not allow conduit to protrude into rear
opening of outlet box to avoid interference with
Station Door Phone. Wire length should be
kept to 6 inches to avoid interferences during
installation. For maximum protection from
ESD or lightning, connect the outlet box to
earth ground via the conduit.
CONNECTIONS
The Station Door Phone back panel has two
sets of terminals; one set is labeled “ALERT”,
and the other labeled “TIP/RING” (see Figure
1). The “TIP/RING” terminals that connect to
your telephone system must use twisted pair
phone wire. See Figure 2 for wiring diagram.
Follow steps below:
NOTE: Check National Electrical Code and
applicable local codes and ordinances for
exact wiring requirements for your area.
1. Loosen each of the terminal block screws
and insert exposed wire ends into
appropriate terminal block locations.
Tighten screws and ensure wire
connections are correct before continuing.
2. Place the dip switch in the position shown
in Figure 5 (factory default setting).
Program your telephone system for the
phone number(s) to be called when the
Station Door Phone button is activated.
Dip Switch Features
(Power must be cycled after dip switch
settings change).
Guard Mode - Alerts the guard with the
second DPDT (Double Pole, Double Throw)
contacts and disables off-hook control.
Elevator Mode - Depressing button activates
the unit and can not be turned off (on-hook)
and disables VOX timeout.
Push On-Push Off Mode - Depress button to
activate, press again to cancel. 24 second
VOX timeout. Factory default position.
Line Flash Ring Mode - Depress button to
activate. Press again to flash (800mS) to
signify “telephone” host system to re-ring.
Push On Only Mode - Depressing button
activates unit and can not be turned off, unit
returns on-hook status after 24 second timeout
period.
Momentary Page Mode - Push to activate.
NOTE: Total length of wire from the door
phone unit to the telephone system is not to
exceed 1500 feet.
3. Connect the Station Door Phone wires to
the designated station port on the
telephone system.
4. Test the system by having an assistant call
the designated extension number of the
Station Door Phone.
3

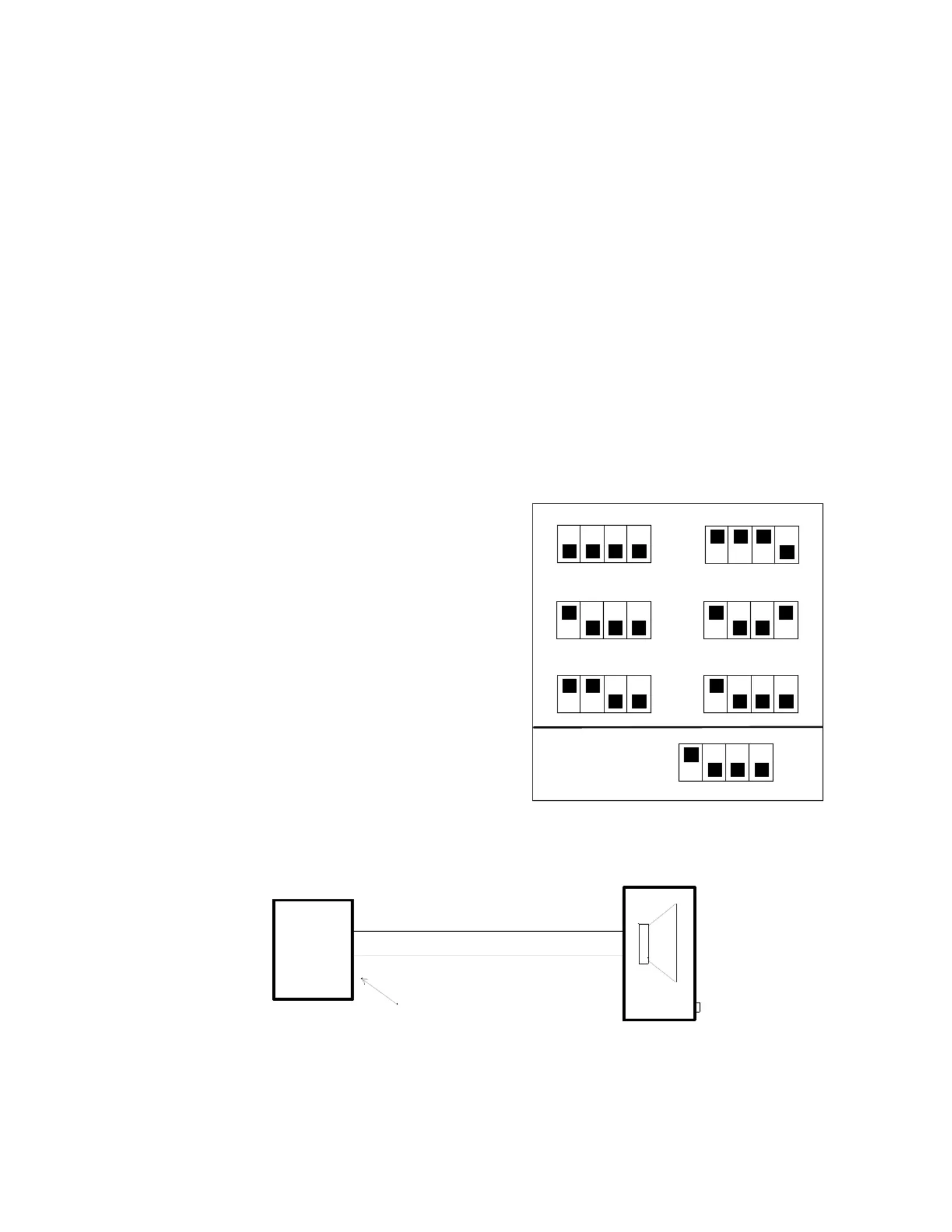

Guard Elevator
Push On Push Off Line Flash Ring
Push On Only Momentary Page
1 2 3 4
ALERT Tip Ring
On
Off
Adjust the speaker volume (see Figure 3)
to an appropriate level.
5. Place poly-fil pad in designated position for
good sound quality (see Figure 3).
6. Secure Station Door Phone and faceplate
to double-gang outlet box with four
mounting screws (included).
INSTALLATION INSTRUCTIONS
CUSTOMER PROVIDED OR EXISTING
DOOR ALERT (SIGNALING UNIT)
These instructions apply to the use of a
customer provided auxiliary alert or an existing
door alert (signaling) unit.
1. Connect Station Door Phone to existing
door alert push button so that existing
button is in parallel with Station Door
Phone Terminals 1 and 2 (see Figure 2).
NOTE: While Station Door Phone button or
existing door bell button is depressed some types
of alerting devices will continue to sound or
operate.
If desired, the existing door bell button can be
removed thus allowing the Station Door Phone
button to replace the function of the existing
door bell button. Connect wires from existing
door bell button to Terminals 1 and 2 on the
Station Door Phone (see Figure 4).
NOTE: When using Auxiliary Alert option, all
four wires must be connected.
TECHNICAL ASSISTANCE
When calling, have a VOM and a telephone
test set available and call from the job site.
Call (540) 563-2000 and press 1 for PagePac
Technical Support or visit our websites at
http://www.pagepac.com and
www.valcom.com.
Should repairs be necessary, attach a tag to
the unit clearly stating company name,
address, phone number, contact person and
the nature of the problem. Send the unit to:
Valcom, Inc.
PagePac® Repair Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
FIGURE 1. STATION DOOR PHONE TERMINAL
LOCK/DIP SWITCHES
FIGURE 2. STATION DOOR PHONE WIRING DIAGRAM
PHONE SYSTEM
T & R
STATION PORT
TWISTED PAIR
PHONE WIRE
DOOR
BUTTON
DOOR
SPEAKER
STATION
DOOR PHONE
3
4
