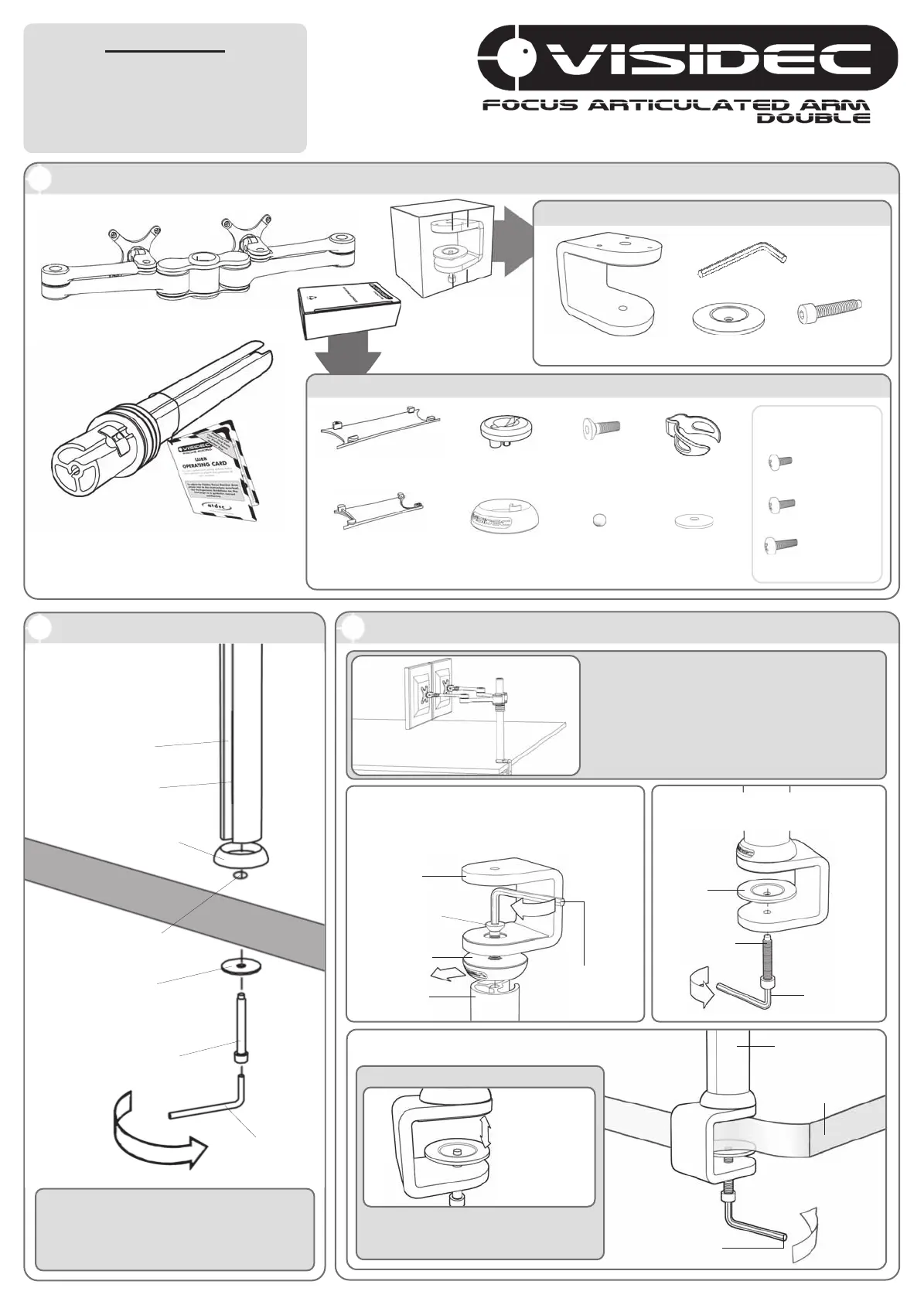

A Component Checklist - Check you have received all parts against the component checklist prior to installing
Bolt Through
Installation Instructions
Steel washer
Bolt Through Base
M8 Desk Clamp Screw
(found in the Desk
Clamp Box)
5mm Allen
Key
9mm (³/8”) Hole
Drill a 9mm (³/
8”) hole in the
work surface at the desired
position and assemble as
shown below.
NOTE:
Ensure the slot in the Pole Assembly faces away
from the user.
It is recommended that the Pole Assembly be
mounted towards the rear edge of the work surface
IMPORTANT:
The “User Operating Card”
must be left
with Visidec Focus Articulated
Arm Double once installed
Desk Clamp
Pole Assembly
B1 B2
mottoB
Slot
NOTE: When using the Desk Clamp mounting option,
the displays can only be used in side by side
configuration as shown. Failure to do so may result in
serious damage to product and displays.
Tighten Firmly
Double Arm
Assembly
Pole Assembly
User Operating Card
(see note at top of page)
m
o
t
t
o
B
p
o
T
Desk Clamp Box
5mm Allen
Key
Desk Clamp Bracket M8 Desk
Clamp Screw
Bits Box
Primary Arm
Cable Cover (x2)
Secondary Arm
Cable Cover (x2) Bolt Through
Base Steel
Washer
M8x30mm
Screw
Pole Top
Cap Cable Clip (x2)
Display Mounting
Screws
M4x16mm
(x8)
M4x12mm
(x8)
M4x10mm
(x8)
Cable
Balls (x2)
Work Surface
Pole
Assembly
Step 3: Adjust the height of the Pressure Plate to suit the
Work Surface and tighten firmly in the desired location.
5mm Allen Key
Tighten Firmly
Step 1: Attach the Desk Clamp Bracket to the bottom
of the Pole Assembly using the M8x30mm Screw.
Tighten firmly using the 5mm Allen Key.
Ensure the Visidec logo is facing the front as shown.
M8x30mm
Screw
mottoB
Step 2: Install the M8 Desk Clamp
Screw and Pressure Plate as shown.
Desk
Clamp
Bracket
5mm
Allen Key
Bolt Thru
Base
Pole
Assembly
Pressure
Plate
M8 Desk
Clamp Screw
5mm
Allen Key
NOTE: It is recommended that the Pole
Assembly be clamped to the rear or side
edge of the work surface
Suits 12mm (½”)
to 38mm (1½”)
thick work
surfaces
ADJUSTMENT RANGE
Pressure Plate
Tighten
Firmly
D Mount the Display
For Displays with 75mm x 75mm
(3” x 3”) mounting hole patterns
M4 Display Mounting Screws
Step 1: Connect cables
Step 2: Insert
Secondary Arm
Cable Cover*
Step 3: Insert
Primary Arm
Cable Cover*
NOTE: Leave enough slack in the
cables to allow for movement
E Cable Management - Make sure arms are fully extended before connecting cables
NOTE: If Visidec Focus
Articulated Arm Double is
to be used in a multi-user
evironment, do not install
the Cable Balls and only
use the Cable Clips.
C Assemble the Double Arm Assembly onto the Pole Assembly
Step 1:
Unlock the
handgrip
Step 2:
Lift the handgrip to
the top of the pole
so that the Handgrip
Tab protrudes
Step 3:
Slip the Double Arm Assembly
over the Handgrip Tab and
then onto the Pole
Step 4:
Slide the Double
Arm Assembly
and the Handgrip
down the Pole.
Step 5:
Lock the
Handgrip
Step 6:
Insert the Pole
Top Cap into
the Pole
Step 7:
Insert the 5mm Allen
Key into the slot in
the Pole Top Cap
Pole Top Cap
Handgrip Tab
Handgrip
For Displays with 100mm x 100mm
(4” x 4”) mounting hole patterns
M4 Display Mounting Screws
F Leave the “User Operating Card” with Visidec Focus Articulated Arm Double
Leave the “User Operating Card” secured to the base of Visidec Focus Articulated Arm Double with the “atdec”
logo facing upwards.
*To insert Cable Covers:
Insert tabs
Double Arm
Assembly
Step 4: Insert cables into
slot, using cable balls to hold
them in place (single user only)
- see note. Cable
Balls (x2)
Step 5: Attach remaining
cables that do not fit into the
slot with the two supplied
cable clips.
Push in...
...and then up
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 13.02.08 ©
