CMX42AB USER MANUAL
01
contact support@blustream.co.uk / support@blustream.com.au
User Manual
CMX42AB
Our Contractor CMX42AB 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing
distribution of four HDMI sources to two displays. This enables all sources to be viewed seamlessly as
required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz
4:4:4/HDR. The 4-Way matrix also includes audio breakout and EDID management.
Introduction
Key Features:
• Features 4x HDMI inputs which can be independently routed up to two HDMI outputs
• Supports 4K UHD video (up to 4K @60Hz 4:4:4/HDR)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and
DTS-HD Master Audio transmission
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• Control via front panel, IR and RS-232
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP 2.2 compliant
CMX42AB USER MANUAL
02 www.blustream.co.uk

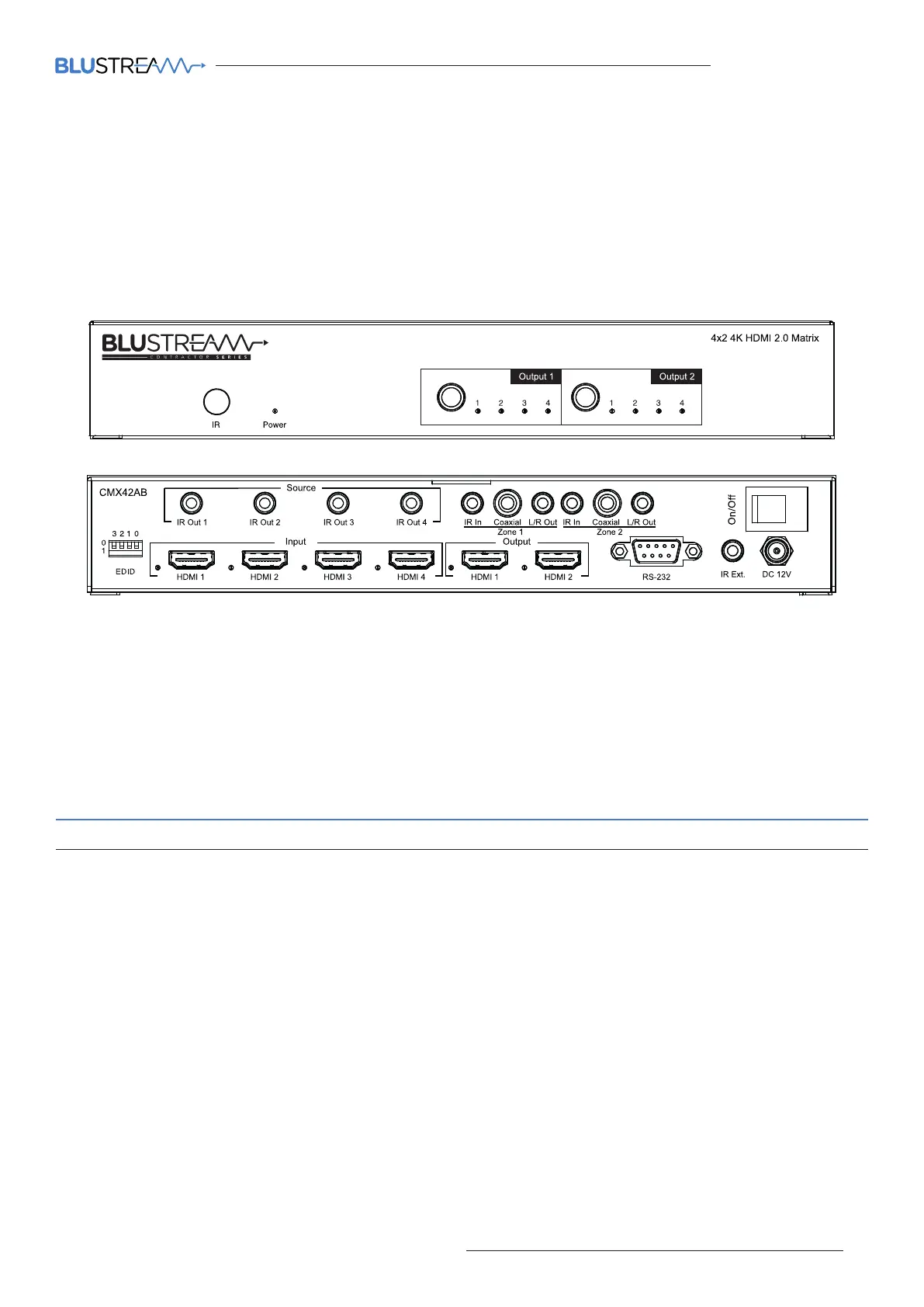

Panel Description
Front Panel:
IR receiver window for matrix control
Power LED indicator
HDMI output selection buttons 1-2. Press to scroll through source inputs per HDMI output
1
2
3
1 2
Rear Panel:
The EDID configuration can be altered using the
dip-switches located on the rear panel of the
matrix.
Please see adjacent table for EDID settings.
Note: You must power-cycle the HDMI switcher
aer changes have been made in order for the EDID
settings to update.
Adjusting The EDID Settings
EDID Dip-switches
[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM
[DIP]=0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
[DIP]=1111: Soware Control EDID
EDID Dip-switches
3
14139 10 12
8
4
11
6 7
5
IR output - 3.5mm mono jack provides routed IR emitter
output for discrete control of sources
IR input - 3.5mm stereo jack provides zone specific
routed IR receiver input
Coaxial digital audio output - RCA (SPDIF)
Analog L/R audio output - 3.5mm stereo audio jack,
Supports 2 channel PCM only
Power on/o switch
EDID DIP switch - Used to manage the video and audio
resolution output by the connected source device.
HDMI inputs - connect to HDMI source devices
HDMI outputs - connect to HDMI display devices
RS-232 Serial port - For control of switcher by third party
control devices
IR control - IR input for switcher control. Connect 5V Blus-
tream IR receiver
Power port - Use included 12V/2A DC power adaptor
4
7
9
510
11
6
8
12
13
14
CMX42AB USER MANUAL
03
contact support@blustream.co.uk / support@blustream.com.au
RS-232 Serial Control
BLUSTREAM RS-232 REMOTE CONTROL
CONSOLE
PIN Assignment PIN Assignment
1 NC 1 NC
2 2 Tx Rx
3 3 Rx Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
Audio Breakout
The Matrix includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital outputs.
Extracted audio will be concurrent with the corresponding HDMI video output. Note: Source input must be PCM 2ch audio for
analogue audio outputs to work. The Matrix does not down-mix multichannel audio signals.
Coaxial digital output - Output 1
Analogue fixed line level output 3.5mm stereo jack - Output 1
1 2
The Matrix can be controlled via 9-pin serial RS-232 cable.
RS-232 COMMAND DESCRIPTION
? Print Help Information
HELP Print Help Information
STATUS Print System Status And Port Status
PON Power On, System Run On Normal Sta
POFF Power O, System Run On Power Save State
IRON/OFF Set System IR Control On Or O
KEYON/OFF Set System KEY Control On Or O
BEEPON/OFF Set Onboard Beep On Or O
LEDON/OFF Set Front Panel LED Always On
or Auto Turn O in Power On State
RESET Reset System To Default Setting (Type “Yes” To Confirm, “No” To Discard)
OUTxxFRON/OFF
OUTxxFRyy
Set OUTPUT:xx On or O
Set OUTPUT:xx From INPUT:yy
xx=00: Select All OUTPUT Port
xx=[01...02]: Select One OUTPUT Port
yy=[01...04]: Select One INPUT Port
EDIDxxCPyy
EDIDxxDFzz
xx=00: Select All INPUT Port
xx=[01...04]: Select One INPUT Port
yy=[01...02]: Select One OUTPUT Port
zz=00: HDMI 1080p@60Hz, Audio 2CH PCM
zz=01: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY
zz=02: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD
zz=03: HDMI 1080i@60Hz, Audio 2CH PCM
zz=04: HDMI 1080i@60Hz, Audio 5.1CH DTS/DOLBY
zz=05: HDMI 1080i@60Hz, Audio 7.1CH DTS/DOLBY/HD
zz=06: HDMI 1080p@60Hz/3D, Audio 2CH PCM
zz=07: HDMI 1080p@60Hz/3D, Audio 5.1CH DTS/DOLBY
zz=08: HDMI 1080p@60Hz/3D, Audio 7.1CH DTS/DOLBY/HD
zz=09: HDMI 4K@30Hz 4:4:4, Audio 2CH PCM
zz=10: HDMI 4K@30Hz 4:4:4, Audio 5.1CH DTS/DOLBY
zz=11: HDMI 4K@30Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD
zz=12: DVI 1280x1024@60Hz, Audio None
zz=13: DVI 1920x1080@60Hz, Audio None
zz=14: DVI 1920x1200@60Hz, Audio None
zz=15: User EDID 1
zz=16: User EDID 2
zz=17: GUI Download EDID
zz=18: HDMI 4K@60Hz 4:2:0, Audio 2CH PCM
zz=19: HDMI 4K@60Hz 4:2:0, Audio 5.1CH DTS/DOLBY
zz=20: HDMI 4K@60Hz 4:2:0, Audio 7.1CH DTS/DOLBY/HD
zz=21: HDMI 4K@60Hz 4:4:4, Audio 2CH PCM
zz=22: HDMI 4K@60Hz 4:4:4, Audio 5.1CH DTS/DOLBY
zz=23: HDMI 4K@60Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD
1
2
