Sida 1/32

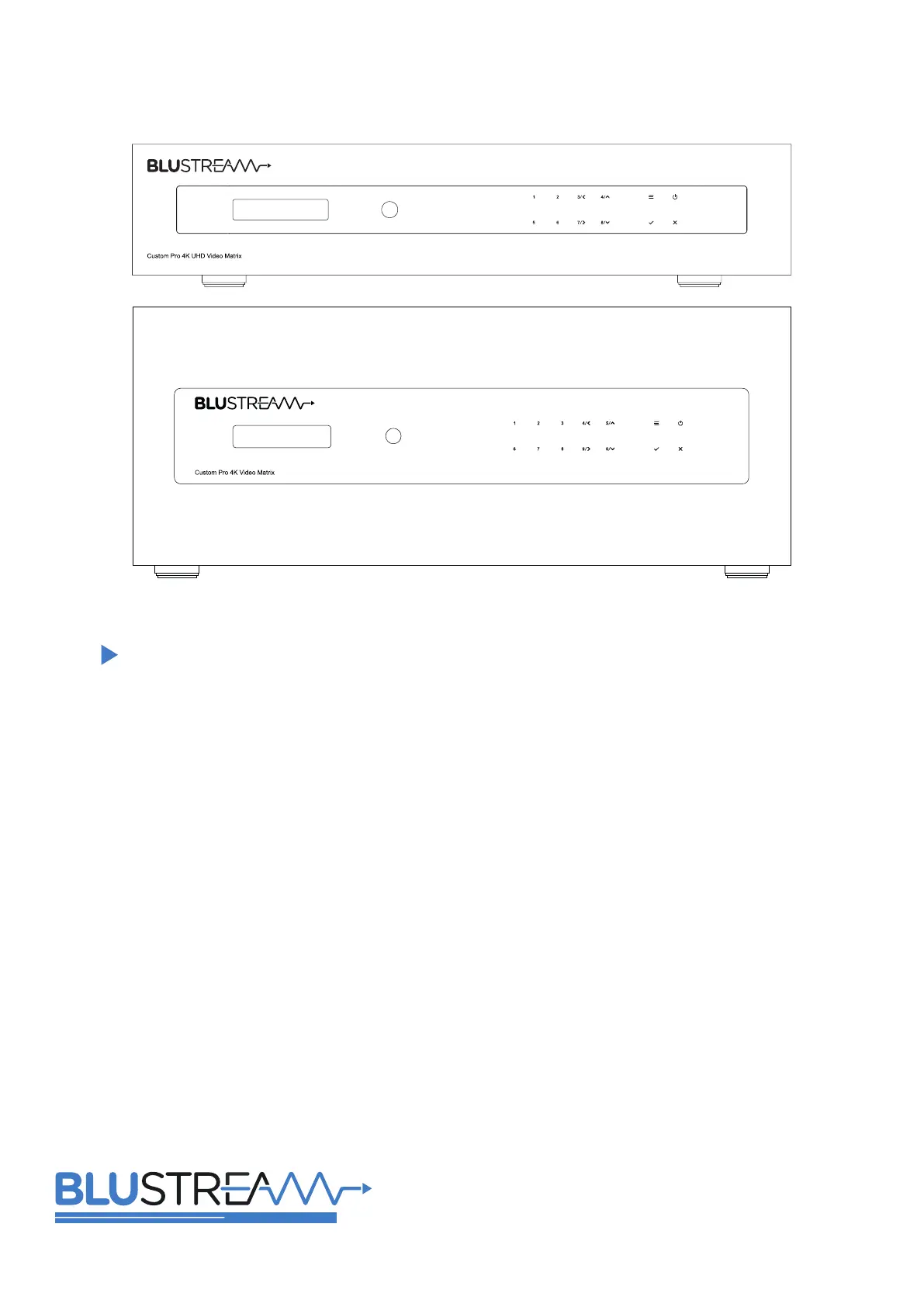

C U S T O M P R O
Custom Pro Matrix
User Manual
RevA5_Custom_Pro_Matrix_User_Manual
02 www.blustream.co.uk www.blustream.com.au |
CUSTOM PRO MATRIX USER MANUAL
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please save /
keep this manual for future reference.
Surge Protection Device
Recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc. Use
of surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Safety &
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using
TE CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimise interference of the
unshielded twisted pairs in the
CAT5e/6/6a cable do not run the
HDBaseT / CAT5e/6/6a cabling with ™
or in close parallel proximity to mains
power cables.
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved
replacement.
Do not disassemble either the
Transmitter or Receiver units for
any reason. Doing so will void the
manufacturer’s warranty.
Introduction & Key Features 03
Modular Matrix Options Overview 03
Panel Descriptions - 8x8 Chassis 04
Panel Descriptions - 16x16 Chassis 05
Modular Options - Main Communication Board 06
Modular Options - Input Boards 07 - 08
Modular Options - Output Boards 09 - 11
Automatic Smart Scaling Functionality in CSC 11
Modular Options - Feature Boards 12
Installing Modular Matrix Boards 13
HDBaseT™ Transmitter & Receiver Options 14
Matrix Front Panel Control 15
Advanced EDID Management 16
Terminating CAT Cables for use with HDBaseT™ 16
Understanding the HDBaseT™ Status LED’s 17
Audio Functionality 18
Infrared Distribution 19
Infrared Control 20
Example Schematic - 8x8 Chassis 21
Example Schematic - 16x16 Chassis 22
Specifications, Package Contents & Maintenance 23
Infrared Commands - 8x8 Matrix 24 - 25
Infrared Commands - 16x16 Matrix 26 - 27
RS-232 and Telnet Commands 38 - 30
Certifications 31
Notes 32
03
contact support@blustream.co.uk support@blustream.com.au|
CUSTOM PRO MATRIX USER MANUAL
Introduction
The Blustream Custom Pro matrix series achieves new levels of performance and flexibility. AV installers can now
easily specify their desired I/O structure and choose the additional control features required for a specific project.
The Custom Pro matrix chassis’ have been specifically designed to operate in challenging AV environments. The
robust housing and interlocking board configuration make both installation and maintenance a seamless experience.
Advanced features include audio breakout, IR routing, HDBaseT™ inputs, simultaneous HDBaseT™ / HDMI outputs, RS-
232 pass through and a web browser interface module for control and configuration of the matrix (subject to I/O card
specification).
• 2-way and 4-way interchangeable input & output boards
• Optional control boards: IR routing (8x8 chassis only), zone audio breakout, RS-232 pass-through to supported
HDBaseT receivers™
• Supports 4K UHD video up to 70m (4K @60Hz 4:4:4) and up to 100m 1080p using HDBaseT™ distribution for all 2nd
generation HDMI2.0 and HDBaseT™ CSC input / output boards (subject to output board specifications)
• Web browser interface for control and configuration of the matrix
• Control via front panel, IR, RS-232, TCP/IP, and iOS / Android apps (search: ‘Blustream Matrix’)
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• 3rd party drivers available for major control brands - refer to Blustream website for more details
• Advanced EDID management
• HDCP 2.2 compliant
Fe
Fe
Fe
Feature & Control Bo
ature & Control Bo
ature & Control Bo
ature & Control Boards
ards
ards
ards Feature & Control Boards
PRO-8IR* 8-Way IR Control Board (5V IR only)
PRO-8IR-V2* 8-Way IR Control Board w. 5V & 12V IR
PRO-8RS232 8-Way RS-232 Breakout Board
PRO-8AB 8-Way Audio Breakout Board
PRO-8AB-V2 8-Way Audio Breakout Board w. LL Volume
Modular Matrix Options Overview
Key Features
The Custom Pro series allows AV integrators to easily specify their desired input / output structure, choosing the
additional control features as required for a specific project. The available modular board options are shown below:
18Gbps Video Output Boar
18Gbps Video Output Boar
18Gbps Video Output Boar
18Gbps Video Output Boards (4K 60Hz 4:4:4)
ds (4K 60Hz 4:4:4)
ds (4K 60Hz 4:4:4)
ds (4K 60Hz 4:4:4)18Gbps Video Output Boards (4K 60Hz 4:4:4)
PRO-OUT2H-V2 2-Way HDMI 2.0 Output Board
PRO-OUT4H-V2 4-Way HDMI 2.0 Output Board
PRO-OUT2TCS 2-Way HDBaseT™ CSC Output Board (100m 1080p)
PRO-OUT4TCS 4-Way HDBaseT™ CSC Output Board (100m 1080p)
PRO-OUT4HTCS 4-Way HDBaseT™ CSC / HDMI Output Board (100m
1080p)
PRO-OUT2TL-V2 2-Way HDBaseT™ CSC Output Board (70m 1080p)
PRO-OUT4TL-V2 4-Way HDBaseT™ CSC Output Board (70m 1080p)
PRO-OUT4TLS-V2 4-Way HDBaseT™ CSC / HDMI Output Board (70m 1080p)
Chassis
Chassis
Chassis
ChassisChassis
CUSTOMPRO-HUB Custom Pro Matrix Hub (8x8)
CUSTOMPRO-HUB16 Custom Pro Matrix Hub (16x16)
18Gbps Video Input Boar
18Gbps Video Input Boar
18Gbps Video Input Boar
18Gbps Video Input Boards (4K 60Hz 4:4:4)
ds (4K 60Hz 4:4:4)
ds (4K 60Hz 4:4:4)
ds (4K 60Hz 4:4:4)18Gbps Video Input Boards (4K 60Hz 4:4:4)
PRO-IN2HAB 2-Way HDMI 2.0 Input Board w. Audio B/O
PRO-IN4HAB 4-Way HDMI 2.0 Input Board w. Audio B/O
PRO-IN2H2V 4-Way HDMI 2.0 & VGA Input Board
PRO-IN2H2TCS 2-Way HDBaseT™ & HDMI 2.0 Input Board
* IR control boards are included within the CUSTOMPRO-HUB16
Please note that the legacy (HDMI1.4, HDBaseT 4K 60Hz 4:2:0) Custom Pro ™
input and output boards are not included within this user guide. Please contact
your authorised Blustream distributor or reseller for further information.
