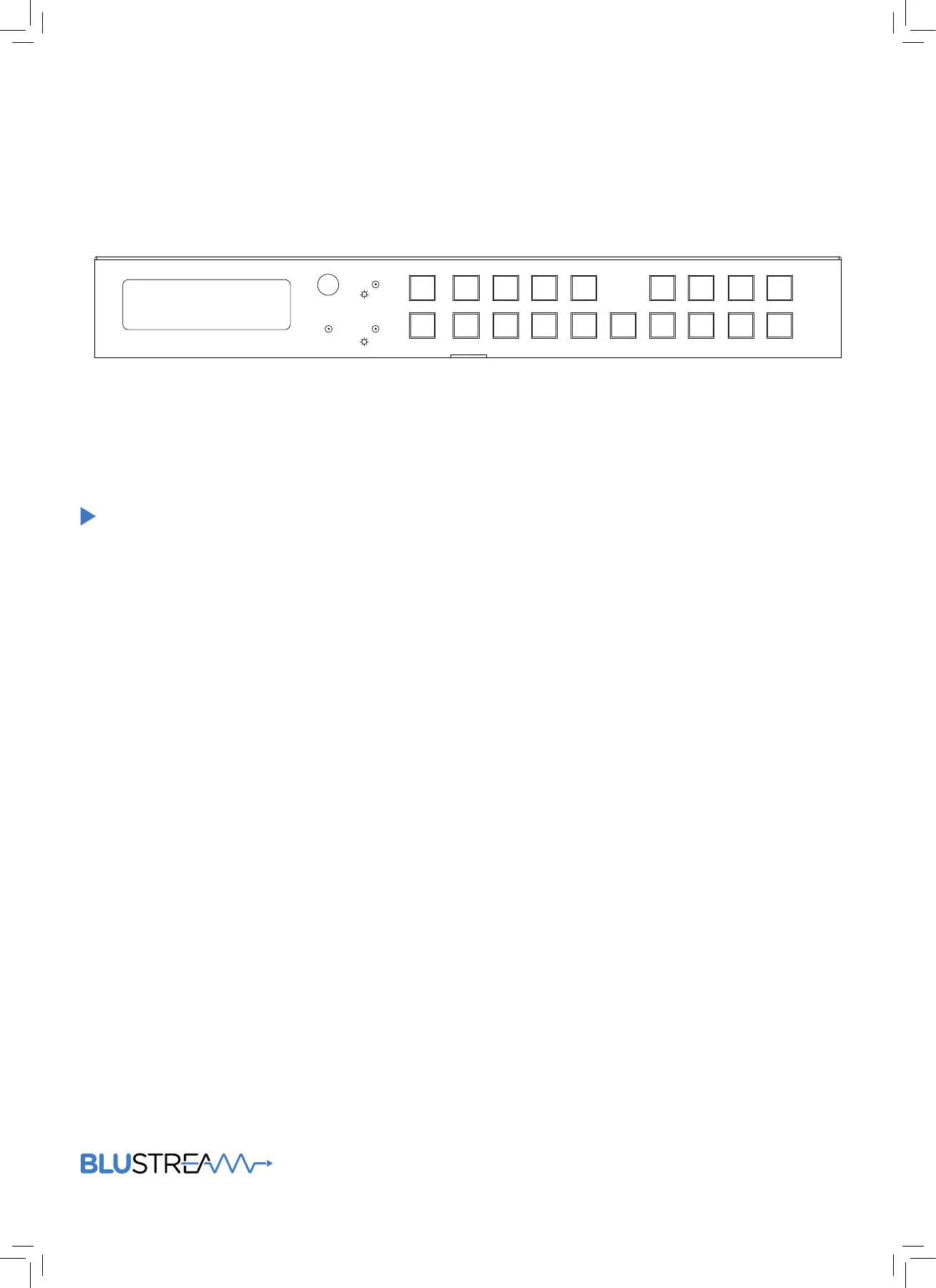

MFP72
User Manual
Mode HDMI 1 HDMI 2 HDMI 3 HDMI 4
HDMI 1 HDMI 2 HDMI 3 HDMI 4
L/R In
Power
IR
Dual
Switcher
Embed VGA YPbPr
Format Menu
AV Down Esc
EnterUp
MFP72 USER MANUAL
02
www.blustream.co.uk
Features
03
Panel Descriptions
04/05
Remote Control Descriptions
05
IR Distribution
06
Matrix Front Panel
07
Adjusting The Video Output Resolution 08
EDID Configuration
09
Application Diagram
10
Specifications
11
Package Contents
11
Maintenance
11
RS-232 Information
12
RS-232 Commands
13/14
Infrared Commands
15/16
Notes
17
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Surge protection device
recommended
This product contains sensitive electri-
cal components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Safety And
Performance Notice
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved replace-
ment.
Do not disassemble Blustream hard-
ware for any reason. Doing so will void
the manufacturer’s warranty.
MFP72 USER MANUAL
03
contact support@blustream.co.uk / support@blustream.com.au
Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio
embedding, audio de-embedding and EDID management.
The MFP72 works in 2 modes, first as a 7 input dual-output switcher, alternatively each
output can work independently with output 1 routing the 4x HDMI inputs only and output
2 switching all 7 video/audio inputs.
With control of the switcher using the front-panel push buttons, IR remote control or
RS-232 interface it is an ideal solution for commercial installations.
Introduction
FEATURES:
• Switcher can function in 2 modes:-
mode - Both HDMI output 1 & 2 display the Splitter
same selected input.
mode - HDMI inputs are Matrix Switcher
independently switchable to HDMI outputs 1 & 2.
HDMI output 1 has access to HDMI inputs 1-4 (HDMI
signal pass-through including 4K resolution), whilst
output 2 has access to all HDMI and Analogue video
inputs with associated audio.
• Built-in video scaling, both up-scaling (maximum of 1080p)
and down-scaling capabilities (including 4K to lower
resolutions).
• Video inputs support industry standard video resolutions
including VGA-WUXGA and 480i-4K.
• Scaled video output resolutions include 720p, 1080p,
1280x1024, 1024x768, 1360x768, 1440x900 & 1680x1050.
• Audio embedding - Independent Analogue L/R audio input
can be embedded to HDMI outputs + Analogue L/R audio
and Coaxial digital outputs concurrently (Feature available
on HDMI outputs 1 + 2 in mode and HDMI output 2 Splitter
only in mode).Matrix Switcher
• HDMI audio breakout to Analogue L/R audio and Coaxial
digital outputs concurrently (linked to HDMI output 2 when
in mode).Matrix Switcher
• Volume control of HDMI, Analogue L/R audio and Coaxial
digital outputs.
• Supports all known HDMI audio formats on HDMI pass-
through, including Dolby TrueHD, Dolby Atmos, Dolby
Digital Plus and DTS-HD Master Audio transmission.
• Front panel display for status feedback.
• Control via front panel, IR and RS-232.
• 3rd Party drivers available for all major home control
brands.
• Advanced EDID management.
• HDCP compliant.
