MFP112
User Manual

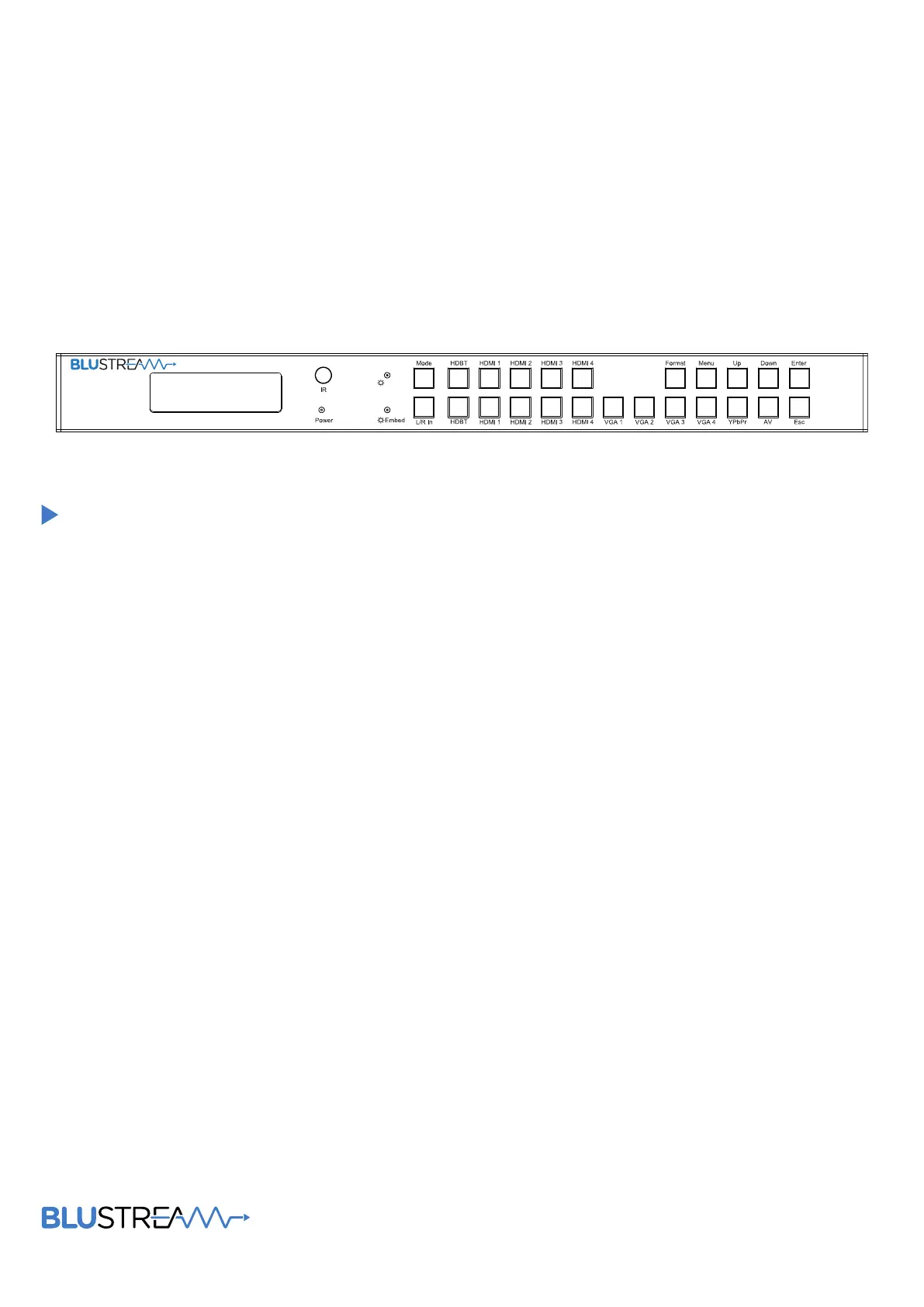

11 Input Multi-Format Presentation Switch
Matrix
Switcher
MFP112 USER MANUAL
02 www.blustream.co.uk
Features 03
Panel Descriptions 04/05
MFP112 Control Ports 06
Remote Control Descriptions 07
HDBaseT Receiver Options 08
HDBaseT Transmitter Options 09
Terminating HDBaseT CAT Cable 10
Understanding HDBaseT Status Lights 10
IR Distribution 11
Switcher Front Panel Display 12
Adjusting The Video Output Resolution 13
EDID Configuration 14
Application Diagram 15
Specifications 16
Package Contents 16
Maintenance 16
RS-232 Commands 17/18
Infrared Commands 19/20
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Surge protection device
recommended
This product contains sensitive electri-
cal components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimize interference of the un-
shielded twisted pairs in the CAT5e/6
cable do not run the HDBaseT /
Cat5e/6/6a cabling with or in close par-
allel proximity to mains power cables.
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved replace-
ment.
Do not disassemble Blustream hard-
ware for any reason. Doing so will void
the manufacturer’s warranty.
MFP112 USER MANUAL
04 www.blustream.co.uk
12 13 14 16 18 19 20
1 LCD display - Shows the status of
input-output selection, EDID info etc.
2 IR receiver window.
3 Matrix Switcher LED indicator -
When the LED is lit, Matrix Switcher
mode is active and both HDMI
outputs switch independ ntly. e
When the LED is not lit the Matrix
switcher is in mode and Splitter
both HDMI outputs will display the
same selected video input.
4 Mode button - Press to switch
between and Matrix Switcher
Splitter modes.
5 HDBaseT input selection button
for HDMI output 1 when in Matrix
Switcher mode.
6 HDMI input selection buttons for
HDMI output 1 when in Matrix
Switcher mode.
7 Format set button - Press to change
the output resolution.
8 Menu button - Press to enter EDID
set mode, volume setting or F/W
information.
9 Up selection button - Press to
change segment’s value.
q Down selection button - Press to
change segment’s value.
w Enter button - Press to confirm the
settings.
e Power LED indicator - Indicate the
status of power.
r Embed LED indicator - When the
LED is lit, mode Audio embed
is active. When active the L/R
Analogue input will be embedded
onto the HDMI/HDBaseT outputs.
In mode analogue audio Splitter
is embedded to both of the HDMI/
HDBaseT outputs with the ability
to adjust the volume. In Matrix
Switcher mode Analogue audio
will only be embedded onto
HDBaseT output 2.
t L/R in selection button - Press to
embed the Analogue L/R audio
input to the HDMI/HDBaseT
outputs (as above).
y HDBaseT input selection button -
Press to select the HDBaseT input
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in mode.Splitter
u HDMI input selection buttons 1 to
4 - Press to select the HDMI input
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in mode.Splitter
i VGA input selection buttons 1 to 4
- Press to select the VGA input with
associated Analogue L/R audio
switched to output 2 in Matrix
Switcher mode, or both HDMI/
HDBaseT outputs in mode.Splitter
o YPbPr (Component video) input
selection button - Press to select
the YPbPr input with associated
Analogue L/R audio input.
p AV input selection button - Press
to select the Composite video AV
input with associated Analogue L/R
audio input.
a ESC-Press to exit the menu.

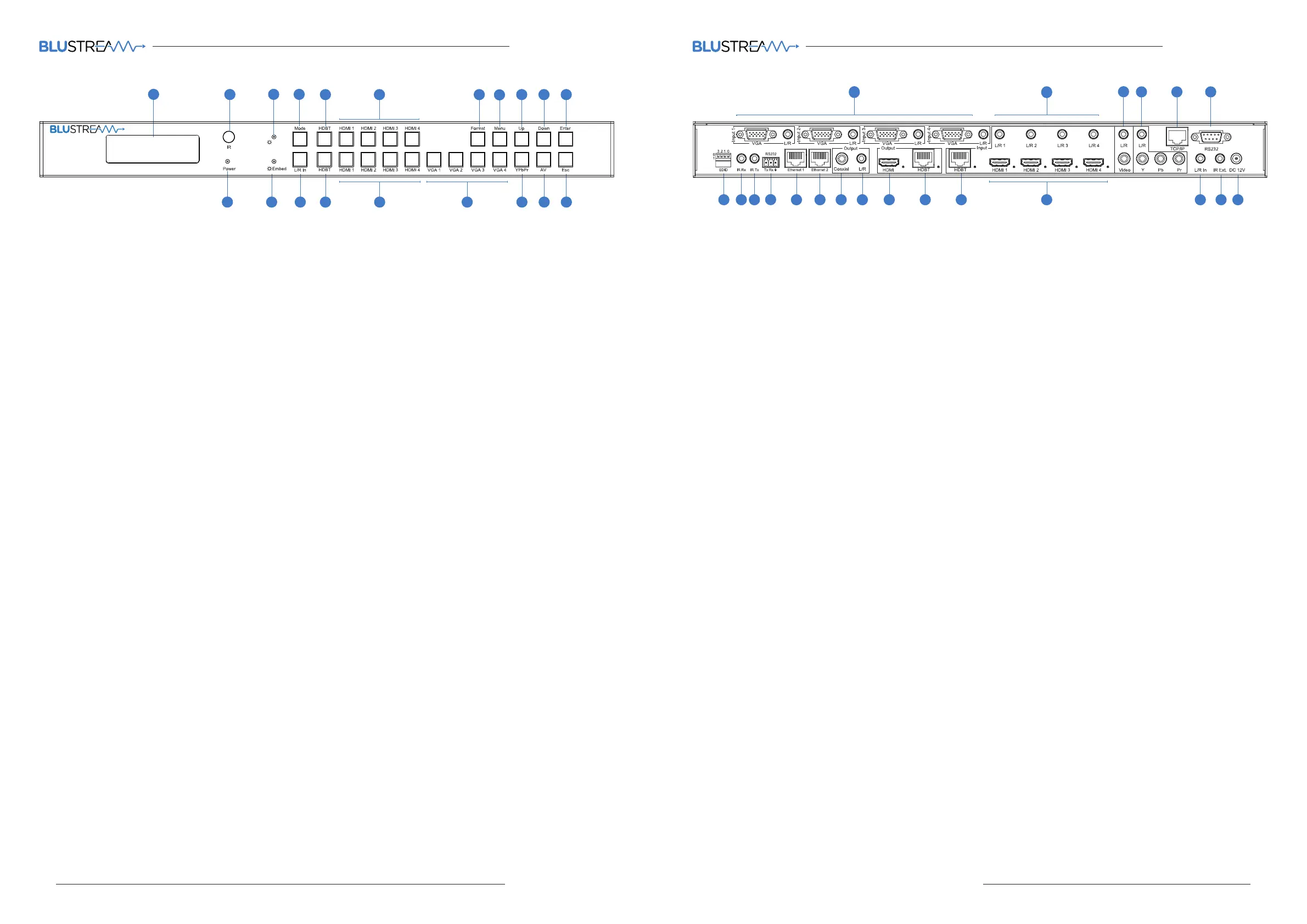

Front Panel
1 2 3 4 7 8 9 106
Notes:
• Volume can be changed using IR, TCP/IP & RS-232 control or from the front panel UP and DOWN buttons when in the volume
menu.
5 11
15 17
11 Input Multi-Format Presentation Switch
Matrix
Switcher
