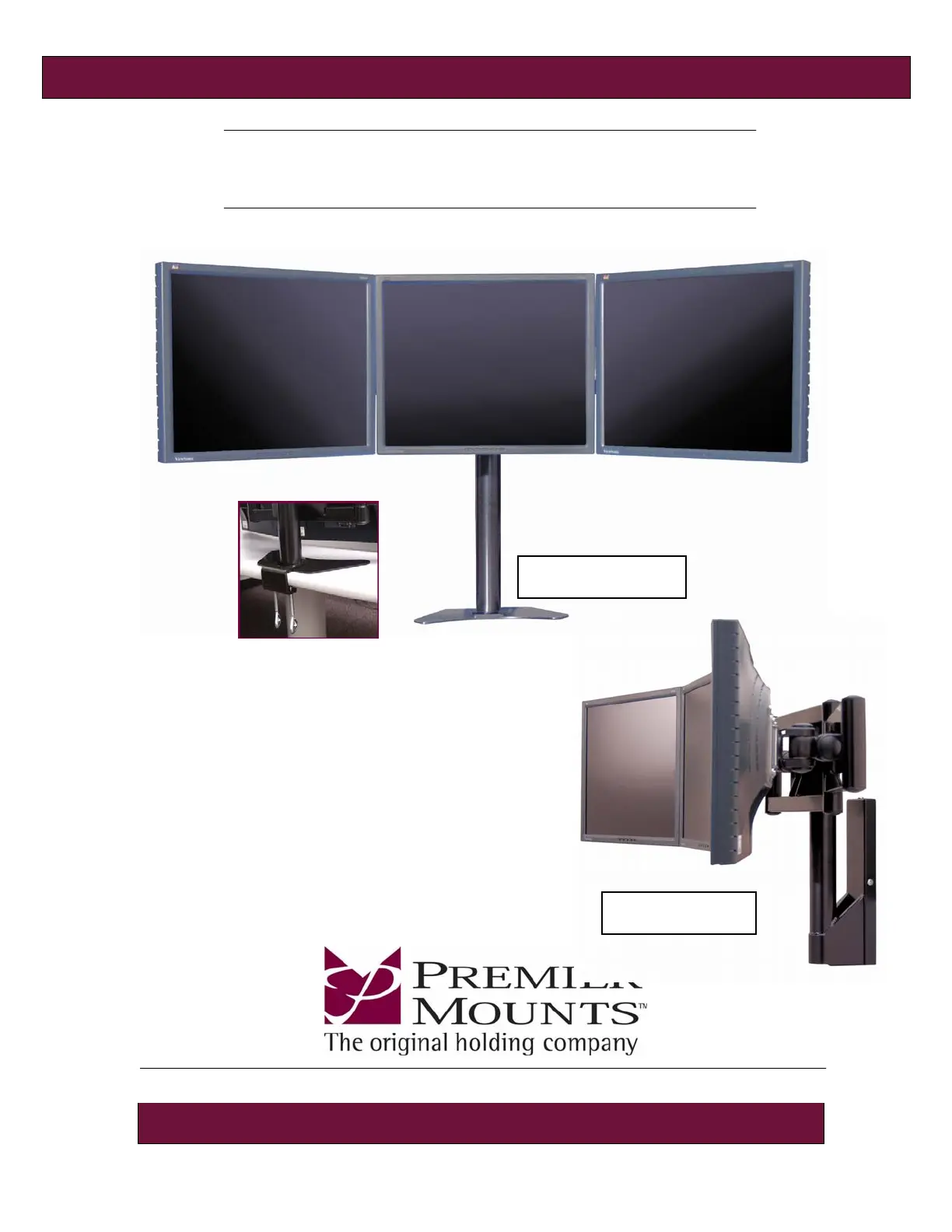

MULTI-MONITOR MOUNT
FLAT PANEL DISPLAY MOUNT
I N S T A L
L
A
T
I
O
N
M
A
N
U
A
L
www.mounts.com
3130 E. Miraloma Ave. Anaheim
,
CA 92806 Phone: 800 368-9700 Fax: 800 832-4888
Model # MMT
Model # MMW
9531-010-901-00
- 2 -
- Assembly drawing
- Parts list
- Mounting the table top stand
- mounting LCD monitor to multi-mount assembly
- Threading cables through post
- Mounting Multi-Monitor assembly to the wall
- Making adjustments to the Multi-Monitor assembly
Contents
WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper
safety gear and tools for the installation procedure to prevent personal injury.
The wall structure or table top must be capable of supporting at least five (5) times the weight of the flat panel(s). If not, the
wall or table top must be reinforced. Proper installation procedure by qualified personnel as outlined in the installation
instructions must be adhered to. Failure to do so could result in serious personal injury.
The entire installation instructions should be fully read and understood, including all of the safety symbols and safety
precautions, before beginning installation. The installation instructions should be read, understood and followed to prevent
personal injury or property damage. Keep these installation instructions in an easily accessible location for future reference.
Indicates that the power plug is to be disconnected
from the power outlet.
Safety precautions must be taken at all times.
Contact Premier Mounts for an
y
q
uestions
Warning and caution in general
A secured structure wooden stud wall must always support the weight or load of the flat panel(s). Always confirm the
center of the wood stud before beginning the installation.
Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in flat
panel(s) cracking or falling from the wall causing damage and injury.
Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy. Failure
to do so may result in damage to the flat panel(s) and could cause a risk of fire.
Mounting structure recommended wood studs, solid-flat concrete, and reinforced metal studs. If installing the mount on
other than wood studs use (commercially available) suitable hardware.
- 3 -
13.53
4.71
18.53
Ø2.00
(1143)
45.00
4.87
( )343.66
( )119.63
( )473.2
(50.8)
(123.7)
A
B
24.00
(609.6)
3.20
(81.28)
1.60
(40.64)
D
C
A
4.87
45.00
(1143)
7.50
(190.5)
.13
(3.3)
Ø2.00
(50.8)
(123.7)
B
A
B
A
E
E
B B B
A
F
Model: MMT
Model: MMW
Description
A. Adjustable Multi-Monitor assembly
B. Flat Panel Mounting brackets VESA
75/100
C. Removable desk clamp
D. Adjustable safety knob
E. Wall mount
Dimensions are in Inches and
(
mm
)
Assembly drawings
B
C
B
B
