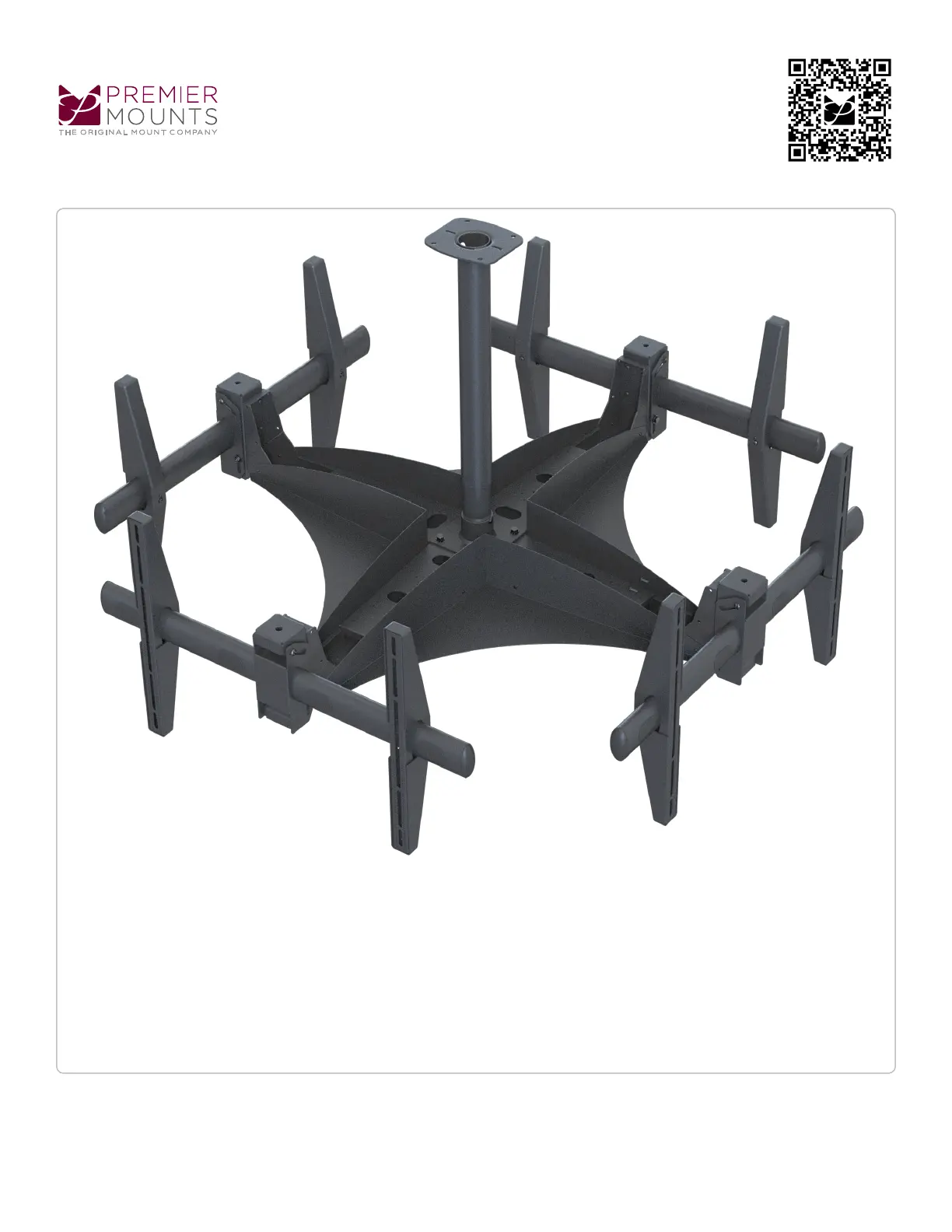

Elliptical Ceiling Mount for 37˝ to 63˝ Flat Panels
Model: ECM-4000
9531-000-000-0X Rev.0
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
1321 S. State College Blvd., Fullerton, CA 92831 USA
Warranty, Garantie, Garantía, Garanzia, Garantie, Waarborg: http://www.mounts.com/warranty
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
ECM-4000
AST-2446/2
Lower Half
Upper Half
M8 Pan
Philips
Screw
Allen Wrench
Minimum four (4)
complete turns
Pan Philips
Threaded
Coupler
Mount
Lower Half
Upper Half
The ceiling should be capable of supporting a weight of at least ve times
the product weight. If not, the ceiling surface must be reinforced. Proper
installation procedure by qualied personnel as outlined in the installation
instructions must be adhered to.
Mounting hardware is not included with this product. Commercially
available hardware must be used for this installation. The hardware used
will depend on your installation environment (i.e. wood stud, concrete
surface, metal I-beam etc).
Separate the upper and lower halves of the AST-2446/2 by removing both
M8 screws and wave washers. Unpack the trio mount and place it on the
ground.
The set screw on the threaded coupler must be backed out in order for the
AST-2446/2 to be threaded into place.
Thread the lower half of the AST-2446/2 into the threaded coupler on the
trio mount. The lower half of the AST-2446/2 must be threaded fully until
the piece is safely secured to the threads, then tighten the screw back into
place. Use the screwdriver to tighten the set screw once the AST-2446/2
has been attached.
The following steps must be performed by a minimum of three people:
Two people lift the trio mount into place. Align the upper and lower halves
of the AST-2446/2. Slide the lower half/trio mount into the upper half of the
AST-2446/2.
It is recommended that the height, and location, of the ECM-3000 be
determined prior to performing the following steps.
Determine the mounting height. Align the M8 mounting holes on the upper
and lower halves of the AST-2446/2 and insert the M8 screws and wave
washers. Use the 516˝ wrench to tighten the M8 screws.
Verify that all hardware is secure and tight before proceeding to the next
section.
Mounting
Bracket Arms
Decorative
Covers
Elliptical
Tilt Mount
Quad Mount
Structure side Skirt Thread Depth
Indicator
M6 x 25mm
5
32˝ Allen Wrench
M4 x 16mmM4 x 25mm M5 x 16mm M5 x 25mm
M6 x 30mm M8 x 25mm M8 x 30mm M8 x 70mm
Griplate™
Washers
AST-2446/2
x24
M8 x 16mm
M4 x 30mm M5 x 30mm M6 x 16mm
M6 x 45mm M8 x 45mm
Universal Spacers
x1 x1 x4 x8 x8
x24
x4 x1
x24x24 x24 x24
x24 x24 x24 x24 x32
x1
x24 x24 x24
x98
x24 x24
1
Required for installation
Included components
Max Flat-Panel Capacity: 80 lb. each
Inverted
Projector
Figure 1
Figure 2 Figure 3
Thread Depth
Indicator
Thread Depth
Indicator
Depth MarkDepth Mark
Thread Depth
Indicator
Threaded
Insert
Marking the
Depth
ScrewScrew
M8
M6
M5
M4
Warranty: http://www.mounts.com/warranty
Garantie, Garantía, Garanzia, Garantie, Waarborg
Updates: The most up-to-date installation
guides can be found at mounts.com
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105
9531-0 0 0 -000 -0X Rev. 0
2
3
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
ECM-4000
Premier Mounts’ Griplate™ Washers are designed to accom-
modate the various M4, M5, M6 and M8 hole sizes required
by flat panels.
Do not place excessive pressure on the back of the flat
panel, as this may damage your flat panel.
The Griplate™ Washer must be installed between the head
of the mounting screw and the mounting bracket as shown.
Does your flat panel have:
Recessed mount points?
Uneven mount points?
A cur ved back?
Any obstruction near the mount point?
If Yes, you must install nylon spacers. Remove the mount-
ing brackets, Griplate™ washers, and mounting screws from
the back of the flat panel.
Insert the Thread Depth Indicator into the thread inserts
found on the bottom or top of the projector. Use a pencil to
mark the depth of the thread insert on the Thread Depth In-
dicator, as shown. Insert the Thread Depth Indicator into the
remaining thread inserts to compare and verif y their depth.
Locate the correct diameter screw for the thread insert.
If the screw you selected is longer than the mark on the
Thread Depth Indicator, as shown in Figure 2 and Figure 3,
do not use this screw. The screw length must not bypass
the mark.
Select another screw length until you find a screw that
comes closest to the mark without going past the mark.
Test each size of the screws provided.
The correct screws should thread easily into the mount point
and not pull out when tension is applied.
The optional M3 flat washers may be used to decrease the
screw depth of either the M2.5 x 12mm screws or the M3 x
16mm screws. Decrease the screw depth by placing an M3
flat washer inside the leveling barrel and then inser ting the
mounting screw.
